Isis Metals is among the most well-respected producer and distributor of high-quality metal products in Manila, Philippines, with a specialization in Copper-Nickel Bars and Rods. For its remarkable craftsmanship and dependability, Isis Metals offers corrosion-proof and durable solutions designed for the marine, industrial, and engineering industries. Through the integration of advanced manufacturing technology with extreme quality control, the company ensures materials that can live up to today’s challenging applications. With vast experience in copper-nickel alloys, Isis Metals has emerged as the first choice supplier for applications demanding superior performance, strength, and accuracy. Customer satisfaction and product superiority continue to be the key drivers of our success.
Copper-Nickel Bars and Rods are usually manufactured in two primary alloy grades: 90/10 Cu-Ni (90% copper, 10% nickel) and 70/30 Cu-Ni (70% copper, 30% nickel). The 90/10 Cu-Ni alloy has good strength (≈240 MPa tensile) and superior corrosion resistance in marine environments. The 70/30 Cu-Ni alloy has higher tensile (up to 550 MPa) strength and better resistance to stress corrosion cracking and erosion. The two grades both have superior weldability, formability, and resistance to fatigue and are well suited for applications with dependable performance, mechanical stability, and durability in naval and industrial operations.
| Standards | ASTM B151 / ASME SB151 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI all International Standards |
| Diameter | Outside Diameter in the range of 4mm to 500mm |
| Width | 1m to 48″ |
| Hex Bars | 18mm – 57mm (11/16″ to 2-3/4″) |
| Square Bars | 18mm – 47mm (11/16″ to 1-3/4″) |
| Flat Bars | 1/2” to 10” in the thickness range of 2mm to 150mm |
| Wire Length | Max 12000 mm |
| Wire Diameter | 5.5 – 400 mm |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Types | Round, Square, Hex (A/F), Flat, Square, Rectangle, Billet, Ingot, Forging, Wire Bobbin, Wire Spool, Wire Rope, Spring Wires, Welding Wire, Coiled Wire Etc. |
| Metric | US Rods | ASTM/ Canadian | Japanese | ||||
|---|---|---|---|---|---|---|---|
| Rods Size | Diam. (mm) | Rods Size | Diam. (Inch) | Rods Size | Diam. (mm2) | Rods Size | Diam. (mm) |
| 5 | 5 | #2 | 0.250 | 10M | 100 | 6 | 6 |
| 5.5 | 5.5 | #3 | 0.375 | 15M | 200 | 10 | 10 |
| 6 | 6 | #4 | 0.500 | 20M | 300 | 13 | 13 |
| 7 | 7 | #5 | 0.600 | 25M | 500 | 16 | 16 |
| 8 | 8 | #6 | 0.750 | 30M | 700 | 19 | 19 |
| 9 | 9 | #7 | 0.875 | 35M | 1000 | 22 | 22 |
| 10 | 10 | #8 | 1.000 | 45M | 1500 | 25 | 25 |
| 11 | 11 | #9 | 1.125 | 55M | 2500 | 29 | 29 |
| 12 | 12 | #10 | 1.250 | 32 | 32 | ||
| 14 | 14 | #11 | 1.375 | 35 | 35 | ||
| 16 | 16 | #12 | 1.500 | 38 | 38 | ||
| 18 | 18 | #13 | 1.600 | 41 | 41 | ||
| 20 | 20 | #14 | 1.750 | 44 | 44 | ||
| 22 | 22 | #15 | 1.875 | 48 | 48 | ||
| 25 | 25 | #16 | 2.000 | 51 | 51 | ||
| 28 | 28 | #18 | 2.250 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |

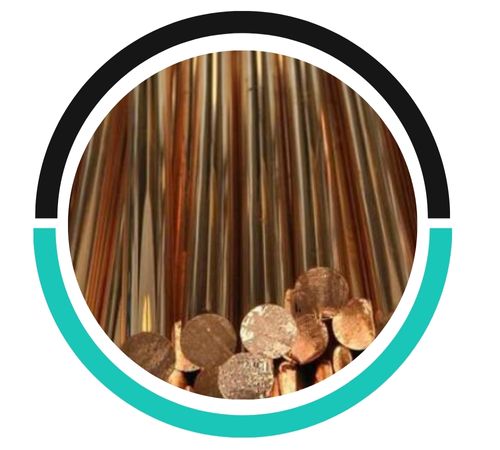

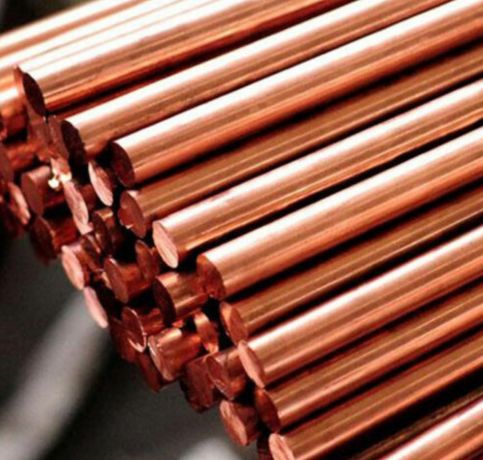

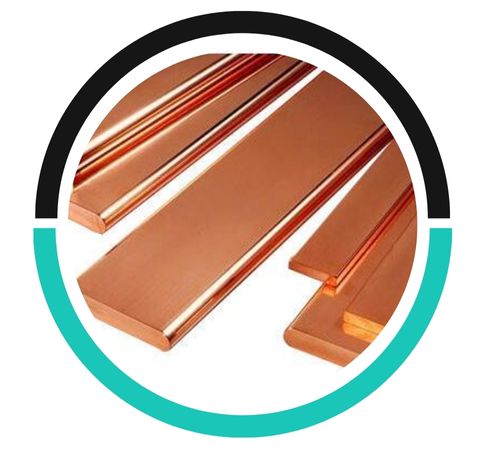

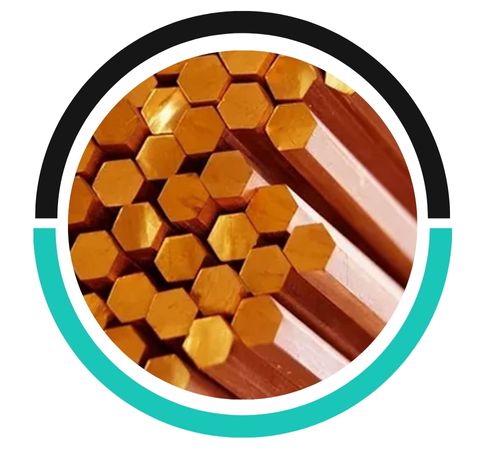

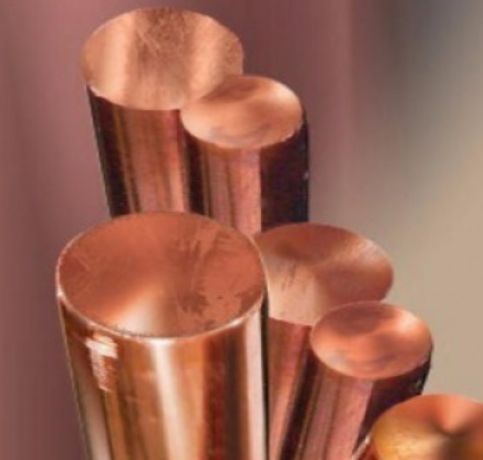

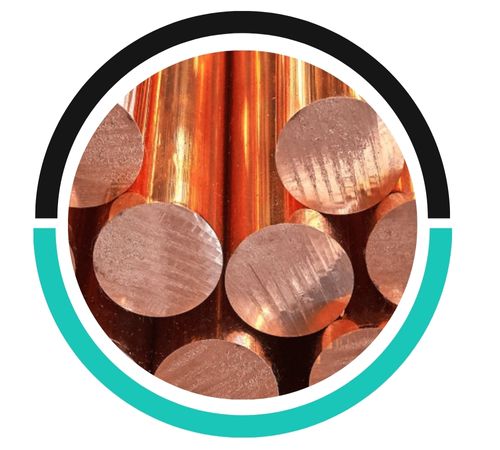

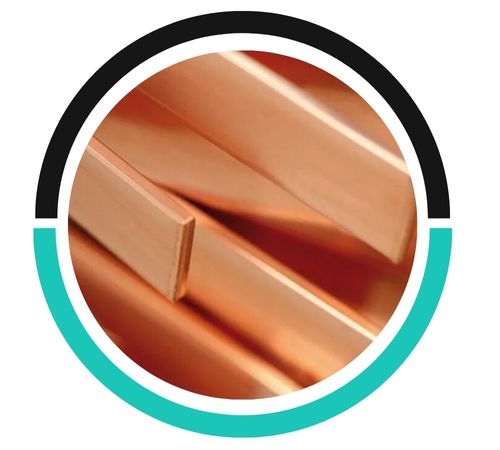

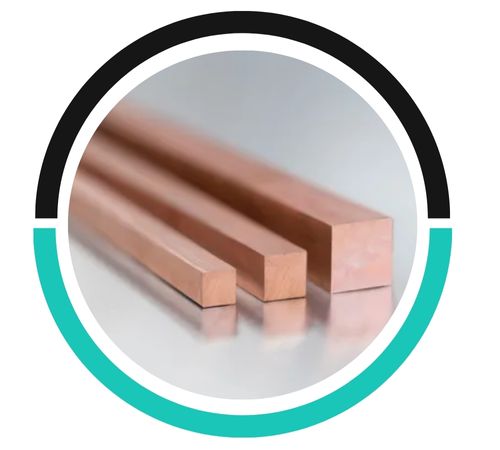

Copper-nickel bars and rods are available in various configurations, including round, square, hexagonal, and flat shapes. They come in different sizes, lengths, and grades, such as 90/10 and 70/30 Cu-Ni alloys.
Copper-Nickel Rods and Bars are extensively utilized in marine, industrial, and electrical applications because of their outstanding corrosion resistance and seawater durability. In the maritime industry, they are used in shipbuilding, piping for seawater, condensers, and heat exchangers employed in desalination plants. For naval vessels and offshore platforms, they provide better resistance to biofouling and cracking. In industrial systems, they find their application in pumps, valves, and heat exchanger elements that are subjected to corrosive environments. Moreover, they are perfectly suited for busbars, connectors, and switchgear in electrical systems due to their high electrical and thermal conductivity, which provides reliability under harsh conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Isis Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Manila, Philippines
