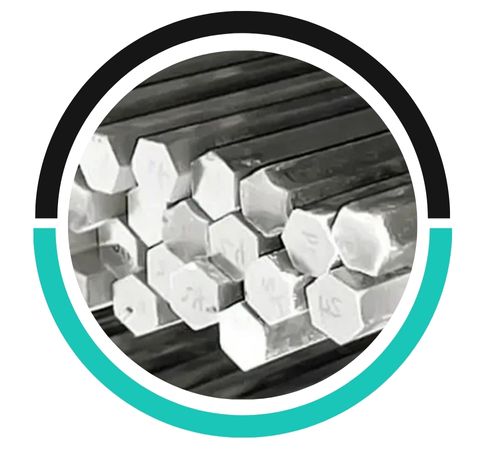

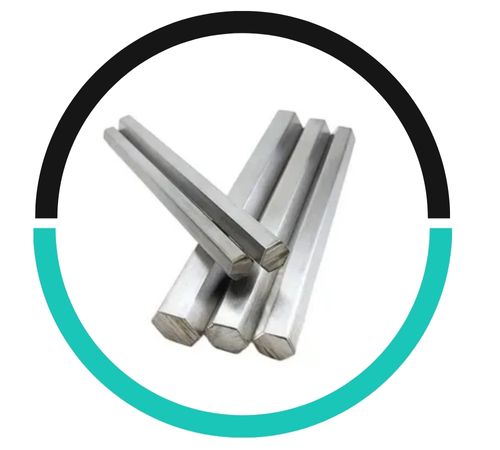

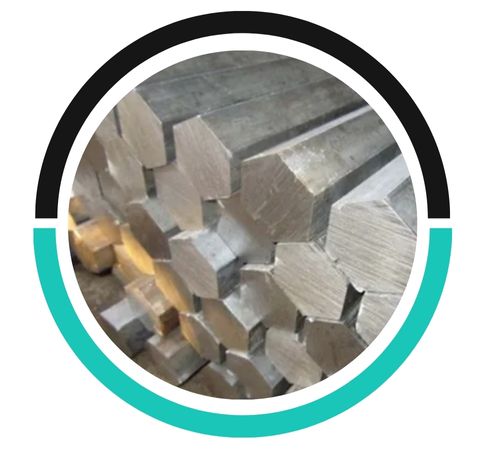

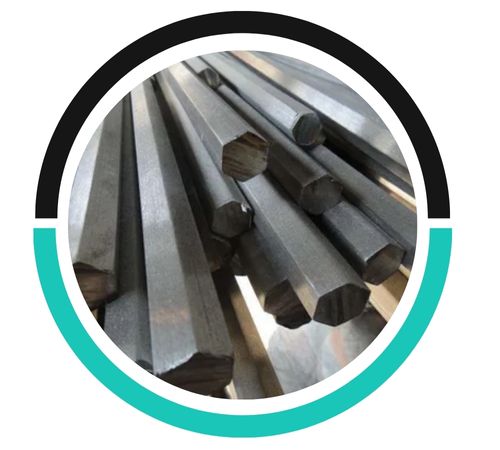

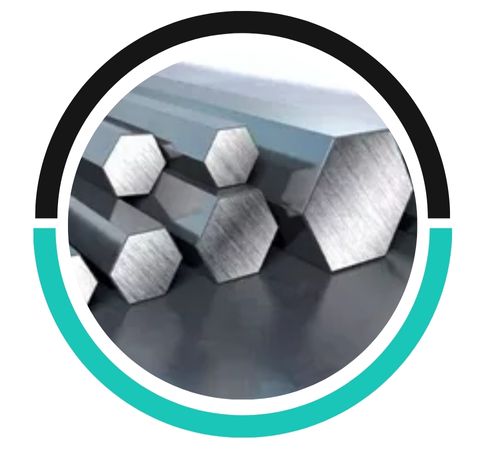

Isis Metals stands out as a top-notch manufacturer and supplier of **Aluminium Hex Bars and Rods** right from the heart of Manila, Philippines. They’re known for delivering high-quality aluminum products that boast lightweight strength, impressive corrosion resistance, and superb machinability. With cutting-edge production technology and rigorous quality control, Isis Metals guarantees that every hex bar and rod aligns with international standards for precision, durability, and performance. These products are crafted for high-strength, lightweight, and corrosion-resistant applications, making them a trusted choice across various industries in the Philippines and beyond, ensuring reliable, long-lasting performance for both structural and decorative purposes.
When it comes to **Aluminium Hex Bars and Rods**, they’re primarily made from high-purity aluminum, enhanced with alloying elements like magnesium, silicon, and manganese to boost strength, formability, and corrosion resistance. Depending on the specific grade—like 6061, 6082, or 7075—these alloys can deliver tensile strengths ranging from 200 to 550 MPa, along with excellent machinability. They also shine in terms of thermal and electrical conductivity, are non-magnetic, and have a smooth surface finish that’s perfect for precision engineering tasks. Their lightweight nature and ease of fabrication make them a go-to choice across a variety of industries.
Standards : ASTM B221, B211, B565, B316, AMS 4121 2014
Temper : O
Standard : ASTM, ASME, AMS, GB/T, JIS
Length : 1000-6000
Size : 5 mm To 500 mm
Diameter : 6-150
Finish : Bright, Polish & Black
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
| Alloy | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Others | AI |
| 1100 (min) | 0.35 | 0.25 | 0.01 | 0.01 | 0.05 | 0.01 | 0.020 | Trace | 0.05 (each) | 99.60% |
| 1100 (max) | 0.50 | 0.35 | 0.03 | 0.05 | 0.20 | 0.05 | 0.030 | Trace | 0.15 (total) | remainder |
| 5083 | 0.40 max | 0.40 max | 4.0 / 4.90 | 0.40 / 1.0 | 0.10 max | 0.25 max | 0.15 max | 0.05 / 0.25 | 0.05 max | Bal |
| 6061 | 0.7 | 0.4-0.8 | 0.8-1.2 | 0.15 | 0.15-0.4 | 0.25 | 0.15 | 0.15-0.35 | 0.005/0.15 | Remainder |
| 6068 | 0.50 max | 0.7 – 1.3 | 0.06-1.20 | 0.40-1.00 | 0.10 max | 0.20 max | 0.10 max | 0.25 max | 0.05 max | Bal |
| 7075 min | 2.10 | 1.20 | 5.10 | 0.18 | ||||||
| 7075 max | 0.50 | 0.40 | 2.90 | 0.30 | 2.00 | 6.10 | 0.20 | 0.28 | 0.05 |
| Alloy | Temper | UTS(Mpa) | % Elongation | Tensile Strength | Hardness Brinell | Proof Stress | Yield Strength (PSI) | Shear Strength (PSI) | Brinell Hardness | |||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||||||||
| 1100 | O | 75 | 110 | 20 | 25 | 29 | ||||||
| H12 | 95 | 130 | 5 | 6 | 7 | |||||||
| H14 | 110 | 145 | 3 | 4 | 5 | |||||||
| H16 | 130 | 165 | 2 | 3 | 4 | |||||||
| H18 | 150 | — | 2 | 2 | 3 | |||||||
| 5083 | 12 Min % | 275 – 350 MPa | 75 HB | 125 Min MPa | ||||||||
| 6061 | – | 45,000 | 12 | 40,000 | 31,000 | 95 | ||||||
| 6082 | 8 | 295 | 95 | – | 240 | – | – | |||||
| 7075 T6, T651 | 11 | 83-572 | 73- 503 | 150 | ||||||||
| 7075 T73, T7351 | 13 | 73-503 | 63-434 | NA | ||||||||
| Grade | UNS | USA | Japan | France | ISO | WNR | EN | DIN | ISO | BS (OLD) |
| 1100 | A91100 | AA1100 | JIS A1100P | NF 1100 | Al 99.0 Cu. | – | – | – | – | – |
| 6082 | A96082 | AA6082 | – | – | – | 3.2315 | AW-6082 | AlMgSi1 | AlSi1MgMn | HE30 |
| 5083 | A95083 | 5083 | – | – | AlMg4,5Mn0,7 | 3.3547 | AW-AlMg4,5Mn0,7 | AlMg4,5Mn | – | – |
| 6061 | A96061 | AA6061 | – | – | – | 3.3211 | AW-AlMg1SiCu EN AW-6061 | AlMgSiCu | AlMg1SiCu | HE20 |
| 7075 | A97075 | 7075 | 3.4365 | ENAW-AlZn5.5MgCu EN AW-7075 | AlZnMgCu1.5 | AlZn6MgCu | 7075 L95 L96, V95 |
| HEXAGONS | ||
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Aluminium hex bar/rod is commonly used in aerospace, automotive, marine, construction, and manufacturing industries for lightweight structures, electrical components, fasteners, and precision machining due to its strength and corrosion resistance.
Aluminum hex bars are produced through extrusion, casting, or forging, followed by heat treatment and machining. This process enhances strength, dimensional accuracy, and surface finish, ensuring consistent quality and performance.
Yes, aluminum hex bar/rod can be welded. Recommended techniques include Tungsten Inert Gas (TIG) welding for precision, and Metal Inert Gas (MIG) welding for faster, more robust welds.
You’ll find **Aluminium Hex Bars and Rods** being widely utilized in sectors such as aerospace, automotive, marine, construction, and general engineering. They’re perfect for crafting fasteners, nuts, bolts, valve components, decorative fittings, and precision-machined parts where strength and corrosion resistance are crucial. In marine and architectural applications, their ability to withstand seawater and weathering is highly valued. Plus, they’re essential in electrical and mechanical applications that require materials that are both lightweight and durable. The blend of formability, durability, and aesthetic appeal makes **Aluminium Hex Bars and Rods** a top choice for advanced industrial and engineering projects.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
