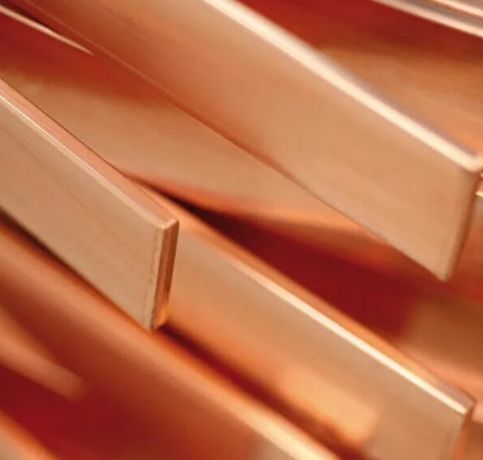

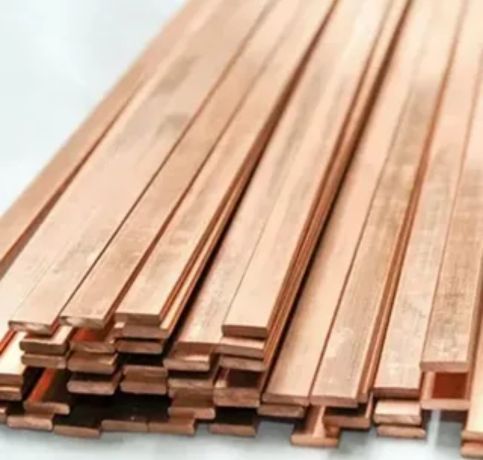

Isis Metals stands out as a top manufacturer and supplier of **Copper Nickel Flat Bars** right from the heart of Manila, Philippines. They specialize in high-quality copper-nickel alloys that are crafted to offer exceptional corrosion resistance, strength, and durability. Thanks to their cutting-edge manufacturing techniques and rigorous quality control, Isis Metals guarantees that each flat bar adheres to international standards for precision, performance, and reliability. These bars are specifically designed for marine, offshore, and industrial settings where they often face harsh conditions and seawater exposure. With a reputation for dependability and long-lasting performance, Isis Metals has become a trusted provider of non-ferrous metal solutions not just in the Philippines, but also in global markets.
When it comes to **Copper Nickel Flat Bars**, they are primarily made up of about 70% copper and 30% nickel, with a touch of iron and manganese added to boost their mechanical strength and corrosion resistance. This alloy is known for its remarkable ability to resist seawater corrosion, erosion, and biofouling, while also offering good thermal and electrical conductivity. Typically, these bars show a tensile strength ranging from 450 to 550 MPa, all while maintaining excellent ductility and workability. Plus, Copper Nickel alloys are easy to weld and fabricate, making them perfect for intricate engineering and structural projects.
tandards: EN, DIN, JIS, ASTM, BS, ASME, AISI
Size: 5 mm to 200 mm
Length : 100 mm to 3660 mm Long
Specifications : ASTM / ASME SB 111
Form : Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
Finish : Bright, Polish & Black
| Grade | Mn | Cu | Pb | Fe | Ni | Zn |
|---|---|---|---|---|---|---|
| 90/10 | 1.0 max | 88.6 min | 0.5 max | 1.8 max | 9-11 max | 1 max |
| 70/30 | 1 max | 65.0 min | 0.5 max | 0.4-1.0 | 29-33 | 1 max |
| Grade | Melting point | Density | Tensilestrength | Elongation | Yieldstrength(0.2%Offset) |
|---|---|---|---|---|---|
| 90/10 | 2260°F | 8.8g/cm3 | 50000 PSi | 30% | 20000 PSi |
| 70/30 | 2260°F | 0.323 lb/in3 at 68°F | 50000 PSi | 30% | 20000 PSi |
| BD | Bright drawn | SRE | Slit rolled edge |
| CF | Cold finished | HRAP | Hot rolled annealed / pickled |
| CG | Centreless ground | HF | Hot finished |
| ST | Smooth turned | PR | Peeled / reeled |
| CD | Cold drawn | P | Polished |
| P&T | Peeled / turned | RT | Rough turned and peeled |
| Flat bar – metric sizes ( weights ) | |||
|---|---|---|---|
| Flat size | Standard length (metres) | KG’s / metre | Colour code |
| 16 x 3 | 6.0 | 0.38 | Blue |
| 13 x 3 | 6.0 | 0.31 | Blue |
| 13 x 5 | 6.0 | 0.46 | Orange |
| 16 x 5 | 6.0 | 0.64 | Orange |
| 20 x 3 | 6.0 | 0.48 | Blue |
| 16 x 8 | 6.0 | 1.03 | Red |
| 20 x 5 | 6.0 | 0.81 | Orange |
| 20 x 10 | 6.0 | 1.61 | Yellow |
| 20 x 6 | 6.0 | 0.97 | White |
| 25 x 3 | 6.0 | 0.60 | Blue |
| 25 x 6 | 6.0 | 1.21 | White |
| 10 x 3 | 6.0 | 0.24 | Blue |
| 25 x 5 | 6.0 | 1.01 | Orange |
| 25 x 8 | 6.0 | 1.61 | Red |
| 25 x 12 | 6.0 | 2.41 | Pink |
| 25 x 10 | 6.0 | 2.01 | Yellow |
| 32 x 3 | 6.0 | 0.77 | Blue |
| 32 x 6 | 6.0 | 1.55 | White |
| 32 x 5 | 6.0 | 1.29 | Orange |
| 32 x 8 | 6.0 | 2.06 | Red |
| 32 x 12 | 6.0 | 3.09 | Pink |
| 32 x 10 | 6.0 | 2.58 | Yellow |
| 40 x 3 | 6.0 | 0.97 | Blue |
| 40 x 6 | 6.0 | 1.93 | White |
| 40 x 5 | 6.0 | 1.61 | Orange |
| 40 x 8 | 6.0 | 2.58 | Red |
| 40 x 12 | 6.0 | 3.86 | Pink |
| 40 x 10 | 6.0 | 3.22 | Yellow |
| 40 x 16 | 6.0 | 5.15 | Grey |
| 50 x 3 | 6.0 | 1.21 | Blue |
| 40 x 20 | 6.0 | 6.14 | Green |
| 50 x 5 | 6.0 | 2.01 | Orange |
| 50 x 8 | 6.0 | 3.22 | Red |
| 50 x 6 | 6.0 | 2.41 | White |
| 50 x 10 | 6.0 | 4.02 | Yellow |
| 50 x 16 | 6.0 | 6.44 | Grey |
| 50 x 12 | 6.0 | 4.83 | Pink |
| 50 x 20 | 6.0 | 8.05 | Green |
| 65 x 3 | 6.0 | 1.57 | Blue |
| 50 x 25 | 6.0 | 10.1 | Purple |
| 65 x 5 | 6.0 | 2.62 | Orange |
| 65 x 8 | 6.0 | 4.18 | Red |
| 65 x 6 | 6.0 | 3.14 | White |
| 65 x 10 | 6.0 | 5.23 | Yellow |
| 65 x 16 | 6.0 | 8.37 | Grey |
| 65 x 12 | 6.0 | 6.28 | Pink |
| 65 x 20 | 6.0 | 10.5 | Green |
| 75 x 5 | 6.0 | 3.02 | Orange |
| 65 x 25 | 6.0 | 13.1 | Purple |
| 75 x 6 | 6.0 | 3.62 | White |
| 75 x 10 | 6.0 | 6.04 | Yellow |
| 75 x 8 | 6.0 | 4.83 | Red |
| 75 x 12 | 6.0 | 7.24 | Pink |
| 75 x 20 | 6.0 | 12.1 | Green |
| 75 x 16 | 6.0 | 9.66 | Grey |
| 75 x 25 | 6.0 | 15.1 | Purple |
| 90 x 5 | 6.0 | 3.62 | Orange |
| 75 x 40 | 6.0 | 24.1 | Yellow |
| 90 x 6 | 6.0 | 4.35 | White |
| 90 x 10 | 6.0 | 7.24 | Yellow |
| 90 x 8 | 6.0 | 5.79 | Red |
| 90 x 12 | 6.0 | 8.69 | Pink |
| 100 x 6 | 6.0 | 4.83 | White |
| 100 x 5 | 6.0 | 4.02 | Orange |
| 100 x 8 | 6.0 | 6.44 | Red |
| 100 x 12 | 6.0 | 9.66 | Pink |
| 100 x 10 | 6.0 | 8.05 | Yellow |
| 100 x 16 | 6.0 | 12.9 | Grey |
| 100 x 25 | 6.0 | 20.1 | Purple |
| 100 x 20 | 6.0 | 16.1 | Green |
| 100 x 50 | 6.0 | 40.2 | Green |
| 110 x 8 | 6.0 | 7.08 | Red |
| 110 x 6 | 6.0 | 5.31 | White |
| 110 x 10 | 6.0 | 8.85 | Yellow |
| 130 x 5 | 6.0 | 5.23 | Orange |
| 110 x 12 | 6.0 | 10.6 | Pink |
| 130 x 6 | 6.0 | 6.28 | White |
| 130 x 10 | 6.0 | 10.5 | Yellow |
| 130 x 8 | 6.0 | 8.37 | Red |
| 130 x 12 | 6.0 | 12.6 | Pink |
| 130 x 20 | 6.0 | 20.9 | Green |
| 130 x 16 | 6.0 | 16.7 | Grey |
| 130 x 25 | 6.0 | 26.2 | Purple |
| 150 x 6 | 6.0 | 7.24 | White |
| 150 x 5 | 6.0 | 6.04 | Orange |
| 150 x 8 | 6.0 | 9.66 | Red |
| 150 x 12 | 6.0 | 14.5 | Pink |
| 150 x 10 | 6.0 | 12.1 | Yellow |
| 150 x 16 | 6.0 | 19.3 | Grey |
| 150 x 25 | 6.0 | 30.1 | Purple |
| 150 x 20 | 6.0 | 24.1 | Green |
| 150 x 50 | 6.0 | 60.4 | Green |
| 180 x 6 | 6.0 | 8.69 | White |
| 180 x 5 | 6.0 | 7.24 | Orange |
| 180 x 10 | 6.0 | 14.5 | Yellow |
| 180 x 16 | 6.0 | 23.2 | Grey |
| 180 x 12 | 6.0 | 17.4 | Pink |
| 180 x 20 | 6.0 | 29.0 | Green |
| 200 x 6 | 6.0 | 9.66 | White |
| 180 x 25 | 6.0 | 36.2 | Purple |
| 200 x 8 | 6.0 | 12.9 | Red |
| 200 x 12 | 6.0 | 19.3 | Pink |
| 200 x 10 | 6.0 | 16.1 | Yellow |
| 200 x 16 | 6.0 | 25.7 | Grey |
| 200 x 25 | 6.0 | 40.3 | Purple |
| 200 x 20 | 6.0 | 32.2 | Green |
| 250 x 6 | 6.0 | 12.1 | White |
| 250 x 10 | 6.0 | 20.1 | Yellow |
| 250 x 8 | 6.0 | 16.1 | Red |
| Grade | UNS | Werkstoff Nr. |
| 90/10 | C70600 | 2.0872 |
| 70/30 | C71500 | 2.0882 |
Yes, Copper Nickel Flat Bars are customizable. They can be manufactured to specific dimensions, thicknesses, and lengths based on customer requirements. Additionally, they can be tailored for particular applications, such as varying alloy compositions or surface finishes, to meet performance needs in industries like marine, chemical, and power generation.
You’ll find **Copper Nickel Flat Bars** in various industries that require high corrosion resistance and mechanical strength. They’re perfect for creating heat exchangers, condensers, pump shafts, and seawater piping systems, especially in marine and desalination applications. In chemical processing plants, they’re utilized for valves, fittings, and other components that come into contact with corrosive environments. Additionally, these bars play a vital role in power generation, shipbuilding, and offshore industries. Their unique blend of durability, strength, and resistance to both seawater and chemical corrosion makes them the go-to choice for challenging marine and industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
