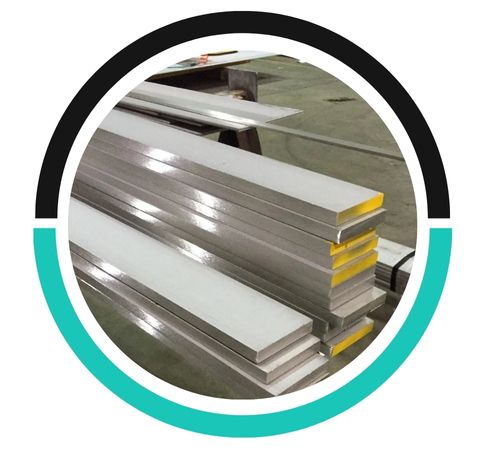

Isis Metals is a well-respected manufacturer and supplier located in Manila, Philippines, focusing on top-notch Titanium Flat Bars suitable for a variety of industrial and engineering needs. Our titanium products are celebrated for their remarkable strength, outstanding resistance to corrosion, and lightweight nature. Crafted to meet international standards, the Titanium Flat Bars from Isis Metals are perfect for use in aerospace, marine, chemical processing, and medical sectors. With state-of-the-art production facilities, rigorous quality control, and a dedication to customer satisfaction, we provide durable, precision-engineered titanium flat bars that guarantee reliable performance in challenging environments throughout the Philippines and beyond.
Titanium Flat Bars are mainly made from commercially pure titanium (≥99.5%) or titanium alloys like Ti-6Al-4V, depending on their intended use. They boast excellent resistance to corrosion, particularly in seawater and chemical settings, with a tensile strength that ranges from 240 to 900 MPa. Titanium has a density of 4.5 g/cm³ and a melting point of around 1660°C. These bars provide an impressive strength-to-weight ratio, along with fatigue resistance and good weldability. Their low thermal expansion and high stability make them perfect for precision machining and fabrication in both structural and high-stress applications.
| Standard | ASTM B348, ASME B348, ASTM B863, ASTM F67, ASTM F136 |
| Application | Industrial and Medical |
| Shape | Flat |
| size | Dia 5.0~350 X ≤ 6000 |
| Grade | Gr1, Gr2, Gr3, Gr4, Gr5, Gr7,Gr23,Ti15333 |
| Density | 4.53 g/cm3 |
| Techniques | Forged,Rolled, Extrusion |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Technique | TC4 Titanium Alloy Hot Rolled, Cold Rolled, Cold Drawn, Forged |
Hardness, Brinell | 120 | 120 | annealed |
Hardness, Knoop | 132 | 132 | Estimated from Brinell. |
Hardness, Rockwell B | 70 | 70 | annealed |
Hardness, Vickers | 122 | 122 | Estimated from Brinell |
Tensile Strength, Ultimate | 240 MPa | 34800 psi | – |
Tensile Strength, Yield | 170 – 310 MPa | 24700 – 45000 psi | – |
Elongation at Break | 24 % | 24 % | – |
Reduction of Area | 35 % | 35 % | – |
Modulus of Elasticity | 105 GPa | 15200 ksi | In Tension |
Compressive Modulus | 110 GPa | 16000 ksi | – |
Poisson’s Ratio | 0.37 | 0.37 | – |
Charpy Impact | 310 J | 229 ft-lb | V-notch |
Shear Modulus | 45 GPa | 6530 ksi | – |
|
Physical Properties |
Metric |
English |
|
Density |
4.51 g/cc |
0.163 lb/in³ |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51 g/cc | 0.163 lb/in³ |
|
STANDARD |
WERKSTOFF NR. |
UNS |
|
Titanium |
3.7035 / 3.7165 / 3.7235 |
R50400 / R56400 / R52400 |
Titanium Flat Bars are commonly used in the aerospace, medical, and chemical industries for components like frames, brackets, and heat exchangers due to their strength and corrosion resistance.
Yes, Titanium Flat Bars can be welded, but they require precise control over heat to avoid contamination and maintain the material’s strength and corrosion resistance.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@isismetals.com
Titanium Flat Bars find extensive use in industries where strength, corrosion resistance, and lightweight properties are crucial. In aerospace, they are utilized for airframes, fasteners, and engine components. The marine industry employs them in shipbuilding, offshore equipment, and desalination plants due to their ability to withstand seawater corrosion. In chemical processing, they are essential for heat exchangers, reactors, and pressure vessels that handle corrosive substances. The medical sector uses them for surgical instruments, orthopedic implants, and prosthetics.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
