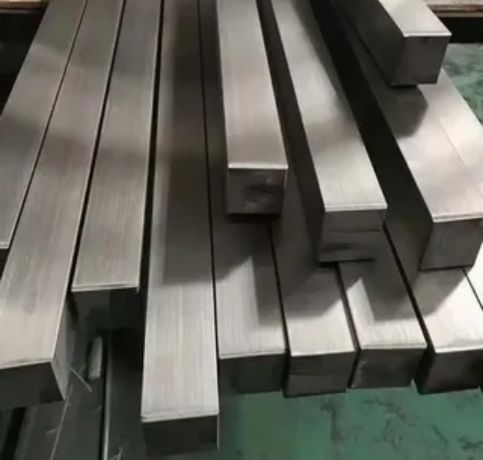

Isis Metals is a reliable manufacturer and supplier of **Aluminium Square Bars and Rods** located in Manila, Philippines. They’re known for producing top-notch aluminum products that boast lightweight strength, resistance to corrosion, and excellent machinability. Thanks to their advanced manufacturing techniques and rigorous quality control, Isis Metals guarantees that every square bar and rod adheres to international standards for precision, durability, and performance. These products are perfect for structural, mechanical, and decorative uses where both strength and form are essential. Industries throughout the Philippines and beyond trust Isis Metals for high-performance aluminum solutions that they can count on.
**Aluminium Square Bars and Rods** are crafted from high-purity aluminum, often mixed with alloying elements like magnesium, silicon, or manganese, depending on the specific grade (like 6061 or 6082). This blend results in impressive tensile strength (ranging from 200 to 550 MPa), exceptional corrosion resistance, and superb machinability. These square bars are lightweight, non-magnetic, and offer good thermal and electrical conductivity. Plus, they can be anodized or surface-treated to boost their durability and visual appeal, making them suitable for both industrial and architectural projects.
| Alloy | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Others | AI |
| 1100 (min) | 0.35 | 0.25 | 0.01 | 0.01 | 0.05 | 0.01 | 0.020 | Trace | 0.05 (each) | 99.60% |
| 1100 (max) | 0.50 | 0.35 | 0.03 | 0.05 | 0.20 | 0.05 | 0.030 | Trace | 0.15 (total) | remainder |
| 5083 | 0.40 max | 0.40 max | 4.0 / 4.90 | 0.40 / 1.0 | 0.10 max | 0.25 max | 0.15 max | 0.05 / 0.25 | 0.05 max | Bal |
| 6061 | 0.7 | 0.4-0.8 | 0.8-1.2 | 0.15 | 0.15-0.4 | 0.25 | 0.15 | 0.15-0.35 | 0.005/0.15 | Remainder |
| 6068 | 0.50 max | 0.7 – 1.3 | 0.06-1.20 | 0.40-1.00 | 0.10 max | 0.20 max | 0.10 max | 0.25 max | 0.05 max | Bal |
| 7075 min | 2.10 | 1.20 | 5.10 | 0.18 | ||||||
| 7075 max | 0.50 | 0.40 | 2.90 | 0.30 | 2.00 | 6.10 | 0.20 | 0.28 | 0.05 |
| Alloy | Temper | UTS(Mpa) | % Elongation | Tensile Strength | Hardness Brinell | Proof Stress | Yield Strength (PSI) | Shear Strength (PSI) | Brinell Hardness | |||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||||||||
| 1100 | O | 75 | 110 | 20 | 25 | 29 | ||||||
| H12 | 95 | 130 | 5 | 6 | 7 | |||||||
| H14 | 110 | 145 | 3 | 4 | 5 | |||||||
| H16 | 130 | 165 | 2 | 3 | 4 | |||||||
| H18 | 150 | — | 2 | 2 | 3 | |||||||
| 5083 | 12 Min % | 275 – 350 MPa | 75 HB | 125 Min MPa | ||||||||
| 6061 | – | 45,000 | 12 | 40,000 | 31,000 | 95 | ||||||
| 6082 | 8 | 295 | 95 | – | 240 | – | – | |||||
7075 T6, T651 | 11 | 83-572 | 73- 503 | 150 | ||||||||
7075 T73, T7351 | 13 | 73-503 | 63-434 | NA | ||||||||
| Grade | UNS | USA | Japan | France | ISO | WNR | EN | DIN | ISO | BS (OLD) |
| 1100 | A91100 | AA1100 | JIS A1100P | NF 1100 | Al 99.0 Cu. | – | – | – | – | – |
| 6082 | A96082 | AA6082 | – | – | – | 3.2315 | AW-6082 | AlMgSi1 | AlSi1MgMn | HE30 |
| 5083 | A95083 | 5083 | – | – | AlMg4,5Mn0,7 | 3.3547 | AW-AlMg4,5Mn0,7 | AlMg4,5Mn | – | – |
| 6061 | A96061 | AA6061 | – | – | – | 3.3211 | AW-AlMg1SiCu EN AW-6061 | AlMgSiCu | AlMg1SiCu | HE20 |
| 7075 | A97075 | 7075 | 3.4365 | ENAW-AlZn5.5MgCu EN AW-7075 | AlZnMgCu1.5 | AlZn6MgCu | 7075 L95 L96, V95 |
Yes, aluminum square bars are corrosion-resistant due to the formation of a protective oxide layer on the surface. This layer helps prevent further corrosion in most environmental conditions.
Aluminum square bars perform well in moderate heat but lose strength at high temperatures, typically above 200°C (392°F). They are not ideal for extreme high-temperature environments due to softening and deformation.
Yes, aluminum square rods can be customized in size and length based on specific requirements. Manufacturers offer a range of dimensions and can tailor the rods to meet individual project needs.
You’ll find **Aluminium Square Bars and Rods** being utilized across various sectors, including aerospace, automotive, marine, construction, and general engineering. They’re ideal for creating structural supports, frames, machine parts, brackets, fasteners, and decorative elements. In marine and outdoor settings, their corrosion resistance guarantees long-lasting performance, while in engineering and mechanical applications, their lightweight strength and machinability enhance efficiency and precision. The blend of durability, versatility, and aesthetic charm makes **Aluminium Square Bars and Rods** a go-to choice for contemporary industrial, mechanical, and architectural needs.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
