Liam Steel is a well-respected manufacturer and supplier located in Manila, Philippines, specializing in top-notch Copper C10200 Bars and Rods. With a strong dedication to quality and precision, Liam Steel crafts copper products that adhere to strict industry standards. Their Copper C10200 bars and rods are known for their outstanding performance and durability, making them a go-to choice for a wide range of industrial and electrical applications across the Philippines and its neighboring areas. Committed to reliability, prompt delivery, and customer satisfaction, Liam Steel consistently delivers trusted copper solutions to engineers, manufacturers, and fabricators.
Copper C10200, often referred to as Electrolytic Tough Pitch (ETP) copper, is made up of around 99.9% pure copper, with a slight oxygen content that enhances its mechanical properties. It boasts excellent electrical conductivity of about 100% IACS (International Annealed Copper Standard), along with good ductility and tensile strength that typically falls between 210 to 270 MPa. This material also shows impressive thermal conductivity and moderate resistance to corrosion, making it ideal for a variety of electrical and industrial applications.
| Specifications | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Range | 3.17 MM TO 350 MM DIA |

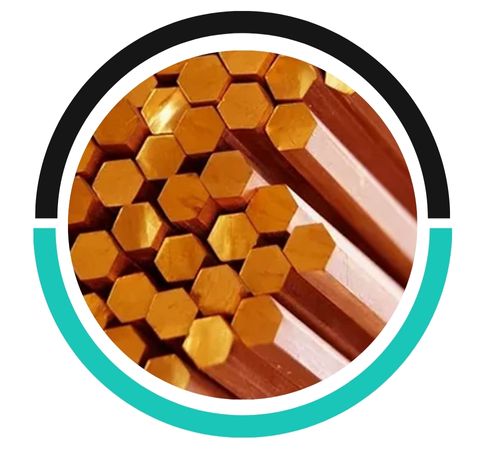

| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Copper Grades | C10200 |
| Melting Point – Solidus ⁰F | 1981 |
| Melting Point – Liquidus ⁰F | 1981 |
| Density lb/cu in. at 68⁰F | 0.323 |
| Electrical Conductivity % IACS at 68⁰F | 101 |
| Specific Gravity | 8.94 |
| Specific Heat Capacity Btu/lb/⁰F @ 68 ⁰F | 0.092 |
| Thermal Conductivity Btu/sq ft/ft hr/ ⁰F at 68⁰F | 226 |
| Coefficient of Thermal Expansion 10-6 per ⁰F (68-392 ⁰F) | 9.6 |
| Modulus of Rigidity ksi | 6400 |
| Coefficient of Thermal Expansion 10-6 per ⁰F (68-212 ⁰F) | 9.4 |
| Modulus of Elasticity in Tension ksi | 17000 |
| Coefficient of Thermal Expansion 10-6 per ⁰F (68-572 ⁰F) | 9.8 |
| Standards | Country | Value |
|---|---|---|
| EN | Europe | Cu-OF |
| DIN CEN/TS 13388 | Germany | CW008A |
| UNS | – | C10200 |
| JIS | Japan | C1020 |
| GB | China | TU1 |
| BS | England | C102 |
| Thermal Properties | Metric | English |
|---|---|---|
| Annealing Point | >= 371 °C | >= 700 °F |
| CTE, linear | 17.0 µm/m-°C @Temperature 20.0 – 100 °C | 9.44 µin/in-°F @Temperature 68.0 – 212 °F |
| 17.7 µm/m-°C @Temperature 20.0 – 300 °C | 9.83 µin/in-°F @Temperature 68.0 – 572 °F | |
| 17.3 µm/m-°C @Temperature 20.0 – 200 °C | 9.61 µin/in-°F @Temperature 68.0 – 392 °F | |
| Thermal Conductivity | 391 W/m-K @Temperature 20.0 °C | 2710 BTU-in/hr-ft²-°F @Temperature 68.0 °F |
| Melting Point | 1083 °C | 1981 °F |
| Specific Heat Capacity | 0.385 J/g-°C @Temperature 20.0 °C | 0.0920 BTU/lb-°F @Temperature 68.0 °F |
| Property/unit | Condition | Min | Max |
|---|---|---|---|
| Tensile Strength (N/mm2) | 1/2H | 290 | |
| Elongation in 5.65 Cross sectional area | O | 32 | |
| Tensile Strength (N/mm2) | H | 350 | |
| Tensile Strength (N/mm2) | O | 260 | |
| Elongation in 5.65Cross sectional area | 1/2H | 4 |
Yes, Copper C10200 Bars and Rods are fully recyclable. Copper retains its properties after recycling, making it an environmentally friendly and sustainable material for repeated use in various industries.
Copper C10200 Bars and Rods generally do not require corrosion protection coatings as copper naturally resists corrosion. However, in certain aggressive environments, protective coatings may be used to enhance durability.
Yes, Copper C10200 Bars and Rods can be welded using techniques like TIG and MIG welding. Their high conductivity and low oxygen content ensure strong and reliable welds for various applications.
You’ll find Copper C10200 bars and rods commonly used in electrical wiring, busbars, electrical connectors, and various electrical components thanks to their superb conductivity and workability. They play a crucial role in the manufacturing of transformers, motors, generators, and other power transmission equipment. Moreover, these copper rods are also utilized in plumbing, heat exchangers, and industrial machinery where both strength and conductivity are key. Liam Steel’s Copper C10200 products are dependable solutions for industries that require consistent, high-quality copper materials.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
