Isis Metals is a reputable manufacturer and supplier of **Haynes 230 Bars and Rods** located in Manila, Philippines. They specialize in high-performance nickel-chromium-tungsten-molybdenum alloys that are crafted for exceptional strength, oxidation resistance, and durability, even at high temperatures. Thanks to their cutting-edge manufacturing technology and rigorous quality control processes, Isis Metals guarantees that every Haynes 230 product adheres to international standards for mechanical integrity and reliability. These bars and rods are specifically designed for challenging high-temperature applications in sectors like aerospace, power generation, and chemical processing. Isis Metals is committed to delivering dependable, top-notch alloy solutions to industries both in the Philippines and around the world, ensuring they perform well under extreme conditions.
**Haynes 230 Bars and Rods** primarily consist of nickel (about 57%), chromium (22%), tungsten (14%), and molybdenum (2%), along with small amounts of manganese, silicon, and carbon. This alloy is known for its remarkable high-temperature strength, excellent resistance to oxidation and nitridation, and impressive long-term thermal stability. Haynes 230 typically boasts a tensile strength ranging from 760 to 850 MPa and maintains its mechanical properties even at temperatures soaring up to 1150°C. Additionally, it offers great fabricability and weldability, making it a fantastic option for applications that face both high stress and intense heat.
| tandards : | ASTM 5878, ASME S5878 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

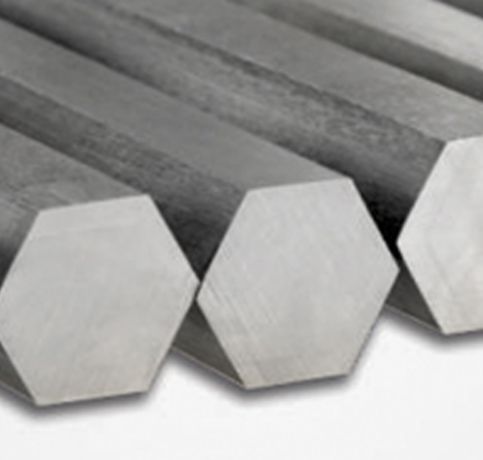

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

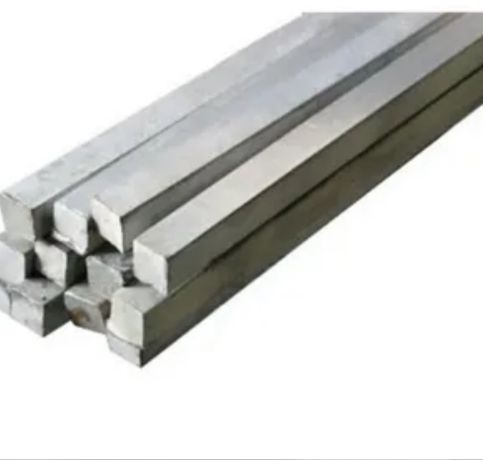

| Square bar size : | 4 to 100mm |

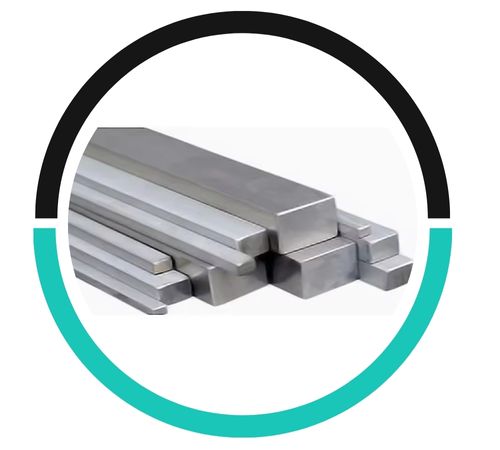

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | P | S | Si | Ni | Cr | Fe | W | B | La | Co | Ai | Ti | Cu | La | Mo |
| Haynes 230 | 0.05-0.15 | 0.30-1.0 | 0.03 max | 0.015 max | 0.25-0.75 | Rem | 20.0-24.0 | 3.0 max | 13.0-15.0 | 0.015 max | 0.005-0.05 | 5.0 max | 0.20-0.50 | 0.10 max | 0.50 max | 0.005-0.05 | 1.0-3.0 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness HB |
| ksi – 758, MPa – 110 | ksi – 310, MPa – 45 | 35 % | 241 max |
| STANDARD | WERKSTOFF NR. | UNS |
| Haynes 230 | 2.4733 | N06230 |
Yes, Haynes 230 rods can be customized in size and length according to specific requirements. Suppliers typically offer customization to meet the needs of various industrial applications.
Haynes 230 bars and rods perform exceptionally well in high-temperature environments, offering excellent oxidation and creep resistance. They maintain strength and stability at temperatures up to 2,000°F (1,093°C).
To maintain Haynes 230 bars, regularly clean them to prevent corrosion, avoid exposure to harsh chemicals, store in a dry, controlled environment, and perform periodic inspections for any surface damage.
**Haynes 230 Bars and Rods** find their place in various industries that demand materials capable of enduring extreme heat and corrosive conditions. They are perfect for crafting gas turbine components, combustor parts, heat exchangers, and furnace fixtures. In the chemical and petrochemical sectors, they are utilized for reaction vessels, piping, and thermal processing equipment that come into contact with high-temperature gases and chemicals. Furthermore, Haynes 230 is employed in aerospace, power generation, and industrial heating systems. Its unique blend of oxidation resistance, mechanical strength, and thermal stability makes Haynes 230 a go-to choice for demanding applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Isis Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Manila, Philippines
