Isis Metals, a reputable manufacturer and supplier located in Manila, Philippines, specializes in top-notch Nitronic 30 Bars and Rods. These products are celebrated for their remarkable strength, outstanding corrosion resistance, and cost-effectiveness. Built to thrive in tough environments, Nitronic 30 boasts impressive toughness and weldability, making it perfect for applications that demand durability and longevity. Isis Metals guarantees that each Nitronic 30 Bar and Rod adheres to international standards for performance and precision, serving a variety of industries including marine, construction, and transportation. With a strong focus on quality and reliability, Isis Metals has established itself as a trusted source for high-performance stainless steel products.
The composition of Nitronic 30 Bars and Rods primarily includes iron, chromium, and manganese, with small amounts of nitrogen, nickel, and silicon added to enhance their properties. This alloy offers double the yield strength of standard 304 stainless steel while still providing excellent toughness and corrosion resistance. It also demonstrates good ductility, formability, and weldability, even at cryogenic temperatures. The mechanical properties of Nitronic 30 include high tensile and yield strength, exceptional wear and galling resistance, and superior performance under mechanical stress, making it ideal for heavy-duty structural and industrial applications.
| Grade | Nitronic 30 Round Bar |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

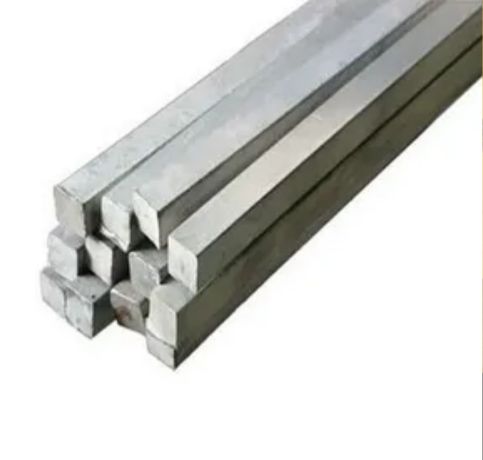

| Nitronic 30 Square bar size | 4 to 100mm |
| Nitronic Alloy 30 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Nitronic UNS S20400 Hex Bar size | 2-100mm A/F |
| Nitronic 30 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

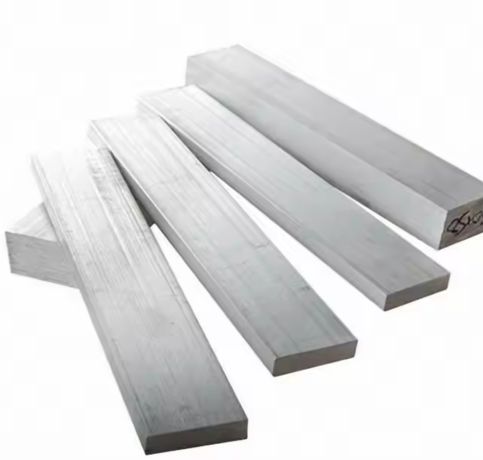

| Nitronic Alloy 30 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Nitronic UNS S20400 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 30 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy 30 Section | 3.0 to 12.0mm thickness |
| Nitronic UNS S20400 Round bar size | Diameter: 3-~800mm |
| Nitronic 30 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy 30 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic 30 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 30 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic UNS S20400 Technique | Nitronic 30 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 30 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 30 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 30 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 30 | 0.030 | 17.0 – 15.0 | 0.030 | 1.00 | 0.30 – 0.15 | 3.00 – 1.50 | 17.00 – 15.00 |
Ultimate Tensile, min. | Yield Strengtd (0.2% OS) min. | Elong. in 2 in., or 50mm, min., % | R/A | Hardness, max. | |
Min | 95 KSi | 48 KSi | 35 |
| |
Max | 241 Brinell | ||||
Min | 655 MPa | 330 MPa | |||
Max | 100 Rockwell B |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 30 Round bar | S20400 | – |
Common diameters for Nitronic 30 rod typically range from 1/8" to 6", with popular sizes including 1/4", 1/2", 3/4", 1", and 2" for various industrial applications.
Nitronic 30 bars typically come with a smooth finish, although a rough finish may also be available depending on the supplier or the specific processing requirements.
Nitronic 30 rod is typically available in sizes ranging from 1/8" to 3" in diameter. Finishes include hot-rolled, cold-drawn, and polished, offering a smooth, uniform surface for various applications.
Nitronic 30 Bars and Rods are extensively utilized in situations that require high strength, corrosion resistance, and durability. They are particularly well-suited for transportation equipment, railcars, truck bodies, and structural components that face harsh conditions. In the marine and chemical sectors, Nitronic 30 is commonly used for tanks, piping, and fittings due to its excellent resistance to corrosion and abrasion. Additionally, it finds applications in waste treatment facilities, food processing equipment, and architectural structures. With its blend of strength, formability, and cost efficiency, Nitronic 30 is a go-to material for demanding industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
