Isis Metals is a reputable manufacturer and supplier located in Manila, Philippines, focusing on top-notch Tantalum R05400 Bars and Rods tailored for advanced industrial and engineering needs. Known for their remarkable purity, resistance to corrosion, and thermal stability, our tantalum products are crafted to comply with international quality standards. The Tantalum R05400 Bars and Rods from Isis Metals are perfect for industries that require exceptional performance in extreme conditions, such as chemical processing, aerospace, electronics, and medical fields. With meticulous manufacturing and rigorous quality control, Isis Metals guarantees reliable, durable, and high-performing tantalum materials for clients both in the Philippines and around the world.
Tantalum R05400 Bars and Rods are made from high-purity tantalum (at least 99.9% Ta), with carefully controlled trace elements of oxygen, nitrogen, carbon, and hydrogen to boost performance. These bars are known for their excellent ductility, formability, and resistance to corrosion, even in harsh acids. Typical mechanical properties include tensile strength between 200–750 MPa, a density of 16.6 g/cm³, and a melting point of about 2996°C. Tantalum R05400 also showcases outstanding thermal and electrical conductivity, maintaining its structural integrity under high temperatures and corrosive environments, making it a go-to choice for demanding chemical and high-performance engineering applications.
| Specification | ASTM B365, ASME SB365 |

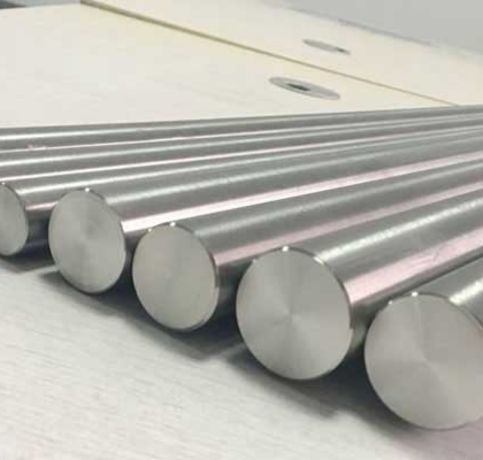

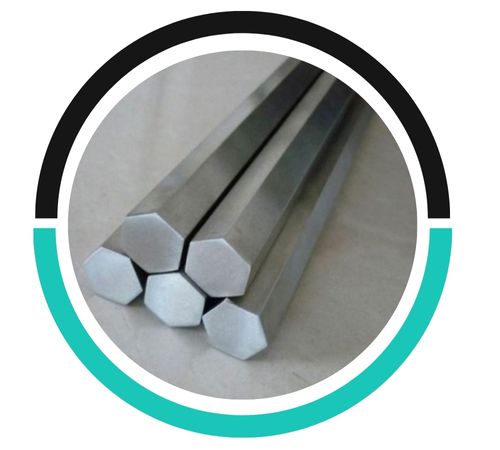

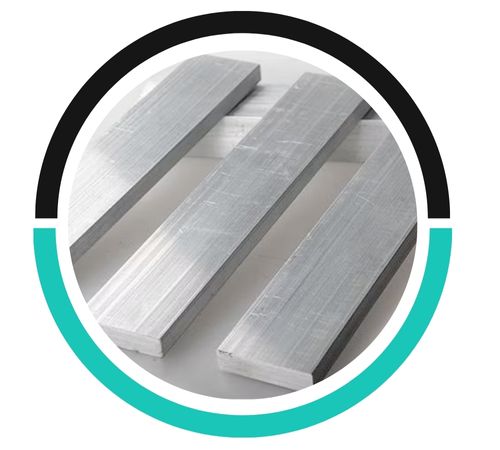

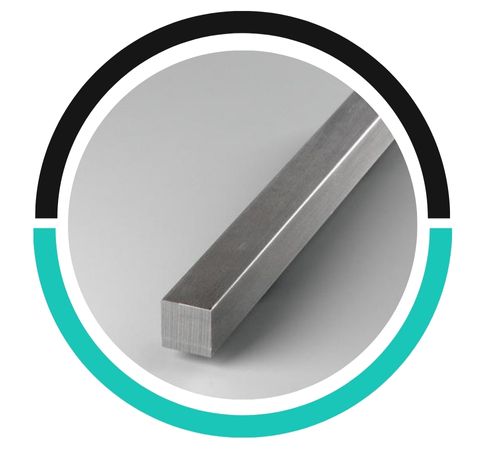

| Tantalum Bar Form | Tantalum Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |

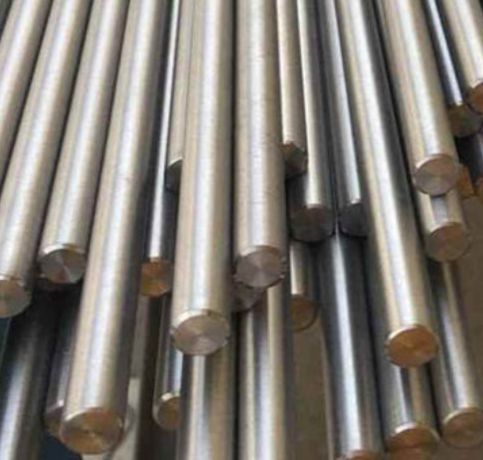

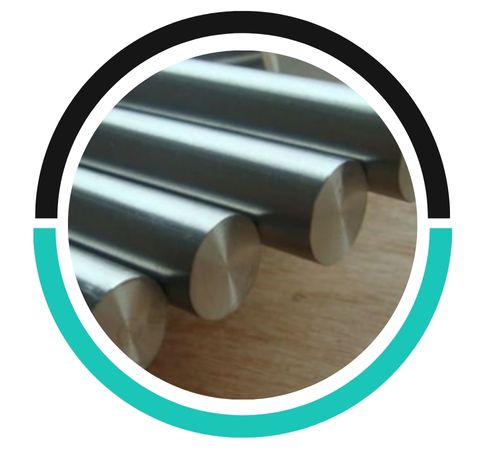

| Tantalum Round Bar Diameter | 0.125″ (3.18mm)~2.5″ (63.5mm) |
| Length | 2-12m |
| Purity | ≥99.95% or 99.99% |
| Tantalum Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Tantalum | C | O | N | H | Nb | Fe | Ti | W | Mo | Si | Ni | Ta |
| R05400 | 0.010 | 0.03 | 0.010 | 0.0015 | 0.100 | 0.010 | 0.010 | 0.050 | 0.020 | 0.005 | 0.010 | Remainder |
| Tantalum Alloy Rods & Bars Mechanical Property | ||||
| Grade | Tensile strength “>， psi (MPa)， ≥ | Yield strength “>， psi (MPa)， ≥ | Elongation in 1 inch gage length， ％， ≥ | |
| RO5400 | 25000 (172) | 15000 (103) | 25 | |
| 3/16” (4.76mm) | 25mm | 2.1/2” (63.5mm) |
| ¼” (6.35mm) | 1” (25.4mm) | 2.3/4” (69.85mm) |
| 5/16” (7.94mm) | 1.1/8” (28.58mm) | 3” (76.2mm) |
| 3/8” (9.53mm) | 30mm | 3.1/4” (82.55mm) |
| 10mm | 1.1/4” (31.75mm) | 3.1/2” (88.9mm) |
| 12mm | 1.3/8” (34.93mm) | 4” (101.6mm) |
| ½” (12.7mm) | 1.1/2” (38.1mm) | 4.1/2” (114.3mm) |
| 15mm | 40mm | 5” (127mm) |
| 5/8” (15.88mm) | 1.3/4” (44.45mm) | 5.1/2” (139.7mm) |
| ¾” (19.05mm) | 2” (50.8mm) | 6” (152.4mm) |
| 20mm | 2.1/8” (53.98mm) | 7” (177.8mm) |
| 7/8” (22.23mm) | 2.1/4” (57.15mm) | 8” (203.2mm) |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
Store Tantalum R05400 bars and rods in a clean, dry environment away from moisture and corrosive substances. Use protective covers or packaging to prevent contamination, scratches, or physical damage during storage.
Tantalum R05400 can withstand extremely high temperatures, up to approximately 3,000°C (5,432°F) in a vacuum or inert atmosphere. Its excellent heat resistance makes it ideal for high-temperature applications.
Tantalum R05400 Bars and Rods find extensive use in industries that need materials with exceptional corrosion resistance and high-temperature strength. In the chemical processing sector, they are utilized for heat exchangers, reactors, and piping systems that come into contact with aggressive acids like hydrochloric and sulfuric acids. The electronics industry employs them in the production of capacitors, components for vacuum furnaces, and sputtering targets. In aerospace, they are used in turbine blades and combustion chambers, showcasing their versatility and reliability in critical applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
