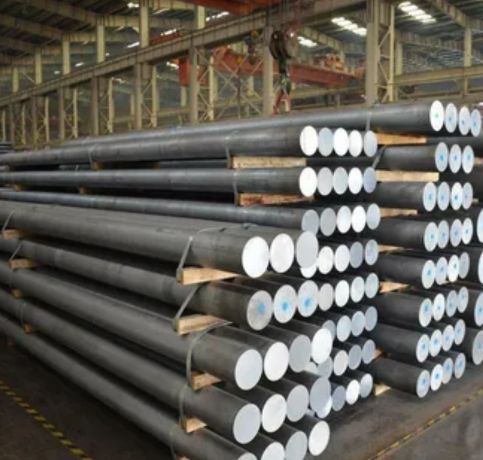

Isis Metals, a top-notch manufacturer and supplier located in Manila, Philippines, specializes in high-quality Alloy 20 Round Bars that are renowned for their outstanding corrosion resistance and durability. Crafted with cutting-edge metallurgical techniques and premium raw materials, these round bars consistently perform well even in tough chemical and industrial settings. Isis Metals is committed to rigorous quality control and compliance with international standards, ensuring that their products are reliable and precise for critical applications. Alloy 20 Round Bars are perfect for industries like chemical, petrochemical, pharmaceutical, and food processing, where resistance to sulfuric acid, chloride stress corrosion, and oxidizing agents is crucial for long-lasting, high-performance components.
Alloy 20 Round Bars mainly consist of nickel (32–38%), chromium (19–21%), and copper (3–4%), along with molybdenum (2–3%) and small amounts of iron and carbon. This specific blend guarantees excellent resistance to both oxidizing and reducing acids, particularly sulfuric acid. The alloy boasts a tensile strength of up to 655 MPa, a yield strength of around 275 MPa, and an elongation of 35%. Alloy 20 is known for its superior toughness, ductility, and weldability, maintaining its mechanical integrity and dimensional stability even in high-stress, corrosive environments, making it ideal for critical industrial components and applications.
Alloy 20 Round Bar Specification : ASTM B473 , ASME SB473
Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 14mm-300mm
Thickness : 50 mm to 6000 mm Long
Length : 1 To 6 Meters, Custom Cut Length

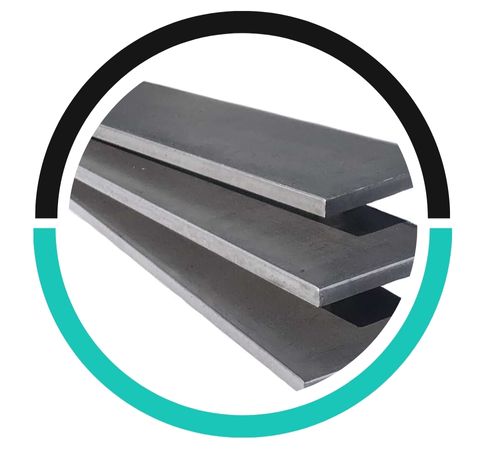

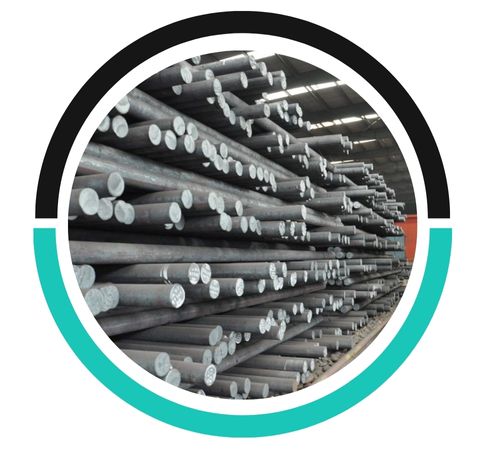

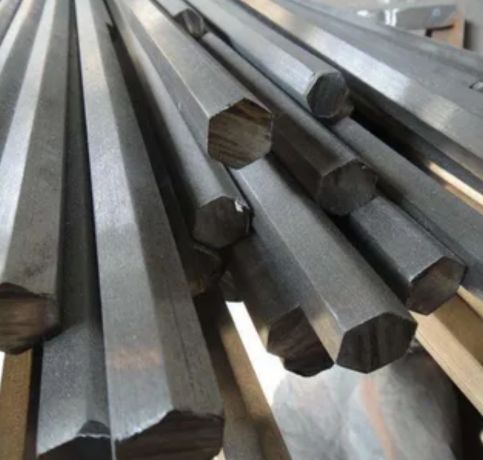

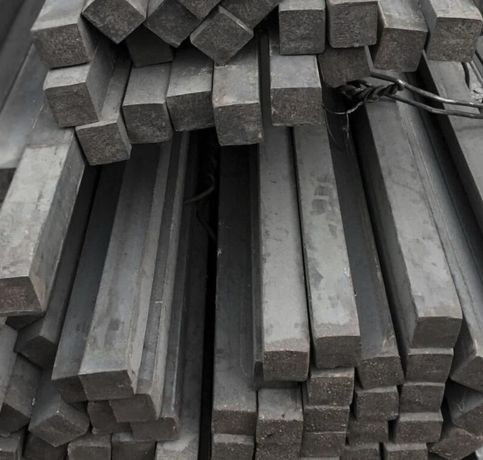

Form : Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc.
| Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
|---|---|---|---|---|---|---|---|---|---|---|
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min* | 2.00 – 3.00 | 0.045 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
| STANDARD | UNS | WNR. | EN | AFNOR |
|---|---|---|---|---|
| Alloy 20 | N08020 | 2.4660 | NiCr20CuMo | Z2NCUD31-20AZ |
Type | SIZES (mm) | ISO Tolerance | SIZES (Inches) |
|---|---|---|---|
Peeled and Polished | 40.00 to 150.00 | h11-DIN 1013 | 1.50″ to 6.00″ |
Cold Drawn and Ground | 10.00 to 75.00 | h9-h8-h11-h10 | 5/6″ to 2.50″ |
Cold Drawn and Polish | 3.00 to 75.00 | h9-h8-h11-h10 | 1/8″ to 3.00″ |
Peeled and Ground | 20.00 to 50.00 | h10-h9-h11 | 3/4″ to 2.00″ |
Cut to size on request (tolerance +2/-0 mm). Standard lengths of Alloy 20 Bars 2000 mm up to 6000 mm available
50.0 | 6.0 |
65.0 | 9.0 |
55.0 | 7.0 |
45.0 | 5.0 |
70.0 | 10.0 |
60.0 | 8.0 |
75.0 | 12.0 |
90.0 | 20.0 |
80.0 | 16.0 |
130.0 | 30.0 |
100.0 | 25.0 |
160.0 | 35.0 |
120.0 | 40.0 |
Choose the right Alloy 20 Round Bar based on factors like corrosion resistance, strength requirements, and compatibility with your specific application environment.
The pressure rating of Alloy 20 Round Bar depends on factors such as size, temperature, and specific application conditions, typically determined through engineering calculations.
Yes, Alloy 20 Round Bar can be welded, offering excellent weldability with proper techniques.
Alloy 20 Round Bars find extensive use in industries that demand high corrosion resistance and strength. They are frequently used in chemical processing equipment, including pumps, valves, flanges, and reactor components that come into contact with aggressive acids. In the pharmaceutical and food processing industries, Alloy 20 ensures that components are both hygienic and durable. The petrochemical sector relies on these bars for pipelines, heat exchangers, and pressure vessels. Their unique combination of mechanical strength and corrosion resistance also makes them suitable for marine applications and high-temperature environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
