Isis Metals stands out as a reliable manufacturer and supplier of OHNS (Oil Hardening Non-Shrinking) Round Bars right in the heart of Manila, Philippines. Renowned for their top-notch quality and precision engineering, Isis Metals provides bars that adhere to the highest industrial standards. The OHNS Round Bars from this company are prized for their remarkable hardness, wear resistance, and stability in dimensions after heat treatment. With a strong focus on customer satisfaction, Isis Metals serves a diverse array of industries, offering durable and dependable OHNS Round Bars that are perfect for tooling, die-making, and heavy-duty mechanical applications.
The OHNS Round Bars are primarily made up of carbon, chromium, manganese, silicon, and tungsten, which together deliver outstanding toughness and hardenability. The carbon content guarantees high hardness and strength following oil quenching, while chromium boosts wear and corrosion resistance. These bars are easy to machine in their annealed state and maintain excellent dimensional stability during heat treatment. With tensile strength reaching up to 1000 MPa and Rockwell hardness around 60 HRC after hardening, OHNS Round Bars are perfect for precision tooling and durable industrial components.
| Grade | OHNS Round Bar |
|---|---|
| Specification | aaaaaaaaaaaaa |

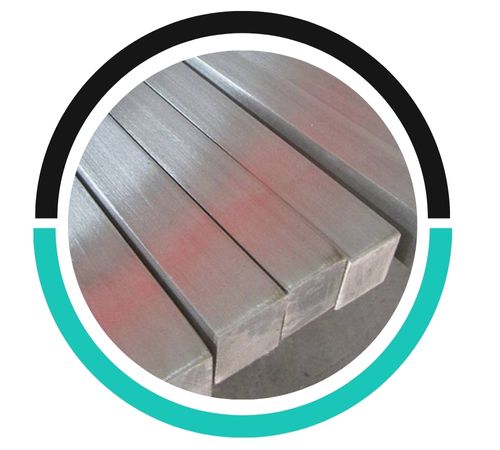

| OHNS Square bar size | 4 to 100mm |
| OHNS Steel Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| OHNS High Speed Steel Hex Bar size | 2-100mm A/F |
| OHNS Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| OHNS Steel Rectangles Size | 33 x 30mm to 295 x 1066mm |
| OHNS High Speed Steel Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| OHNS Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| OHNS Steel Section | 3.0 to 12.0mm thickness |

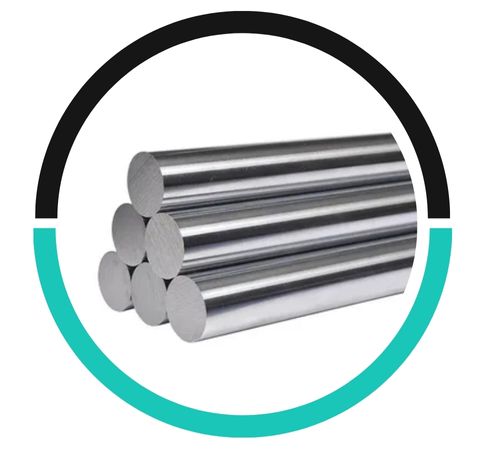

| OHNS High Speed Steel Round bar size | Diameter: 3-~800mm |
| OHNS Billet Size | 1/2″ to 495mm Diameter |
| OHNS Steel Round Bar Standard Dimensions | Diameter / Height: |
| OHNS Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| OHNS Steel Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| OHNS High Speed Steel Technique | OHNS Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| OHNS Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | OHNS Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square Bar, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our OHNS Round bar conforms to NACE MR0175/ISO 15156 | |
| C | Si | Mn | P | S | Cr | W |
| 0.85-1.00 | 0.15-0.35 | 1.00-1.20 | 0.030max | 0.030max | 0.50-0.70 | 0.50-0.70 |
| Maximum Stress(N/mm²) | Yield Stress(N/mm²) | Elongation | Impact Strength (joule) | Hardness value (BHN) |
| 950 | 465 | 10% | 25 | 288 |
| STANDARDS | 100MnCrW4 | O1 | DIN 2510 | AISI O1 | AFNOR 90MWCV5 | JIS SKS3 |
OHNS (Oil Hardened Non-Shrinking) round bars are sized based on their diameter, typically ranging from 6 mm to 300 mm, with standard lengths ranging from 3 meters to 6 meters.
OHNS (Oil Hardened Non-Shrinking) rods are available in different grades, such as OHNS 1, OHNS 2, and OHNS 3, varying in hardness, toughness, and application suitability for manufacturing and toolmaking.
Yes, laser welding can be used for OHNS (Oil Hardened Non-Shrinking) bar, as it offers precision, minimal heat input, and controlled weld quality, making it suitable for hardenable tool steels.
OHNS Round Bars find their place in various industries that require tools and dies capable of maintaining accuracy and durability under significant stress. They are particularly suited for crafting cutting tools, punches, gauges, dies, shear blades, and molds, thanks to their ability to resist distortion during heat treatment. In sectors like automotive, aerospace, and metalworking, these bars are utilized in applications that demand exceptional wear resistance and strength. Their versatility and toughness make OHNS Round Bars a vital material for creating high-performance components that need both precision and reliability in tough environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Isis Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Manila, Philippines
