Isis Metals, a reputable manufacturer and supplier located in Manila, Philippines, has built a solid reputation for its top-notch Carbon Steel Bright Bars and Rods. With years of experience in metal fabrication and distribution, the company specializes in delivering precision-engineered products that adhere to international standards for strength, durability, and dimensional accuracy. Isis Metals serves a variety of industries, including construction, automotive, machinery, and engineering, providing customized sizes and finishes tailored to meet diverse needs. Thanks to advanced processing technologies and rigorous quality control, Isis Metals consistently offers reliable, cost-effective, and high-performance steel solutions throughout the Philippines and beyond.
The Carbon Steel Bright Bars and Rods are primarily made up of carbon (0.05–0.60%), manganese (0.30–1.50%), along with small amounts of silicon, sulfur, and phosphorus. This well-balanced composition ensures excellent machinability, wear resistance, and strength. Depending on the specific grade, the material showcases tensile strengths ranging from 370 to 850 MPa and yield strengths between 250 and 700 MPa. With impressive ductility and a smooth surface finish, these bright bars maintain their dimensional precision and hardness even after machining or heat treatment, making them ideal for both structural and mechanical engineering applications.

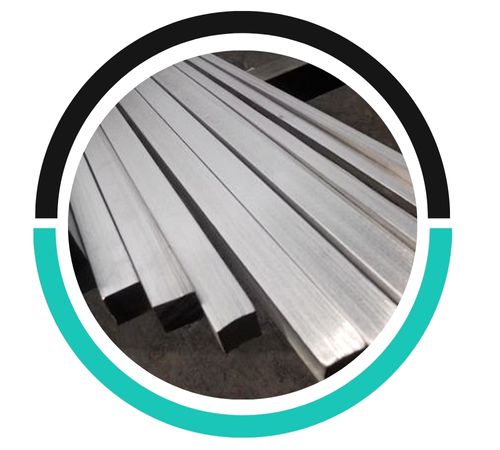

Carbon Steel Bright Square Bar Size: 4 to 100mm

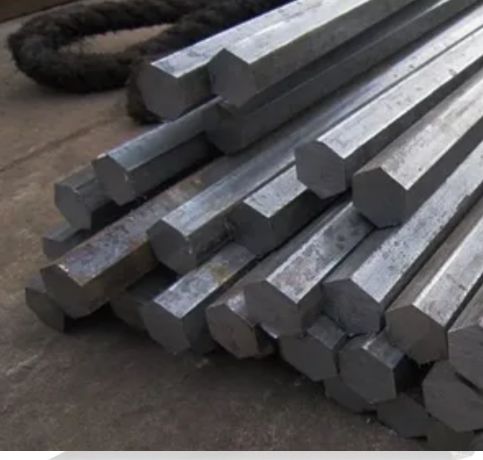

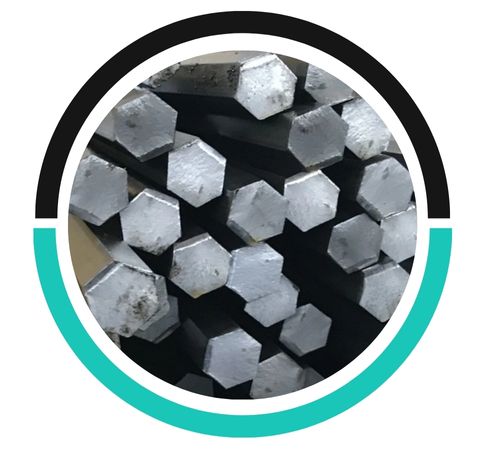

Steel Low Carbon Bright Hex Bar Sizes : 2 to 100 mm A/F
Medium Carbon Steel Bright Angle Bar Size : 3*20*20~12*100*100 mm
Quenching High Carbon Steel Billet Sizes : 1/2″ – 495 mm Dia
Killed Carbon Steel Bright Cold Drawn Bar Processing : Bar cutting to 650mm
Plain Carbon Steel Section Bar Size Range : 3 to 12 mm thickness
| Carbon Steel Grades | C | Mn | Si | S Max. | P Max. |
|---|---|---|---|---|---|
| Ck 45 | 0.42/0.50 | 0.50/0.80 | 0.15/0.35 | 0.04 | 0.04 |
| Ck 55 | 0.52/0.60 | 0.60/0.90 | 0.15/0.35 | 0.04 | 0.04 |
| Ck 60 | 0.57/0.65 | 0.60/0.90 | 0.15/0.35 | 0.04 | 0.04 |
| SAE1006 | 0.08 max | 0.25/0.40 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1008 | 0.10 max | 0.30/0.50 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1010 | 0.08/0.13 | 0.30/0.60 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1018 | 0.15/0.20 | 0.60/0.90 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1020 | 0.18/0.23 | 0.30/0.60 | 0.10/0.30 | 0.09 | 0.04 |
| SAE1030 | 0.28/0.34 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| SAE1035 | 0.32/0.38 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| SAE1040 | 0.37/0.44 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| SAE1045 | 0.40/0.50 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| En-8D | 0.40/0.45 | 0.70/0.90 | 0.05/0.35 | 0.06 | 0.06 |
| En-9 | 0.50/0.60 | 0.50/0.80 | 0.05/0.35 | 0.06 | 0.06 |
| Grade | Yield Strength, | Tensile Strength, | Elongation at Break (in 50 mm) | Bulk Modulus (typical for steel) | Modulus of Elasticity | HBW | Poissons Ratio | Fatigue strength coefficient, of (Mpa) | Shear Modulus | Impacting Energy | Reduction of area, min: |
|---|---|---|---|---|---|---|---|---|---|---|---|
| a36 | 250 MPa | 400 – 550 MPa | 23.00% | 140 GPa | 200 GPa | 0.26 | 79.3 GPa | ||||
| 36300 psi | 58000 – 79800 psi | 23.00% | 20300 ksi | 29000 ksi | 0.26 | 11500 ksi | |||||
| EN45 | 35 (241) | 80 (551) | 40% | 204 Gpa | 948 | ≥63 | |||||
| EN19 | ≥930 Mpa | ≥1080 Mpa | ≥12 | 217 | ≥45 | ||||||
| 105 | 36,000 psi [250 MPa] | 70,000 psi (485 MPa] | 187 | 30% min | |||||||
| EN8 | ≥210 | ≥380 | ≥25 | ≤111HB | ≥50 |
Yes, carbon steel bright bars can attract magnets. Carbon steel is generally magnetic due to its iron content, which exhibits magnetic properties when in a solid, non-alloyed form.
Carbon steel bright bars and rods come in various grades, including mild steel, medium carbon steel, high carbon steel, alloy steel, and tool steel. These types vary in strength, hardness, and flexibility.
Yes, carbon steel bright bars can be recycled after use. The recycling process involves melting down the material, removing impurities, and then reusing it to produce new steel products.
Isis Metals’ Carbon Steel Bright Bars and Rods are widely utilized in industries that require exceptional strength and precision. Common uses include the production of fasteners, shafts, axles, gears, bolts, machine parts, and components for automotive and agricultural equipment. They also play a crucial role in construction for reinforcement and fabrication tasks. The bright, smooth surface finish minimizes friction and enhances fitting accuracy in assemblies. Due to their versatility, machinability, and strength, these bars and rods are indispensable materials in engineering workshops, fabrication shops, and maintenance operations across various industrial sectors.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
