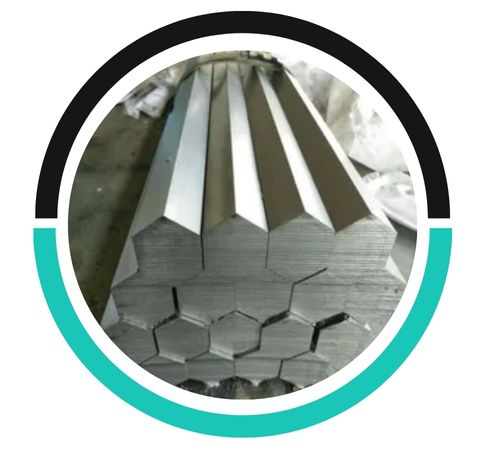

Headquartered in Manila, Philippines, Isis Metals is a reliable provider of high-quality specialty metals engineered for intricate industrial use. Of its higher-end products, the Hastelloy Hex Bar is notable for its superior corrosion resistance, mechanical properties, and temperature resistance. A nickel-based metal alloy, this product is carefully engineered into hexagonal bars with a versatile and durable option for producing fasteners, structural parts, and machined components for applications in hostile environments. Recognizing the importance of reliability and performance, Isis Metals is committed to providing Hastelloy Hex Bars that provide exceptional functionality even in the most corrosive and high-temperature applications.
Hastelloy Hex Bars are nickel-chromium-molybdenum alloys consisting mainly of Nickel (50–70%), Molybdenum (14–22%), and Chromium (14–22%), with minor levels of Iron, Tungsten, and Cobalt to increase their strength and corrosion resistance. The alloy exhibits excellent pitting, crevice corrosion, and stress corrosion cracking resistance in harsh environments. Hastelloy is mechanically robust with high tensile strength (approximately 690 MPa), superior ductility, and excellent stability at temperatures up to 870°C. These characteristics make Hastelloy Hex Bars well-suited for high-stress, high-stress applications where strength and dimensional integrity over an extended period are required.
| Hastelloy Hex Bar Standard | ASTM B574, AMS 5513, AMS 5511, AMS 5647 |
| Alloy Hex Bar Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Alloy Hex Rod size | 4 to 100mm |
| Alloy Hex Bars Section | 3.0 to 12.0mm thickness |
| Bar Form | Hexagonal |
| Material | Ni | C | Cr | Co | Fe | Mn | Mo | P | Si | S | W | V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hastelloy | Bal | 0.010 max | 20 – 22.5 | 2.5 max | 2 – 6 | 0.50 max | 12.5 – 14.5 | 0.02 max | 0.08 max | 0.02 max | 2.5 – 3.5 | 0.35 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
|
Wt per Foot t of hex bar |
Size in Inches of hex bar |
Wt per 12 ‘ of hex bar |
|---|---|---|
|
0.0180 |
1/4″ |
2.160 |
|
0.0104 |
3/16″ |
1.248 |
|
0.0600 |
3/8″ |
4.920 |
|
0.0290 |
5/16″ |
3.480 |
|
0.0740 |
1/2″ |
8.880 |
|
0.0560 |
7/16″ |
6.72 |
|
1.150 |
5/8″ |
13.80 |
|
0.0930 |
9/16″ |
11.16 |
|
1.660 |
3/4″ |
19.92 |
|
1.390 |
11/16″ |
16.68 |
|
2.300 |
7/8″ |
27.60 |
|
2.600 |
15/16″ |
31.20 |
|
1.950 |
13/16″ |
23.40 |
|
3.30 |
1-1/16″ |
39.60 |
|
2.90 |
1″ |
34.80 |
|
4.600 |
1-1/4″ |
55.20 |
|
3.700 |
1-1/8″ |
44.40 |
|
5.600 |
1-3/8″ |
67.20 |
|
5.100 |
1-5/16″ |
61.20 |
|
6.600 |
1-1/2″ |
79.20 |
|
6.100 |
1-7/16″ |
73.20 |
|
26.53 |
3″ |
318.36 |
|
9.030 |
1-3/4″ |
108.36 |
|
7.800 |
1-5/8″ |
93.60 |
|
18.42 |
2-1/2″ |
221.04 |
|
11.80 |
2″ |
141.60 |
|
10.0400 |
1-7/8″ |
124.80 |
|
16.920 |
2-3/8″ |
203.04 |
|
14.920 |
2-1/4″ |
179.04 |
Yes, Hastelloy hex bars are highly resistant to high temperatures and can be used in extreme environments, including high-temperature applications in industries like chemical processing and aerospace.
Yes, Hastelloy hex bars can be recycled after use. Hastelloy, being a high-performance alloy, retains its properties even after recycling, making it a sustainable material for various applications.
Hastelloy hex bars are known for their excellent corrosion resistance, particularly against aggressive environments. However, in some extreme conditions, additional corrosion protection coatings may be applied for enhanced durability.
Hastelloy Hex Bars find widespread application in industry where corrosion, oxidation, and high-temperature resistance are important. In the chemical processing sector, they find application for fasteners, shafts, and structural components that are subjected to acids and chlorides. They are utilized by the oil and gas industry for offshore drilling parts and valves, where resistance to corrosion and durability are essential. In the field of aerospace, Hastelloy Hex Bars are utilized in engine parts and exhaust systems withstanding high heat and pressure. They also apply in power generation, marine applications, and pollution control systems, providing steady performance, reliability, and durability under extreme operating conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
