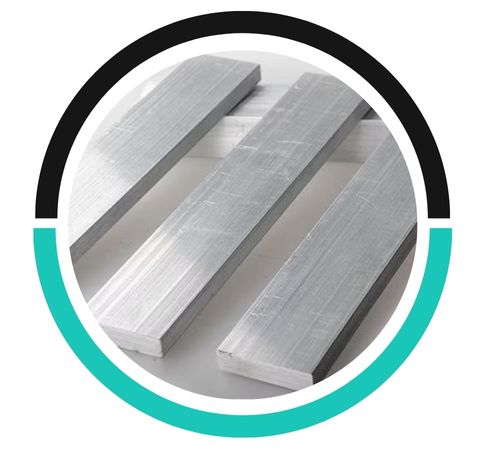

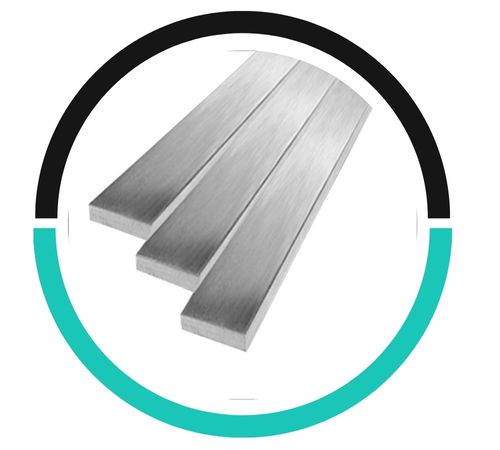

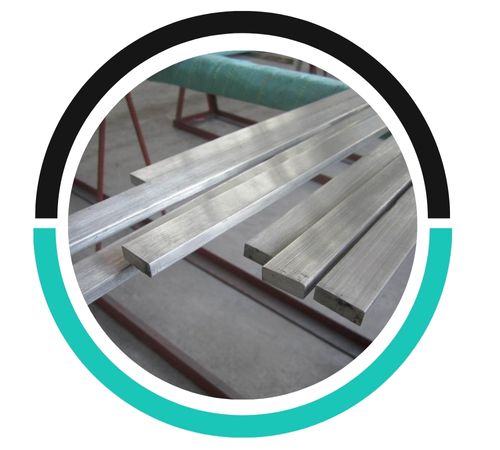

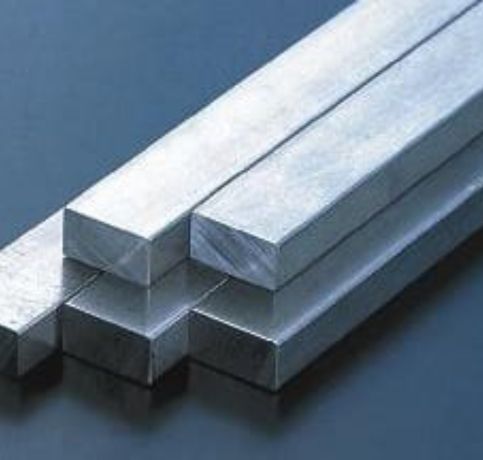

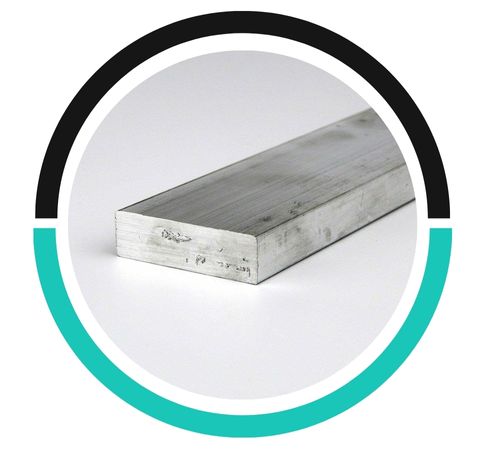

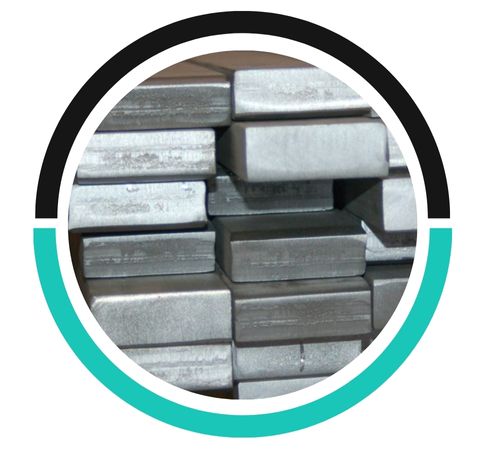

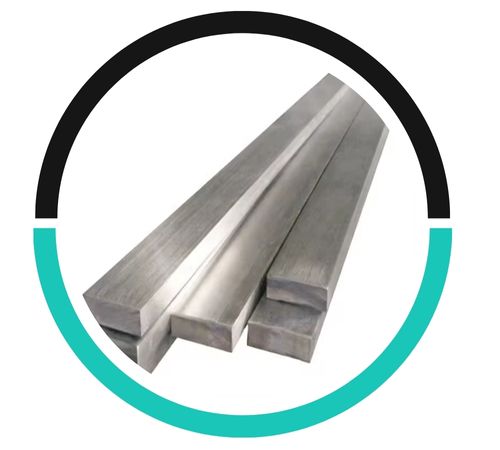

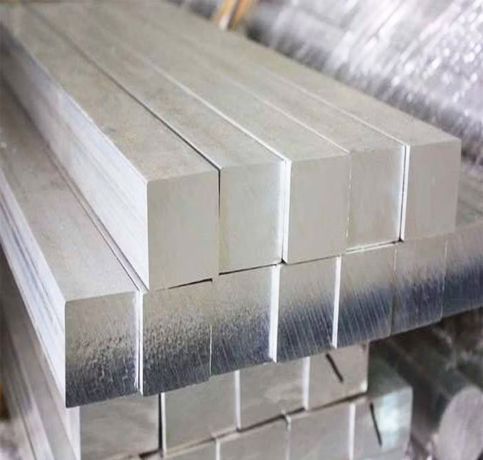

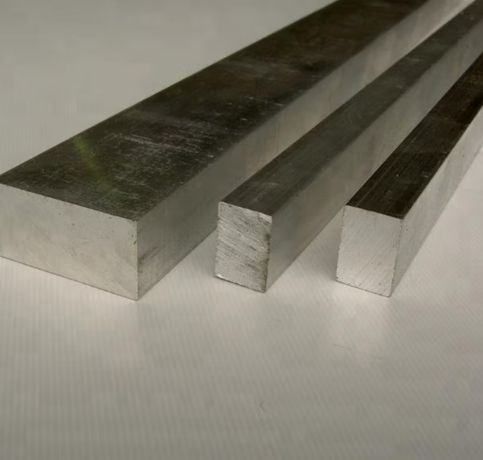

Isis Metals is a reputable manufacturer and supplier of Stainless Steel 431 Rectangular Bars, proudly based in Manila, Philippines. The company focuses on delivering high-performance stainless steel products that boast exceptional strength, hardness, and resistance to corrosion. Crafted from top-quality raw materials and utilizing precise production techniques, these rectangular bars adhere to international standards for quality and durability. Isis Metals offers Stainless Steel 431 Rectangular Bars in a variety of dimensions and finishes, serving industries like marine, aerospace, chemical, and engineering, where components face high stress, wear, and harsh environments.
These Stainless Steel 431 Rectangular Bars primarily consist of iron, chromium (15–17%), and nickel (1.25–2.5%), along with trace amounts of carbon, manganese, and silicon. This martensitic stainless steel strikes a great balance between high tensile strength (approximately 850–1000 MPa) and solid corrosion resistance. The alloy showcases remarkable hardness, toughness, and resistance to both chemical attacks and oxidation. It excels in settings that demand high mechanical strength and moderate corrosion resistance, especially when heat-treated or tempered for improved properties.
Stainless Steel Rectangular Bar Specification : ASTM A276 / A479, ASME SA276 / A479
Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 14mm-300mm
Thickness : 50 mm to 6000 mm Long
Length : 1 To 6 Meters, Custom Cut Length
Form : Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc.
| 431 | Max | Min |
| C | 0.20 | – |
| Cr | 17.00 | 15.00 |
| Fe | Balance | – |
| Mn | 1.00 | – |
| Ni | 2.50 | 1.25 |
| P | 0.040 | – |
| S | 0.030 | – |
| Si | 1.00 | – |
|
Typical Mechanical Properties at Elevated Temperatures, Hardened at 1010oC and Tempered at 30oC Above Working Temperature |
|||||||||||
|
Tempering Temperature oC |
510 |
570 |
620 |
||||||||
|
Working Temperature oC |
480 |
540 |
590 |
||||||||
|
Tensile Strengt Mpa |
1350 |
720 |
435 |
||||||||
|
Elongation in 50mm % |
15 |
20 |
26 |
||||||||
|
Room Temperature Hardness after Test |
HB |
440 |
330 |
280 |
|||||||
|
Rc |
47 |
37 |
30 |
||||||||
|
Grade |
UNS No |
Old British |
Euronorm |
Swedish SS |
Japanese JIS |
||
|
BS |
En |
No |
Name |
||||
|
431 |
S43100 |
431S29 |
57 |
1.4057 |
X17CrNi16-2 |
2321 |
SUS 431 |
Yes, Stainless Steel 431 Rectangular Bars can be used at high temperatures due to their excellent oxidation and corrosion resistance, typically up to 800°C.
The pressure rating of Stainless Steel 431 Rectangular Bars depends on the specific application and design, but they generally perform well under moderate pressure conditions in structural and machinery applications.
Yes, Stainless Steel 431 Rectangular Bars are fully recyclable and can be reused without losing their properties.
Stainless Steel 431 Rectangular Bars find extensive use in manufacturing pump shafts, valve components, bolts, marine fittings, and aircraft parts. Their impressive strength and resistance to torque and wear make them perfect for automotive and mechanical engineering applications. Moreover, they are well-suited for chemical processing, food industries, and offshore equipment, where durability and corrosion resistance are crucial. These bars offer a blend of mechanical reliability, ease of machining, and a long service life, making them a top choice for precision and high-performance industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
