Isis Metals is a reputable manufacturer and supplier of Stainless Steel XM19 Forgings, proudly based in Manila, Philippines. These forgings are celebrated for their remarkable mechanical properties and resistance to corrosion, crafted to adhere to strict international standards. By utilizing high-quality stainless steel and cutting-edge forging techniques, Isis Metals guarantees precise dimensions, an exceptional surface finish, and consistent quality. XM19 Forgings come in a variety of shapes and sizes, catering to the needs of critical industries like aerospace, chemical processing, oil and gas, and marine engineering, where high strength, durability, and the ability to withstand harsh environments are crucial.
The composition of Stainless Steel XM19 Forgings primarily includes iron, 17–19% chromium, 15–17% nickel, 2.2% molybdenum, along with trace amounts of manganese and silicon. This alloy is known for its outstanding resistance to chloride-induced stress corrosion cracking and pitting, as well as excellent performance at high temperatures. In terms of mechanical properties, XM19 forgings boast high tensile strength (around 930–1100 MPa), yield strength (approximately 600–850 MPa), and commendable ductility and toughness. The forging process refines the grain structure, which enhances fatigue resistance, wear resistance, and overall reliability in demanding applications.
| Standard | ASTM A182, ASME SA182 |
| Specification | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs. |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs. |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs. |
| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
| SS XM19 | 0.06 max | 0.10 max | 0.1 max | – | 0.03 max | 20.50 – 23.50 | – | 11.50 – 13.50 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| ksi – 95 | ksi – 50 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS XM19 | 1.3964 | S20910 |

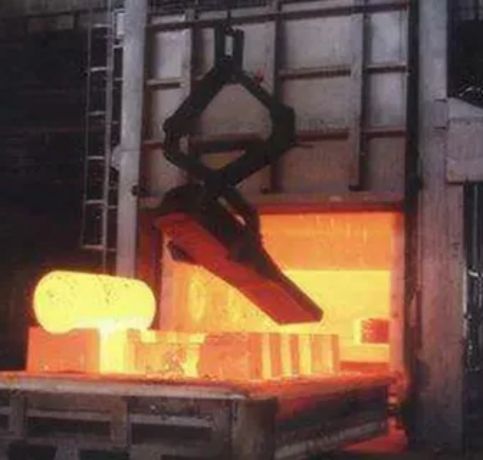

The forging process for Stainless Steel XM19 typically takes several hours, depending on the size and complexity of the part. Heating, shaping, and cooling stages contribute to the overall duration.
The ideal temperature range for forging Stainless Steel XM19 is between 2100°F to 2200°F (1149°C to 1204°C). It's important to maintain proper cooling to avoid distortion or cracking.
Yes, Stainless Steel XM19 (a high-strength alloy) can be forged into custom shapes. It offers excellent formability, allowing manufacturers to create parts with specific dimensions and designs as needed.
Stainless Steel XM19 Forgings find extensive use in aerospace components, chemical and petrochemical equipment, valves, pumps, and marine hardware. Their exceptional corrosion resistance makes them ideal for seawater applications, chemical processing environments, and high-temperature conditions. XM19 forgings deliver outstanding durability and a long service life in critical applications, ensuring reliability under mechanical stress, thermal fluctuations, and aggressive chemical exposure, making them the go-to choice for industries that require high-performance stainless steel solutions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
