Isis Metals is a reputable manufacturer and supplier of high-quality metal products located in Manila, Philippines. They specialize in Titanium Grade 1 forgings, which are celebrated for their remarkable purity, resistance to corrosion, and excellent formability. With a strong commitment to quality and precision, Isis Metals provides forging solutions that meet the rigorous standards of industries such as aerospace, marine, chemical, and medical. By blending advanced manufacturing techniques with dependable customer service, they have established themselves as a top choice for clients looking for reliable titanium products in both local and global markets.
When it comes to Titanium Grade 1 forgings, they are crafted from commercially pure titanium (with at least 99.5% Ti), making them the softest and most ductile option among all titanium grades. This grade is particularly noted for its outstanding corrosion resistance, especially in oxidizing and aqueous environments. In terms of mechanical properties, it boasts a tensile strength of around 240–350 MPa, good elongation (up to 24%), and excellent notch toughness. Its low levels of oxygen and iron enhance its formability and weldability, making it perfect for cold-forming processes. Additionally, Grade 1 titanium is lightweight, highly biocompatible, and performs exceptionally well even in extreme temperatures.
| Specifications | ASTM B381, ASME SB381 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | O | N | Fe | H | Ti | I |
| Min | – | – | – | – | – | 99.095 | – |
| max | 0.080 | 0.18 | 0.030 | 0.2 | 0.015 | 100 | 0.2 |
| Grades | Tensile KSI Min | Yield KSI Min/Max | % Elongation Min |
| Titanium Gr 1 | 35 | 25/45 | 24 |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Grade 1 | 3.7025 | R50250 |
Titanium Grade 1 forgings are commonly used in aerospace, chemical processing, marine, medical, and automotive industries due to their excellent corrosion resistance, lightweight, high strength, and biocompatibility properties.
Titanium Grade 1 forgings are made by heating titanium billets, then shaping them using compressive forces like hammering or pressing, followed by precision machining to achieve the desired specifications.

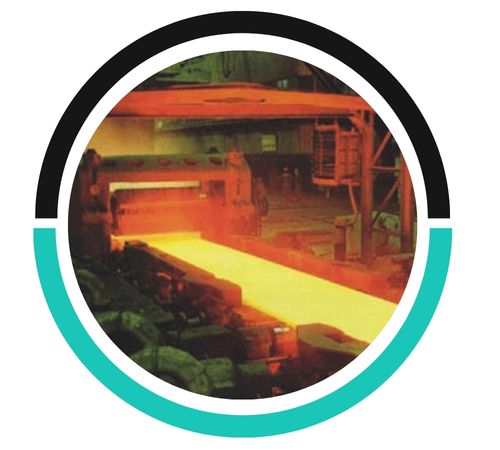

Open-die forging for Titanium Gr 1 involves compressing heated titanium between flat or contoured dies, allowing metal to deform freely, producing strong, customized components with excellent structural integrity.
Titanium Grade 1 forgings find extensive applications in industries that demand corrosion resistance, biocompatibility, and formability. In the chemical processing sector, they are utilized for heat exchangers, reactor vessels, and piping systems due to their ability to withstand chlorides and acidic conditions. In aerospace, they are used for non-critical airframe components. The medical industry relies on Grade 1 titanium for surgical instruments and implantable devices, thanks to its biocompatibility and non-toxic nature. In marine applications, it is employed in desalination systems and seawater piping. The grade’s excellent formability also makes it a versatile choice across various applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Isis Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Manila, Philippines
