Isis Metals, a reputable supplier of high-performance metals based in Manila, Philippines, specializes in precision-forged **Titanium Grade 5 Forgings** designed for applications that require exceptional strength, corrosion resistance, and lightweight characteristics. Known as Ti-6Al-4V, Grade 5 is the most popular titanium alloy, celebrated for its outstanding mechanical properties and structural reliability. Isis Metals offers forged components in a variety of shapes and sizes, crafted to exacting tolerances for use in aerospace, medical, marine, and industrial sectors. With a commitment to quality and responsive service, Isis Metals provides dependable titanium forgings engineered to excel in extreme pressure, temperature, and corrosive environments in critical applications.
Titanium Grade 5 (Ti-6Al-4V) is composed of about 6% aluminum, 4% vanadium, and the remainder titanium. This alpha-beta alloy boasts an impressive blend of strength, corrosion resistance, and fatigue performance. It typically exhibits a tensile strength ranging from 895 to 965 MPa (130,000 to 140,000 psi) and a yield strength of around 828 MPa (120,000 psi), all while maintaining an excellent strength-to-weight ratio. Grade 5 also retains good ductility and toughness, performing reliably in both high and low-temperature conditions. It can be heat-treated and welded with the right techniques. These mechanical and chemical properties make it the preferred choice for high-performance forged parts in critical applications.
| Specifications | ASTM B381, ASME SB381 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |

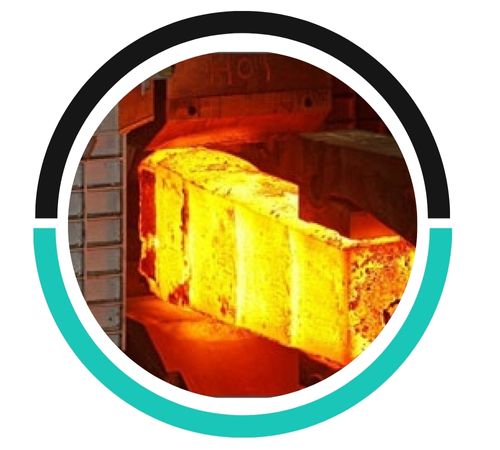

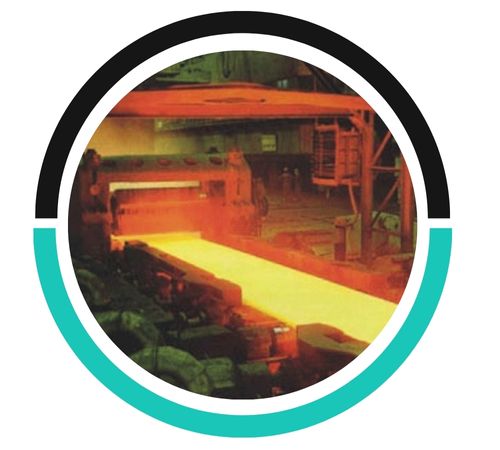

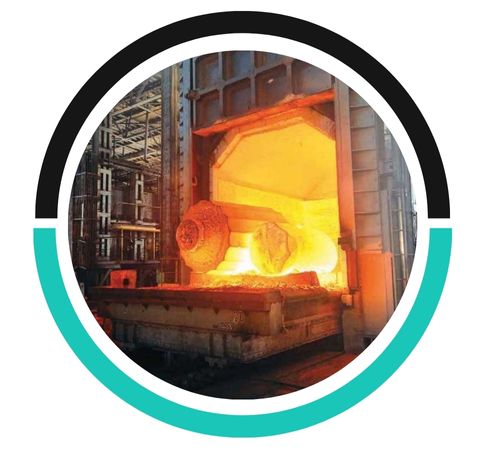

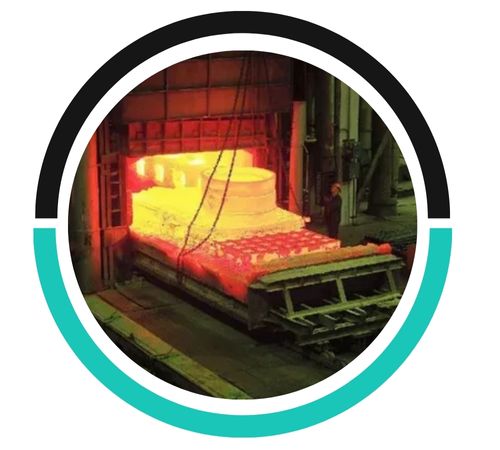

| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | R56400 |
Durability of Titanium Grade 5 forgings is ensured by proper heat treatment, controlled forging process, precise die design, alloy composition, and maintaining optimal surface finish, enhancing strength, corrosion resistance, and fatigue resistance.
Titanium Gr 5 forgings are commonly used in aerospace, automotive, medical, marine, and defense industries, providing high strength, corrosion resistance, and lightweight properties for critical components and high-performance applications.

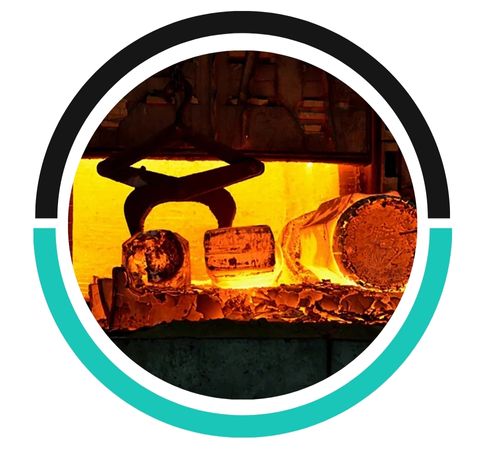

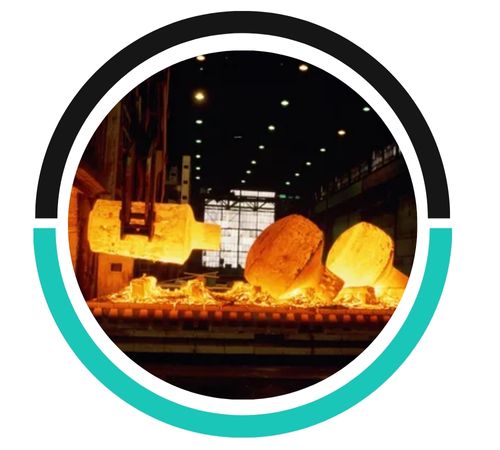

Closed-die forging in Titanium Gr 5 production involves shaping titanium by compressing it between two shaped dies, ensuring precise dimensions, high strength, and improved material properties for demanding applications.
Titanium Grade 5 Forgings find extensive use in industries that require robust, lightweight, and corrosion-resistant components. In aerospace, they are utilized for turbine components, structural airframe parts, and landing gear, thanks to their impressive strength-to-weight ratio. In the medical sector, they are employed for…
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
