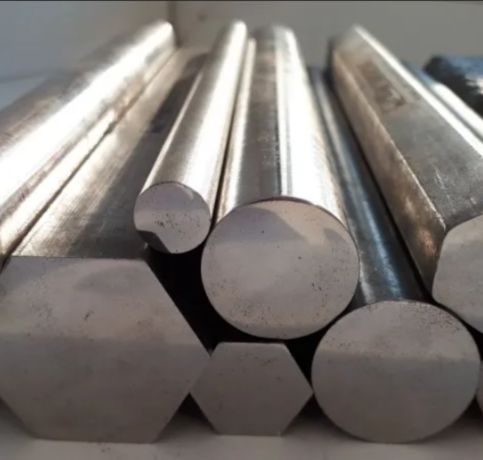

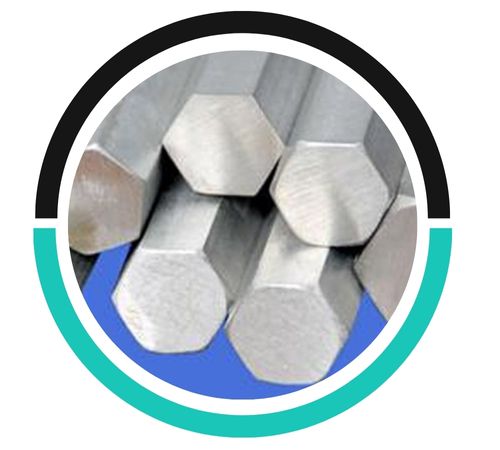

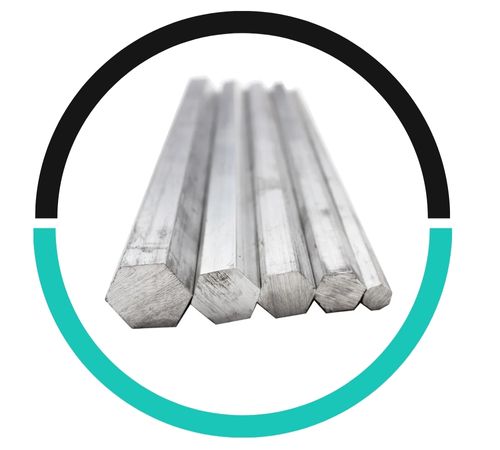

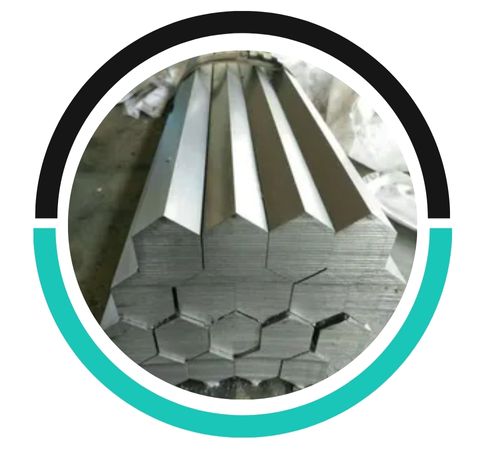

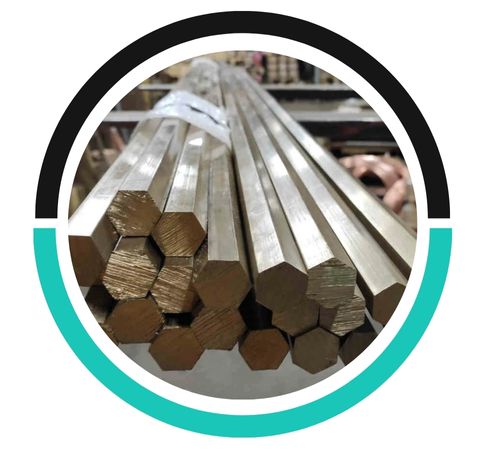

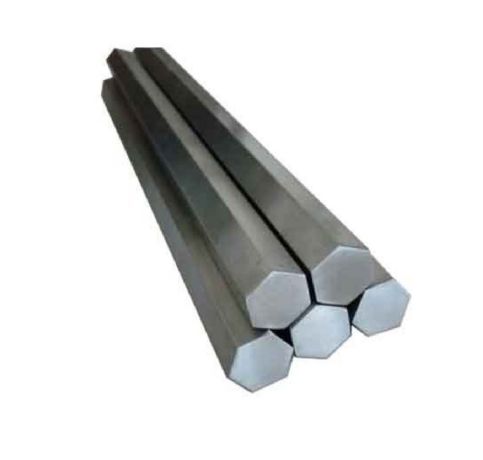

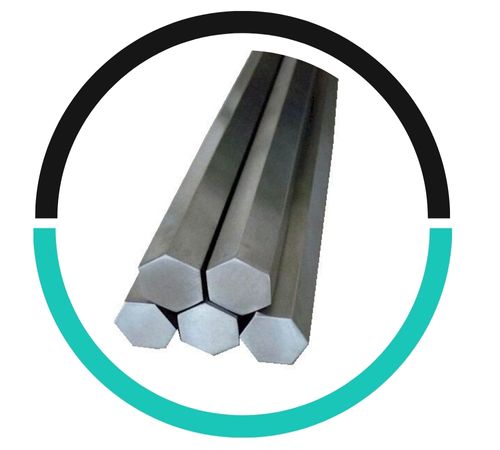

Isis Metals of Manila, Philippines, is a prominent distributor of high-grade engineering metals, with Duplex Steel Hex Bars as their specialty. These hexagonal bars, with high strength, corrosion resistance, and fine weldability, are best suited to industries where toughness and reliability are key. Their hexagonal shape is ideal for bolted joints, shafts, and structural parts that have high torsional strength requirements. Isis Metals provides an extensive line of sizes and grades, guaranteeing clients receive materials specifically suited to their project needs. With skilled knowledge and reliable service, we deliver sound solutions for challenging industrial uses.
Duplex Steel Hex Bars have a two-phase microstructure, comprising approximately equal amounts of austenite and ferrite, with higher strength and corrosion resistance than typical stainless steels. The alloy contains 22–25% Chromium, 5–7% Nickel, 3–3.5% Molybdenum, and trace amounts of Nitrogen. This composition provides high tensile and yield strength, high resistance to pitting, crevice corrosion, and stress corrosion cracking, and good weldability. The hexagonal design improves the application of torque and mechanical performance and is thus ideal for fasteners, shafts, and structural parts for harsh environments.
Standards : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 10 mm To 100 mm Dia in
Length : 100 mm TO 6000 mm Length.
Specifications : ASTM A276, A479 / ASME SA276, SA479
Form : Rectangular

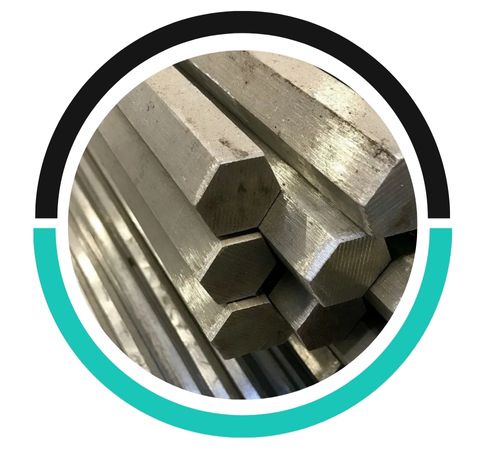

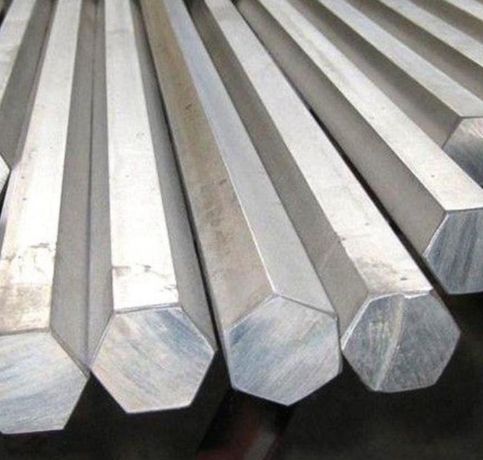

Finish : Bright, Polish & Black
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
S31803 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
| S31803 / S32205 | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
Yes, Duplex Steel Hex Bars are fully recyclable. They can be melted down and reused without losing their essential properties, making them an environmentally sustainable option for various applications.
Duplex Steel Hex Bars have inherent corrosion resistance due to their composition. However, in highly aggressive environments, additional coatings or treatments may be necessary to enhance their longevity and performance.
To choose the right Duplex Steel Hex Bar, consider factors such as mechanical strength, corrosion resistance, temperature conditions, and compatibility with your application’s specific industry standards and environmental factors.
Duplex Steel Hex Bars are commonly utilized in industries that need strength, corrosion resistance, and reliability to perform in hostile conditions. They are utilized in the oil and gas industry as structural supports for offshore platforms, fasteners, and shafts. They are utilized in the marine industry to make marine engineering components and equipment that is exposed to seawater and in the chemical processing industry for reactors, piping, and processing plant components. They are also used in pulp and paper manufacture equipment. Oil and gas, marine, chemical, and paper industries rely on Duplex Steel Hex Bars due to their endurance, mechanical strength, and lasting performance under harsh conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
