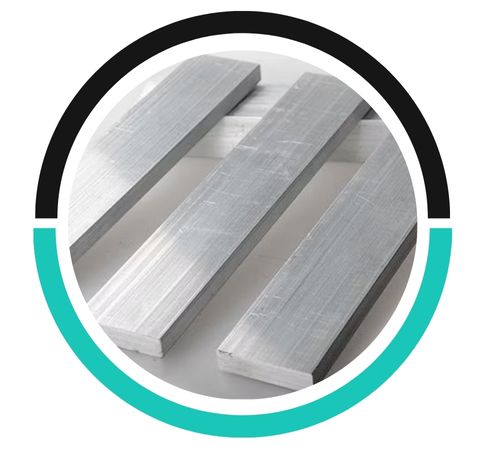

Isis Metals, a Manila, Philippines-based company, is a premier provider of high-quality Duplex Steel Rectangular Bars, engineered for rigorous industrial use. Renowned for their superior strength, resistance to corrosion, and longevity, these bars integrate the finest attributes of austenitic and ferritic stainless steel, delivering an unmatched balance of mechanical performance and durability. Perfect for demanding conditions where common stainless steel will fail, Isis Metals holds its Duplex Steel Rectangular Bars to high standards of quality. Used by construction, chemical processing, and marine engineering industries, the company offers trusted, high-performance materials that provide strong, long-lasting performance in mission-critical applications.
Duplex Steel Rectangular Bars have a two-phase microstructure of approximately equal amounts of austenite and ferrite. Common compositions, like 2205 grade, contain 22% Chromium, 5–6% Nickel, 3% Molybdenum, and Nitrogen, which give them greater strength and resistance to corrosion than the common stainless steels. Their mechanical properties are high yield strength, good resistance to stress corrosion cracking, and good ductility. These bars are also found to possess weldability and toughness, thus they can be used in structural and mechanical uses in harsh conditions, such as marine, chemical processing, and oil and gas applications.
Standards : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 10 mm To 100 mm Dia in
Length : 100 mm TO 6000 mm Length.
Specifications : ASTM A276, A479 / ASME SA276, SA479
Form : Rectangular
Finish : Bright, Polish & Black
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
S31803 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
| S31803 / S32205 | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
Duplex Steel Rectangular Bars can withstand moderate to high temperatures, but their performance may degrade at temperatures above 300°C (572°F). For extreme heat, other alloys like austenitic stainless steel are preferred.
Yes, Duplex Steel Rectangular Bar are highly recyclable. Their durable composition allows them to be melted down and repurposed in various applications without significant loss of material properties.
Duplex Steel Rectangular Bars have excellent natural corrosion resistance due to their alloy composition. However, in highly aggressive environments, additional coatings or treatments may be recommended for enhanced protection.
Duplex Steel Rectangular Bars are extensively employed where durability, corrosion resistance, and strength are primary requirements. In building construction, they serve load-carrying structures and frames, particularly in corrosive environments. The oil and gas sector uses them in offshore platforms, pipelines, and seawater and aggressive chemicals-exposed structural parts. Chemical plants utilize them for reactors, tanks, and piping. Other uses include desalination plants, pulp and paper plants, and machinery parts. Construction, marine engineering, oil and gas, and chemical processing industries depend on these bars to provide strong, durable performance in challenging projects.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
