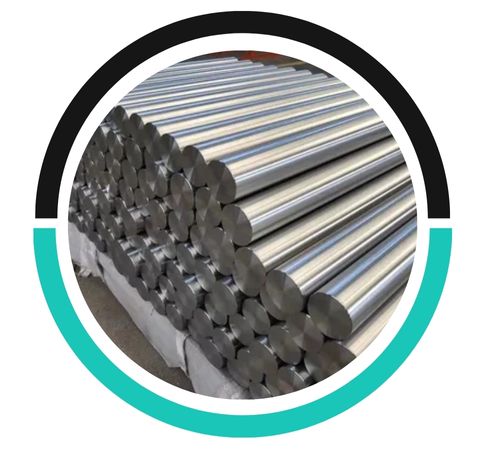

Isis Metals is a well-respected manufacturer and supplier located in Manila, Philippines, specializing in top-notch **Nimonic 86 Bars and Rods** that are crafted for high-performance industrial applications. These bars and rods are celebrated for their remarkable strength and their ability to resist oxidation and corrosion, making them perfect for extreme environments, especially in high-temperature settings. Thanks to cutting-edge production methods and rigorous quality checks, Isis Metals guarantees that every product adheres to international standards, providing reliability and performance across various sectors, including aerospace, power generation, and chemical processing, both in the Philippines and around the globe.
Nimonic 86 Bars and Rods are mainly made up of **nickel and chromium**, with added elements like **molybdenum, titanium, cobalt, and aluminum** to boost their mechanical strength and thermal stability. This alloy showcases excellent tensile and creep resistance, even at temperatures over **800°C**. It boasts high hardness, good ductility, and outstanding oxidation resistance under stress. The thoughtful combination of its chemistry and microstructure ensures impressive fatigue strength, a long service life, and dimensional stability in challenging high-temperature conditions.
| Grade | Nimonic 86 – UNS |
|---|---|
| Specification | ASTM UNS |
| Standard | ASTM, ASME, API, GB, AISI, DIN, EN, SUS, UNS ASTM B166, ASTM B160, ASTM B164, ASTM B446, ASTM B637, ASTM B408, ASTM B425, ASTM B574, ASTM B335, ASTM B473, ASTM B649 |

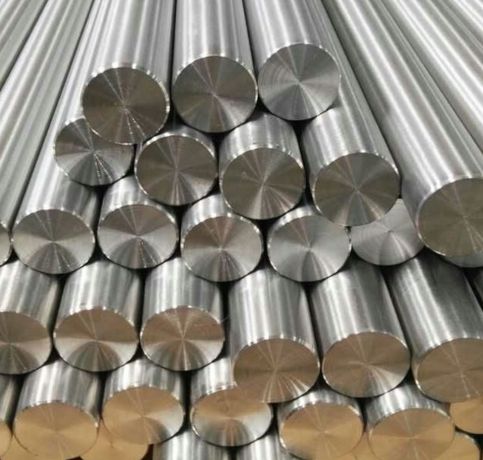

| Nimonic 86 Round bar size | Diameter: 3mm~800mm |
| Nimonic 86 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

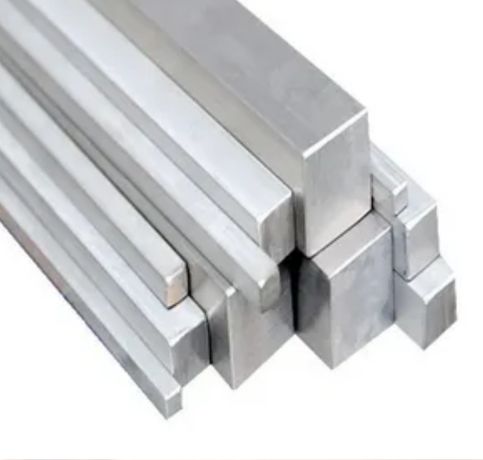

| Nimonic 86 Square bar size | 4mm*4mm~100mm*100mm |

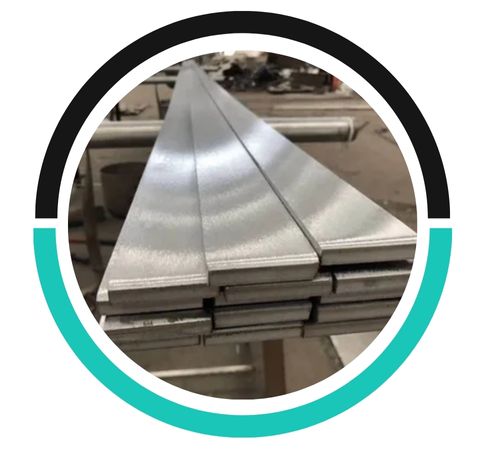

| Nimonic 86 Flat bar size | Thickness: 2mm~100mm |
| Width: 10mm~500mm | |

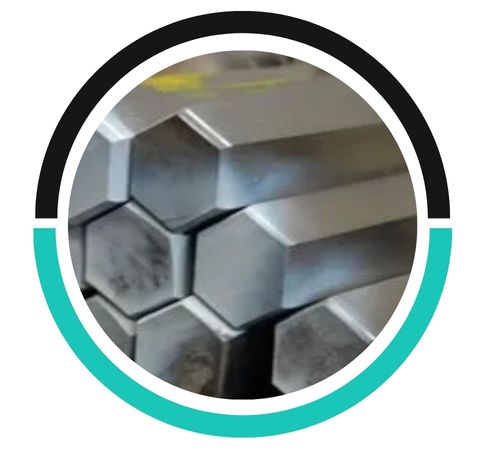

| Nimonic 86 Hex Bar size | 2mm~100mm |
| Nimonic 86 Billet Size | 1/2″ to 495mm Diameter |

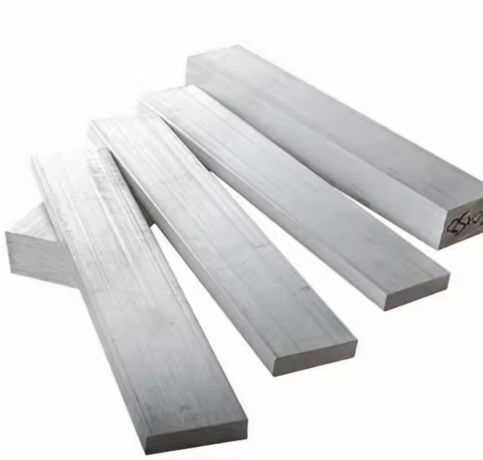

| Nimonic 86 Rectangles Size | 33mm x 30mm to 295mm x 1066mm |
| LENGTHS | 12 RANDOM LENGTHS AND LONG BARS:15 20 RANDOM LENGTHS |
| Nimonic 86 Round Bar Standard Dimensions | Diameter / Height:As the customer required |
| Finish | Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
| Technique | Nimonic 86 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |

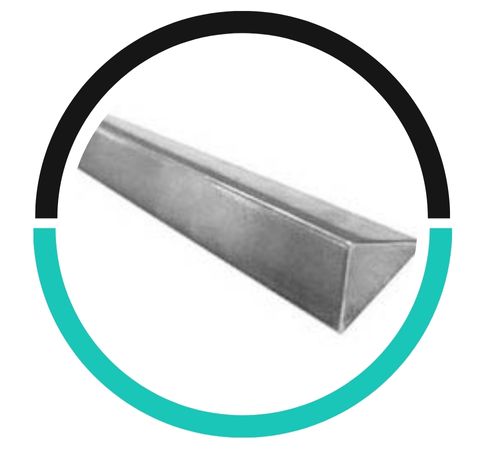

| Form | Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc. |
| Weight% | Ni | Cr | Mo | Ce | C |
|---|---|---|---|---|---|
| Alloy 86 | 65 | 25.0 | 10.0 | 0.03 | 0.05 max |
| Material | Treatment | Temperature °C | UltimateTensile Strength MPa | Yield Strength (0.2% Offset) MPa | Elongation on 5.65 √ 50(%) |
|---|---|---|---|---|---|
| Alloy 86 Bar | Heat Treatment 4h/1150°C/ AC | 300 | 251 | 692 | 49 |
| Allloy 86 Bar | Heat Treatment 4h/1150°C/ AC | 500 | 243 | 661 | 54 |
| Allloy 86 Bar | Heat Treatment 4h/1150°C/ AC | 700 | 239 | 557 | 56 |
| Allloy 86 Bar | Heat Treatment 4h/1150°C/ AC | 850 | 173 | 319 | 69 |

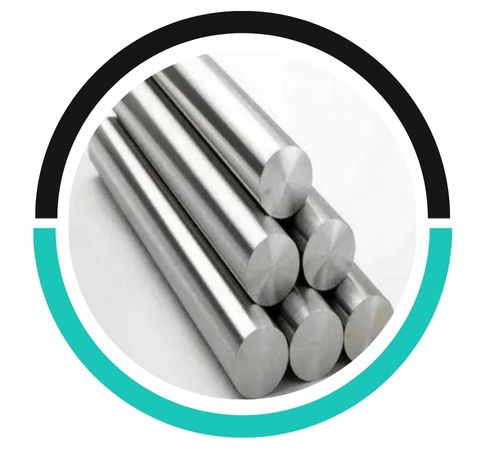

Nimonic 86 rods are available in various sizes ranging from 6mm to 100mm in diameter, with finishes including hot-rolled, cold-drawn, and polished options for enhanced surface quality.
Yes, Nimonic 86 rods can be supplied in both polished and matte finishes, depending on the supplier and specific requirements for your application or aesthetic preferences.
Nimonic 86 rods typically come in standard sizes ranging from 0.25 inches to 3 inches in diameter, with lengths varying between 3 feet to 12 feet, depending on the supplier.
Nimonic 86 Bars and Rods find extensive use in **gas turbines, jet engines, and turbocharger components** due to their exceptional strength at high temperatures and resistance to oxidation. They are also essential in **nuclear reactors, heat exchangers, and chemical processing plants**, where resistance to corrosion and thermal fatigue is crucial. In the **automotive and power generation industries**, these rods are utilized for parts like exhaust valves and turbine blades. Their remarkable performance under intense mechanical and thermal stress makes them a go-to material for **aerospace and energy sector applications** worldwide.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Isis Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Manila, Philippines
