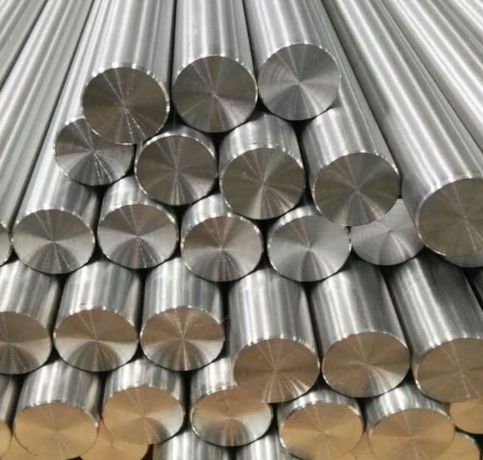

Isis Metals is a reputable manufacturer and supplier located in Manila, Philippines, focusing on high-performance **Nimonic 90 Bars and Rods**. Known for their exceptional strength, impressive oxidation resistance, and remarkable performance at high temperatures, these bars and rods are crafted to meet the rigorous demands of industries like aerospace, power generation, and chemical processing. With a strong dedication to quality and precision engineering, Isis Metals delivers Nimonic 90 Bars and Rods that promise long-lasting reliability, durability, and efficiency in challenging environments where both corrosion and heat resistance are crucial.
Nimonic 90 Bars and Rods are made from a nickel-chromium-cobalt alloy, featuring around 60% nickel, 20% chromium, and 15% cobalt, along with small amounts of titanium and aluminum for added strength. This alloy showcases high tensile strength, excellent creep resistance, and outstanding oxidation stability up to 950°C. It retains remarkable hardness and fatigue strength even when subjected to thermal stress. With a tensile strength of approximately 1250 MPa and a yield strength close to 850 MPa, Nimonic 90 offers impressive performance in high-temperature and corrosive environments.
Dimension : EN, DIN, JIS, ASTM, BS, ASME, AISI
Grade : Nimonic 90 (UNS No. N07090) Round Bars
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.
Surface : Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline
Application : Chemical process, Food processing, Petrochemical, Pollution control, Pulp and Paper, Refining
Condition : Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished.
Our Nimonic Alloy 90 Round Bars conforms to NACE MR0175/ISO 15156
| Grade | C | Cr | Co | Ti | Al | Si | Cu | Mn |
| Nimonic Alloy 90 | 0.2 max | 18 – 21 | 15 – 21 | 2 – 3 | 1 – 2 | 1.0 max | 0.2 max | 1.0 max |
| Density | Melting Point | Coefficient of Expansion | Modulus of Rigidity | Modulus of Elasticity (Annealed + Aged) (Spring Temper + Aged) |
|---|---|---|---|---|
| 8.18g/cm³ | 1370°C | 12.7 μm/m °C (20 – 100°C) | 82.5 kN/mm² | 213 kN/mm² 227 / 240 kN/mm² |
| STANDARD | WERKSTOFF NR. | UNS |
| Nimonic Alloy 90 | – | N07090 |
Yes, Nimonic 90 bars are highly suitable for high-temperature applications. They are known for excellent strength, oxidation resistance, and stability at elevated temperatures, making them ideal for aerospace and turbine components.
Yes, Nimonic 90 bar can be welded, but it requires careful control of heat and welding parameters. Typically, TIG (Tungsten Inert Gas) welding is recommended for best results.
Nimonic 90 rod is available in various sizes, typically from 1/8" to 12" in diameter. Common finishes include cold drawn, hot rolled, or bright polished, depending on the supplier.
Nimonic 90 Bars and Rods find extensive use in high-temperature and high-stress settings. They are commonly utilized in **gas turbine engines**, **jet engine components**, **turbine blades**, **fasteners**, and **exhaust systems** due to their excellent thermal stability. In the **power generation sector**, they are essential for **steam turbine parts** and **nuclear reactors**. The **chemical and petrochemical industries** rely on these bars for **valves, heat exchangers, and reactor vessels** where corrosion resistance is critical. The unique combination of strength, oxidation resistance, and durability in Nimonic 90 makes it perfect for both industrial and aerospace engineering applications that demand consistent performance under extreme conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
