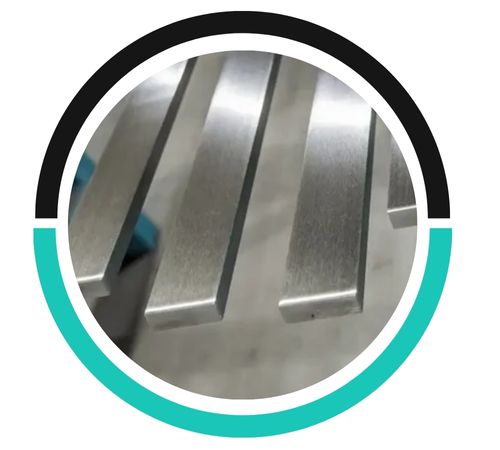

Isis Metals stands out as a reliable manufacturer and supplier of Stainless Steel 304L Flat Bars in Manila, Philippines. We take pride in delivering top-notch stainless steel products that cater to a variety of industrial needs. Our flat bars are celebrated for their exceptional corrosion resistance, impressive weldability, and sleek finish. Crafted with cutting-edge technology and rigorous quality control, our Stainless Steel 304L Flat Bars ensure high strength, durability, and precision. Thanks to their lower carbon content, they effectively resist carbide precipitation during welding, making them perfect for environments that require outstanding hygiene, strength, and corrosion resistance across various industries.
Stainless Steel 304L Flat Bars are made up of chromium (18–20%), nickel (8–12%), and a low carbon content (≤0.03%), which boosts their corrosion resistance and weldability. They showcase a tensile strength of about 485 MPa and a yield strength of roughly 170 MPa, along with excellent elongation and toughness. This alloy is known for its superior resistance to oxidation and intergranular corrosion. Moreover, Stainless Steel 304L Flat Bars maintain their strength and ductility even at cryogenic and elevated temperatures, providing remarkable mechanical performance for structural and chemical processing applications.
| Specification | EN 10272, EN 10088-3 Grade 304/ 304L, 316/ 316L |
|---|---|
| Standard | API, ASME, SUS, DIN, EN, GB, UNS, ASTM, AISI |
| Sizes | 3mm to 800mm diameter |
| Length |
|
| Finish | Cold Drawn Turned, Bright Drawn, Polished, Rough Turned, Centreless Ground, Bright, Annealed, Smooth Turned, Peeled, Grinding, Black |
| Tolerances | H12, H11, K11, K12, H10, H8, H9, H13, K10, K9 |
| Surface Finish | 1D, HL, 8K, NO.4, 2D, NO.1, NO.3, 2B, BA |
| Production Method | Rolled / Forged |
| Characteristics |
|
| Value Added Services at Suraj Metal |
|
| Other available forms | Forging, Profiles, T-Bar, Rod, Hollow, Triangle, Channel, Threaded, Ingot, Rounds, Rectangle, Blocks, Billet, I/H, Half-Round, Angle, Precision-Ground |
| Element | C | Cr | Mn | Ni | P | S | Si |
|---|---|---|---|---|---|---|---|
| SS 304L | 8.0 – 11.0 | 18.0 – 20.0 | 2.0 max | 8.0 – 11.0 | 0.045 max | 0.03 max | 1.0 max |
| Element | Tensile Strength | Yield Strength | Elongation | Reduction in Area | Hardness |
|---|---|---|---|---|---|
| SS 304L | Psi – 85,000 | Psi – 45,000 | 50% | 55% | Rb 180 |
| FlatS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
| FlatS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
The typical thickness range of Stainless Steel 304L flat bars varies from 1/16 inch (1.5 mm) to 6 inches (150 mm). The exact thickness depends on the application requirements, with custom sizes available for specific industry needs.
Yes, Stainless Steel 304L flat bars can be welded using various techniques, such as TIG, MIG, or stick welding. Its excellent weldability is one of its key features, though proper precautions should be taken to avoid distortion or corrosion.
You’ll find Stainless Steel 304L Flat Bars in a variety of industries, including food processing, pharmaceuticals, chemical manufacturing, and marine engineering, thanks to their outstanding corrosion resistance and hygiene features. They’re perfect for creating tanks, pressure vessels, heat exchangers, and structural components that face corrosive or moist conditions. Additionally, these flat bars are utilized in architectural frameworks, automotive parts, and piping systems where durability and weldability are essential. Plus, Stainless Steel 304L Flat Bars are the go-to choice for applications that demand long-lasting performance, resistance to oxidation, and aesthetic appeal.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Isis Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Manila, Philippines
