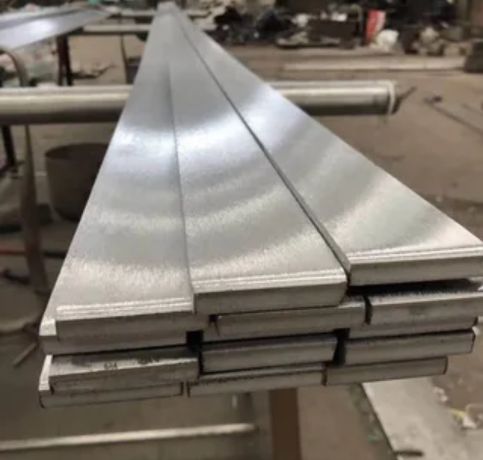

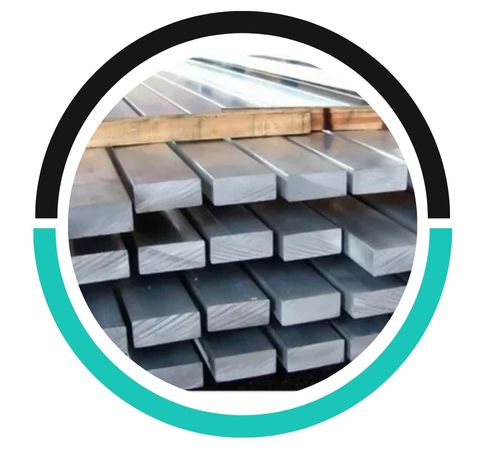

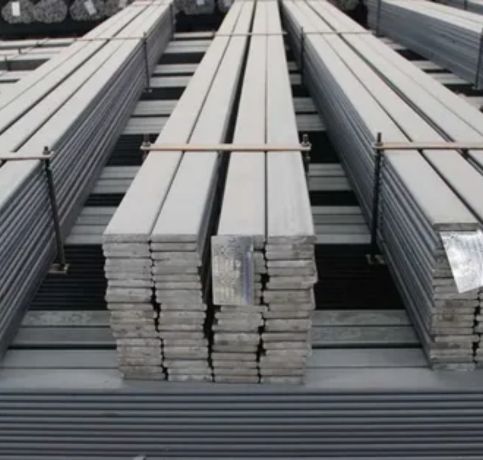

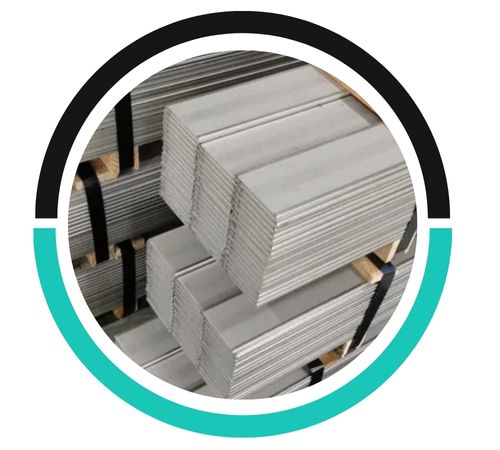

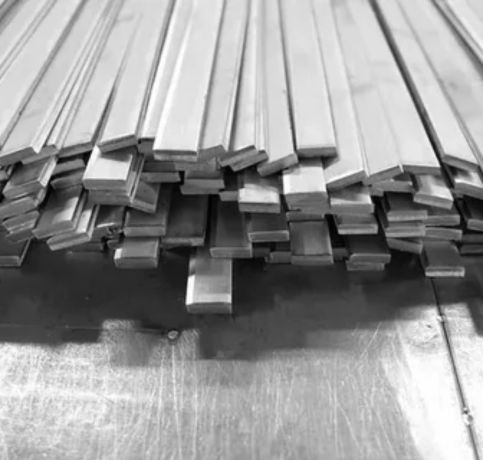

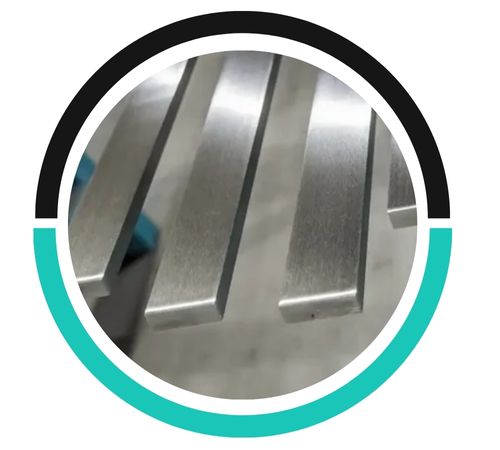

Isis Metals is a trusted manufacturer and supplier of Stainless Steel 317L Flat Bars located in Manila, Philippines. We pride ourselves on delivering top-notch products for both industrial and commercial applications. Our Stainless Steel 317L Flat Bars are low-carbon, molybdenum-bearing austenitic stainless steels that offer exceptional corrosion resistance, particularly in acidic and chloride-rich settings. Built for durability and performance, these flat bars boast excellent weldability, formability, and mechanical strength. With our commitment to advanced manufacturing standards and rigorous quality control, Isis Metals guarantees that every Stainless Steel 317L Flat Bar meets the highest standards for the chemical processing, marine, and power generation sectors.
Stainless Steel 317L Flat Bars are made up of chromium (18–20%), nickel (11–15%), molybdenum (3–4%), and carbon (≤0.03%), along with small amounts of manganese, silicon, and phosphorus. The higher molybdenum content enhances resistance to pitting and crevice corrosion in environments with chlorides. These bars have a tensile strength of around 515 MPa, yield strength of 205 MPa, and an elongation of 40%, ensuring they are tough and easy to work with. Stainless Steel 317L Flat Bars maintain their strength and stability even at high temperatures while providing excellent resistance to intergranular corrosion and chemical attacks.
Standard ASTM A276, A479 / ASME SA276, SA479
Range 3.17 MM TO 350 MM DIA
Diameter 25mm to 152mm
Size Tolerance h8, h9(DIN 671), h10, h11, ASTM A484, DIN 1013

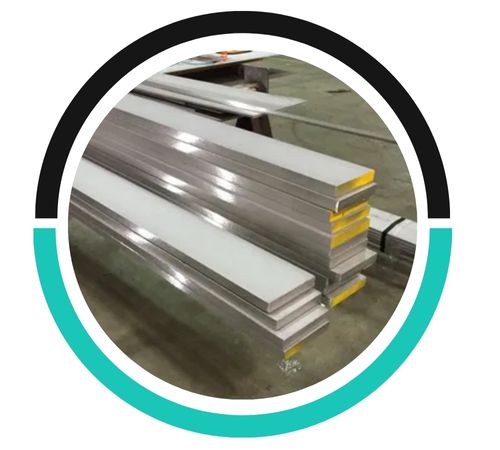

Finish Bright, Polish & Black
Form Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc.,

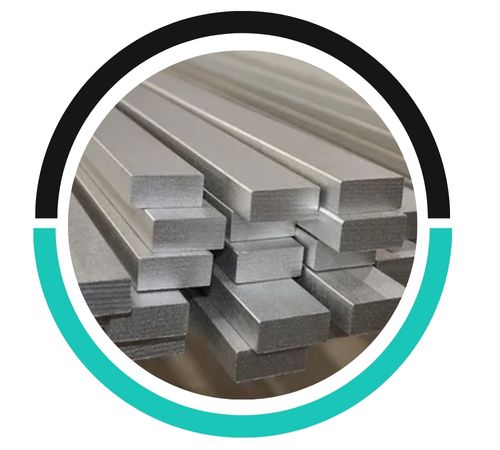

Condition Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished
Other Services Machining (CNC), Centreless Grinding (CG), Heat Treatment, Anneling, Pickling, Polish, Rolling, Forging, Cutting, Bending, Minor Fabrication
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317L | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
|---|---|---|---|---|
| SS 317L | 1.4449 | S31700 | SUS 317 | – |
Stainless Steel 317L is primarily composed of iron, with high levels of chromium (18-20%) and nickel (11-15%), along with molybdenum (3-4%) for enhanced corrosion resistance. It also contains small amounts of carbon, manganese, silicon, and phosphorus.
Yes, Stainless Steel 317L Flat Bar is highly resistant to corrosion, especially in harsh environments. Its high chromium, nickel, and molybdenum content enhances resistance to pitting, crevice corrosion, and general oxidation, making it ideal for chemical and marine applications.
Yes, Stainless Steel 317L Flat Bar can be welded easily using standard welding techniques such as TIG, MIG, and SMAW. Its low carbon content minimizes carbide precipitation during welding, ensuring strong joints and excellent corrosion resistance in the weld area.
Stainless Steel 317L Flat Bars find extensive use in the chemical processing, pulp and paper, marine, and petrochemical industries, thanks to their remarkable resistance to sulfuric acid, phosphoric acid, and chlorides. They are perfect for creating heat exchangers, condensers, evaporators, and marine fittings, as well as components in pharmaceutical and food processing equipment that require hygienic and corrosion-resistant materials. Additionally, these flat bars are utilized in flue gas scrubbers, storage tanks, and pressure vessels, where strength and durability are crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
