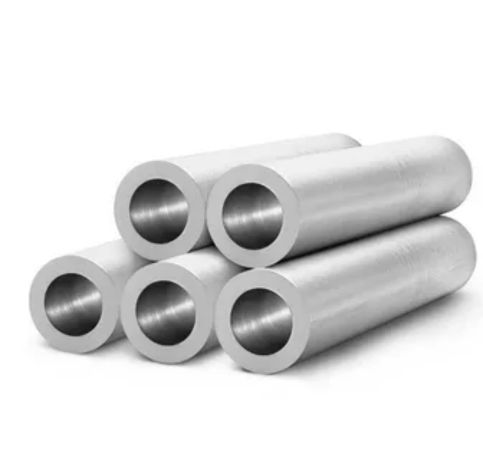

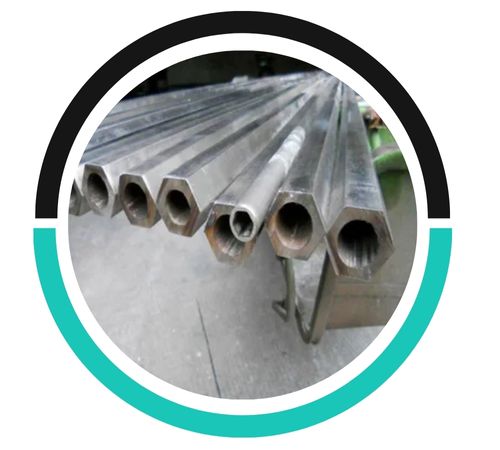

Isis Metals, a well-respected manufacturer and supplier located in Manila, Philippines, specializes in high-quality Stainless Steel 430 Hollow Bars that are crafted for outstanding corrosion resistance, durability, and machinability. These hollow bars are made with precision and adhere to international quality standards, making them perfect for a variety of industrial and engineering applications. Stainless Steel 430, known for its ferritic properties, offers excellent oxidation resistance and moderate corrosion protection while ensuring good formability and polishability. Isis Metals guarantees precise dimensions, smooth internal and external surfaces, and dependable mechanical performance, making these hollow bars a great choice for fabrication and structural projects.
Stainless Steel 430 Hollow Bar is a ferritic stainless steel alloy that includes 16–18% chromium, up to 1% manganese, 1% silicon, and a maximum of 0.12% carbon. The high chromium content ensures excellent resistance to oxidation and scaling, even at elevated temperatures. These bars boast a tensile strength of around 450–600 MPa, along with good ductility and moderate corrosion resistance. SS 430 is magnetic, offers excellent polishability, and is easy to machine. While it can’t be hardened through heat treatment, it retains its strength and formability in mildly corrosive and oxidizing environments.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Range : Range – 3.17mm to 350mm dia
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 430 | 0.12 | 18.0 | 1.25 | – | 0.06 | 0.15 | 1.00 |
| Element | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell (HB) max) |
| SS 430 | 552 | 379 | 25 | 262 |
| Hollow Bar | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.49 | 1.60 |
| 18 | 0.62 | 2.02 |
| 20 | 0.76 | 2.49 |
| 22 | 0.92 | 3.02 |
| 25 | 1.19 | 3.90 |
| 28 | 1.49 | 4.89 |
| 28 | 1.49 | 4.89 |
| 30 | 1.71 | 5.61 |
| 32 | 1.95 | 6.38 |
| 36 | 2.46 | 8.08 |
| 38 | 2.74 | 9.00 |
| 40 | 3.04 | 9.97 |
| 45 | 3.85 | 12.62 |
| 50 | 4.75 | 12.62 |
| 56 | 8.96 | 19.55 |
| 60 | 6.84 | 22.44 |
| 65 | 8.03 | 26.34 |
| 70 | 9.31 | 30.54 |
| 75 | 10.69 | 35.06 |
| 80 | 12.16 | 39.89 |
| 90 | 15.39 | 50.49 |
| 100 | 19 | 62.34 |
SS 430 offers good corrosion resistance in mildly corrosive environments but is less resistant than austenitic stainless steels like SS 304 or 316. It is more prone to corrosion in harsh environments, especially those with high chloride content.
SS 430 hollow bars typically range in outer diameters from 20mm to 300mm and wall thicknesses from 2mm to 30mm. Tolerances vary but are generally within ±0.5mm for diameter and ±0.2mm for wall thickness, depending on the manufacturer.
Stainless Steel 430 Hollow Bars are commonly utilized in applications that demand corrosion resistance, formability, and visual appeal. They are perfect for architectural structures, heat exchangers, kitchen equipment, exhaust systems, and decorative fittings. Additionally, these hollow bars are found in automotive components, appliance parts, and mechanical assemblies due to their magnetic properties and durability. SS 430 Hollow Bars are also used in the food processing, construction, and chemical industries, where their resistance to oxidation and cost-effectiveness are essential.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
