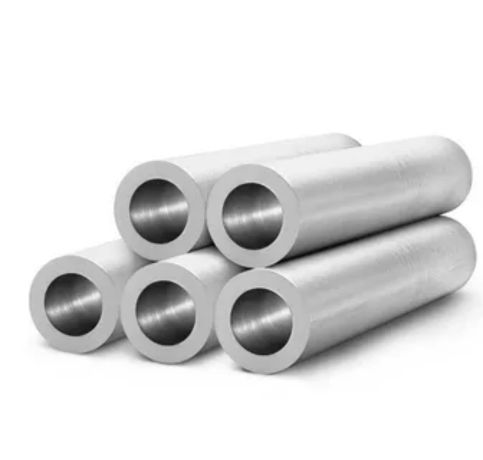

Isis Metals is a well-respected manufacturer and supplier of Stainless Steel 347H Hollow Bars, located in Manila, Philippines. We focus on delivering high-performance stainless steel products tailored for industrial and engineering needs. Our Stainless Steel 347H Hollow Bars are crafted for outstanding strength, durability, and resistance to heat and corrosion. Made from top-quality raw materials and cutting-edge manufacturing techniques, these bars are built to withstand high-temperature and high-pressure environments. At Isis Metals, we guarantee that every Stainless Steel 347H Hollow Bar complies with international standards, making them perfect for demanding applications in chemical processing, power generation, and heat-intensive settings.
Stainless Steel 347H Hollow Bars are a type of austenitic stainless steel, containing chromium (17–19%), nickel (9–13%), carbon (0.04–0.10%), manganese (2% max), silicon (1% max), and niobium (10×C–1%) to prevent carbide precipitation. These bars boast a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. They are known for their excellent oxidation resistance, creep strength, and thermal stability at high temperatures. Stainless Steel 347H Hollow Bars deliver exceptional mechanical performance, good weldability, and long-lasting durability in high-stress, heat-exposed conditions.
| Standard | ASTM A276 / A479, ASME SA276 / A479 |
| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | C | Mn | Si | P | S | Cr | Co + Ta | Ni | Fe |
| SS 347H | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.03 max | 17 – 20 | 10xC min 1.00 max | 9 – 13 | 62.74 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 347h | 1.4550 | S34700 | SUS 347 | – | 08Ch18N12B | – | X6CrNiNb18-10 |
| Stainless Steel 347h Hollow Bar Size | Chucked true to OD | Chucked true to ID | |||||||
| OD, mm | ID, mm | Max. OD, mm | Min. ID, mm | Max. OD, in. | Min. ID, in. | Max. OD, mm | Min. ID, mm | Max. OD, in. | Min. ID, in. |
| 32 | 20 | 31 | 21.9 | 1.220 | 0.862 | 30 | 21 | 1.185 | 0.827 |
| 32 | 16 | 31 | 18 | 1.220 | 0.709 | 30 | 17 | 1.181 | 0.669 |
| 36 | 25 | 35 | 26.9 | 1.378 | 1.059 | 34.1 | 26 | 1.343 | 1.024 |
| 36 | 20 | 35 | 22 | 1.378 | 0.866 | 34 | 21 | 1.339 | 0.827 |
| 36 | 16 | 35 | 18.1 | 1.378 | 0.713 | 33.9 | 17 | 1.335 | 0.669 |
| 40 | 28 | 39 | 29.9 | 1.535 | 1.177 | 38.1 | 29 | 1.500 | 1.142 |
| 40 | 25 | 39 | 27 | 1.535 | 1.063 | 38 | 26 | 1.496 | 1.024 |
| 40 | 20 | 39 | 22.1 | 1.535 | 0.870 | 37.9 | 21 | 1.492 | 0.827 |
| 45 | 32 | 44 | 33.9 | 1.732 | 1.335 | 43.1 | 33 | 1.697 | 1.299 |
| 45 | 28 | 44 | 30 | 1.732 | 1.181 | 43 | 29 | 1.693 | 1.142 |
| 45 | 20 | 44 | 22.2 | 1.732 | 0.874 | 42.8 | 21 | 1.685 | 0.827 |
| 50 | 36 | 49 | 38 | 1.929 | 1.496 | 48 | 37 | 1.890 | 1.457 |
| 50 | 32 | 49 | 34.1 | 1.929 | 1.343 | 47.9 | 33 | 1.886 | 1.299 |
| 50 | 25 | 49 | 27.2 | 1.929 | 1.071 | 47.8 | 26 | 1.882 | 1.024 |
| 56 | 40 | 55 | 42 | 2.165 | 1.654 | 54 | 41 | 2.126 | 1.614 |
| 56 | 36 | 55 | 38.1 | 2.165 | 1.500 | 53.9 | 37 | 2.122 | 1.457 |
| 56 | 28 | 55 | 30.3 | 2.165 | 1.193 | 53.7 | 29 | 2.114 | 1.142 |
| 63 | 50 | 62 | 51.9 | 2.441 | 2.043 | 61.1 | 51 | 2.406 | 2.008 |
| 63 | 45 | 62 | 47 | 2.441 | 1.850 | 61 | 46 | 2.402 | 1.811 |
| 63 | 40 | 62 | 42.2 | 2.441 | 1.661 | 60.8 | 41 | 2.394 | 1.614 |
| 63 | 36 | 62 | 38.3 | 2.441 | 1.508 | 60.7 | 37 | 2.390 | 1.457 |
| 63 | 32 | 62 | 34.4 | 2.441 | 1.354 | 60.6 | 33 | 2.386 | 1.299 |
| 71 | 56 | 69.9 | 58 | 2.752 | 2.283 | 68.9 | 57 | 2.713 | 2.244 |
| 71 | 45 | 69.9 | 47.3 | 2.752 | 1.862 | 68.6 | 46 | 2.701 | 1.811 |
| 71 | 40 | 69.9 | 42.4 | 2.752 | 1.669 | 68.5 | 41 | 2.697 | 1.614 |
| 71 | 36 | 69.9 | 38.5 | 2.752 | 1.516 | 68.4 | 37 | 2.693 | 1.457 |
| 75 | 60 | 73.8 | 62 | 2.906 | 2.441 | 72.8 | 61 | 2.866 | 2.402 |
| 75 | 50 | 73.8 | 52.2 | 2.906 | 2.055 | 72.6 | 51 | 2.858 | 2.008 |
| 75 | 40 | 73.8 | 42.5 | 2.906 | 1.673 | 72.3 | 41 | 2.846 | 1.614 |
| 80 | 63 | 78.8 | 65 | 3.102 | 2.559 | 77.8 | 64 | 3.063 | 2.520 |
| 80 | 50 | 78.8 | 52.4 | 3.102 | 2.053 | 77.4 | 51 | 3.047 | 2.008 |
| 80 | 45 | 78.8 | 47.5 | 3.102 | 1.870 | 77.3 | 46 | 3.043 | 1.811 |
| 80 | 40 | 78.8 | 42.6 | 3.102 | 1.677 | 77.2 | 41 | 3.039 | 1.614 |
| 85 | 67 | 83.7 | 69.1 | 3.295 | 2.720 | 82.6 | 68 | 3.252 | 2.677 |
| 85 | 55 | 83.7 | 57.4 | 3.295 | 2.260 | 82.3 | 56.0 | 3.240 | 2.205 |
| 85 | 45 | 83.7 | 47.6 | 3.295 | 1.874 | 82.1 | 46.0 | 3.232 | 1.811 |
| 90 | 71 | 88.6 | 73.1 | 3.488 | 2.878 | 87.6 | 72.1 | 3.449 | 2.839 |
| 90 | 63 | 88.6 | 65.3 | 3.488 | 2.571 | 87.3 | 64.0 | 3.437 | 2.520 |
| 90 | 56 | 88.6 | 58.5 | 3.488 | 2.303 | 87.1 | 57.0 | 3.429 | 2.244 |
| 90 | 50 | 88.6 | 52.6 | 3.488 | 2.071 | 87.0 | 51.0 | 3.425 | 2.008 |
| 95 | 75 | 93.5 | 77.3 | 3.681 | 3.041 | 92.4 | 76.2 | 3.641 | 2.997 |
| 95 | 67 | 93.5 | 69.3 | 3.681 | 2.728 | 92.2 | 68.0 | 3.630 | 2.677 |
| 95 | 50 | 93.5 | 52.7 | 3.681 | 2.075 | 91.8 | 51.0 | 3.614 | 2.008 |
| 100 | 80 | 98.5 | 82.3 | 3.878 | 3.240 | 97.4 | 81.2 | 3.835 | 3.197 |
| 100 | 71 | 98.5 | 73.4 | 3.878 | 2.890 | 97.2 | 72.1 | 3.827 | 2.839 |
| 100 | 63 | 98.5 | 65.5 | 3.878 | 2.579 | 97.0 | 64.0 | 3.819 | 2.520 |
| 100 | 56 | 98.5 | 58.7 | 3.878 | 2.311 | 96.8 | 57.0 | 3.811 | 2.244 |
| 106 | 80 | 104.4 | 82.5 | 4.110 | 3.248 | 103.1 | 81.2 | 4.059 | 3.197 |
| 106 | 71 | 104.4 | 73.5 | 4.110 | 2.894 | 103.0 | 72.1 | 4.055 | 2.839 |
| 106 | 63 | 104.4 | 65.7 | 4.110 | 2.587 | 102.7 | 64.0 | 4.043 | 2.520 |
| 106 | 56 | 104.4 | 58.9 | 4.110 | 2.319 | 102.5 | 57.0 | 4.035 | 2.244 |
| 112 | 90 | 110.3 | 92.5 | 4.343 | 3.642 | 109.2 | 91.4 | 4.299 | 3.598 |
| 112 | 80 | 110.3 | 82.6 | 4.343 | 3.252 | 108.9 | 81.2 | 4.287 | 3.197 |
| 112 | 71 | 110.3 | 73.7 | 4.343 | 2.902 | 108.7 | 72.1 | 4.280 | 2.839 |
| 112 | 63 | 110.3 | 65.8 | 4.343 | 2.591 | 108.5 | 64.0 | 4.272 | 2.520 |
| 118 | 90 | 116.2 | 92.7 | 4.575 | 3.650 | 114.9 | 91.4 | 4.524 | 3.598 |
| 118 | 80 | 116.2 | 82.8 | 4.575 | 3.260 | 114.6 | 81.2 | 4.512 | 3.197 |
| 118 | 71 | 116.2 | 73.8 | 4.575 | 2.906 | 114.5 | 72.1 | 4.508 | 2.839 |
| 118 | 63 | 116.2 | 66.0 | 4.575 | 2.598 | 114.2 | 64.0 | 4.496 | 2.520 |
| 125 | 100 | 123.1 | 102.7 | 4.846 | 4.043 | 121.9 | 101.5 | 4.799 | 3.996 |
| 125 | 90 | 123.1 | 92.8 | 4.846 | 3.654 | 121.7 | 91.4 | 4.791 | 3.598 |
| 125 | 80 | 123.1 | 82.9 | 4.846 | 3.264 | 121.4 | 81.2 | 4.780 | 3.197 |
| 125 | 71 | 123.1 | 74.0 | 4.846 | 2.913 | 121.3 | 72.1 | 4.772 | 2.839 |
| 132 | 106 | 130.0 | 108.8 | 5.118 | 4.283 | 128.8 | 107.6 | 5.071 | 4.236 |
| 132 | 90 | 130.0 | 93.0 | 5.118 | 3.661 | 128.4 | 91.4 | 5.055 | 3.598 |
| 132 | 80 | 130.0 | 83.1 | 5.118 | 3.272 | 128.1 | 81.2 | 5.043 | 3.197 |
| 132 | 71 | 130.0 | 74.2 | 5.118 | 2.921 | 121.2 | 72.1 | 5.035 | 2.839 |
| 140 | 112 | 137.9 | 115 | 5.429 | 4.528 | 136.6 | 113.7 | 5.378 | 4.476 |
| 140 | 100 | 137.9 | 103.1 | 5.429 | 4.059 | 136.3 | 101.5 | 5.366 | 3.996 |
| 140 | 90 | 137.9 | 93.2 | 5.429 | 3.669 | 136.1 | 91.4 | 5.358 | 3.598 |
| 140 | 80 | 137.9 | 83.3 | 5.429 | 3.280 | 135.8 | 81.2 | 5.346 | 3.197 |
| 150 | 125 | 147.7 | 128.1 | 5.815 | 5.043 | 146.5 | 126.9 | 5.768 | 4.996 |
| 150 | 106 | 147.7 | 109.3 | 5.815 | 4.303 | 146 | 107.6 | 5.748 | 4.236 |
| 150 | 95 | 147.7 | 98.4 | 5.815 | 3.874 | 145.7 | 96.4 | 5.736 | 3.795 |
| 150 | 80 | 147.7 | 83.6 | 5.815 | 3.291 | 145.3 | 81.2 | 5.720 | 3.197 |
| 160 | 132 | 157.6 | 135.3 | 6.205 | 5.327 | 156.3 | 134 | 6.154 | 5.276 |
| 160 | 122 | 157.6 | 125.4 | 6.205 | 4.937 | 156 | 123.8 | 6.142 | 4.874 |
| 160 | 112 | 157.6 | 115.5 | 6.205 | 4.547 | 155.8 | 113.7 | 6.134 | 4.476 |
| 160 | 90 | 157.6 | 94.0 | 6.205 | 3.701 | 155.2 | 91.4 | 6.110 | 3.598 |
| 170 | 140 | 167.4 | 143.5 | 6.591 | 5.650 | 166 | 142.1 | 6.535 | 5.594 |
| 170 | 130 | 167.4 | 133.6 | 6.591 | 5.260 | 165.8 | 132 | 6.528 | 5.197 |
| 170 | 128 | 167.4 | 131.6 | 6.591 | 5.181 | 165.7 | 130 | 6.524 | 5.118 |
The high carbon content in SS 347H improves its strength, particularly at elevated temperatures, by enhancing its resistance to creep and increasing tensile strength. This results in better durability, making it suitable for high-stress applications in extreme environments.
SS 347H Hollow Bar is commonly used in the chemical processing, aerospace, power generation, and petrochemical industries. Its excellent corrosion resistance makes it ideal for applications involving high temperatures, aggressive chemicals, and harsh environments, ensuring long-lasting performance.
Stainless Steel 347H Hollow Bars find extensive use in industries that require high-temperature strength and corrosion resistance. They are perfect for applications like heat exchangers, pressure vessels, boilers, condensers, chemical process piping, and furnace components. Thanks to their superior creep and stress rupture resistance, they are frequently utilized in petrochemical plants, power generation facilities, refineries, and the aerospace industry. These hollow bars also excel in pharmaceutical, marine, and food processing sectors, where cleanliness and heat resistance are essential. Their durability and reliability make them a top choice for demanding environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
