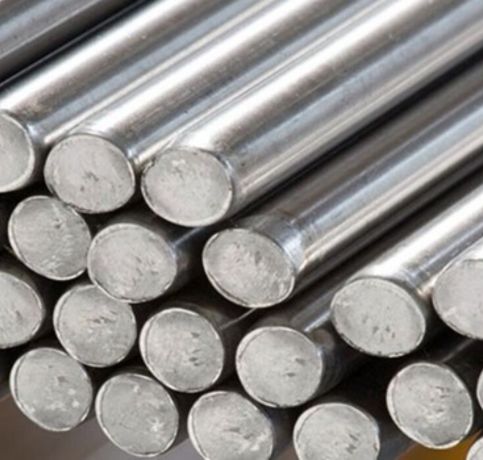

Isis Metals, Manila, Philippines-based company, is a leading manufacturer and supplier of quality metal products with superior precision engineering solutions. Being devoted to excellence and innovation, the company offers a variety of materials catering to the needs of several industries. High-Speed Steel (HSS) M42 Bars are one of its flagship products, renowned for their excellent hardness, wear resistance, and above-average cutting performance. These bars have been formulated for high-performance use in cutting, tooling, and machining applications. Assisted by decades of industrial experience, Isis Metals guarantees reliability, durability, and efficiency with all its premium-grade metal products.
High-Speed Steel M42 Bars contain about 1.05% Carbon, 4.0% Molybdenum, 8.0% Cobalt, 2.0% Vanadium, and 1.0% Tungsten, together with small additions of Chromium and Manganese. This mix provides outstanding hardness and wear resistance, which makes M42 the best suited for precision cutting tools. Mechanically, it has a Rockwell hardness range of 68–70 HRC, together with better toughness and superior thermal softening resistance. The alloy resists edge softening and retains edge stability even under very harsh conditions, making it provide long service life and consistent performance in high-stress high-speed machining and metalworking applications.
| ASTM A600 | C | Mn | P | S | Si | Cr | V | Mo | W | Co | ||||||||
| M42 | 1.05 | 1.15 | 0.15 | 0.40 | 0.03 | 0.03 | 0.15 | 0.65 | 3.50 | 4.25 | 0.95 | 1.35 | 9.00 | 10.00 | 1.15 | 1.85 | 7.75 | 8.75 |
| DIN ISO 4957 | C | Mn | P | S | Si | Cr | V | Mo | W | Co | ||||||||
| 1.3247/HS2-9-1-8 | 1.05 | 1.15 | … | … | … | … | … | 0.70 | 3.50 | 4.50 | 0.90 | 1.30 | 9.00 | 10.00 | 1.20 | 1.90 | 7.50 | 8.50 |
| JIS G4403 | C | Mn | P | S | Si | Cr | V | Mo | W | Co | ||||||||
| SKH59 | 1.05 | 1.15 | … | 0.40 | 0.03 | 0.03 | … | 0.70 | 3.50 | 4.50 | 0.90 | 1.30 | 9.00 | 10.00 | 1.20 | 1.90 | 7.50 | 8.50 |
| Mechanical Properties | Metric | Imperial |
| Hardness, Rockwell C (oil quenched from 1204°C, 5 minutes) | 64.3 | 64.3 |
| Hardness, Rockwell C (oil quenched from 1177°C, 5 minutes) | 65.5 | 65.5 |
| Hardness, Rockwell C(oil quenched from 1163°C) | 65.8 | 65.8 |
| Izod impact unnotched (oil quenched at 1191°C; 510°C temper temperature) | 13.6 J | 10.0 ft- lb |
| Izod impact unnotched (oil quenched at 1191°C; 622°C temper temperature) | 24.4 J | 24.4 J |
| Machinability (1% carbon steel) | 35.0 – 40.0% | 35.0 – 40.0% |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elastic modulus | 190-210 GPa | 27557-30457 ksi |
| Country | USA | German | Japan |
| Standard | ASTM A600 | DIN EN ISO 4957 | JIS G4403 |
| Grades | M42 | 1.3247/HS2-9-1-8 | SKH59 |
Yes, High-Speed Steel M42 can be welded, but it requires specialized techniques like preheating, post-weld heat treatment, and using appropriate filler materials to avoid cracking and maintain its properties.
Yes, High Speed Steel M42 bars are recyclable. They can be melted and reused in manufacturing, reducing waste and conserving resources, making them an environmentally friendly material choice.
HSS M42 Bars are extensively applied in the production of high-performance cutting tools like reamers, end mills, drills, and saw blades because of their exceptional hardness and heat resistance. Red-hardness is promoted by cobalt addition so that tools can hold sharpness in long-life high-speed machining operations. These bars are also applied in threading taps, heavy-duty industrial operations where toughness and hardness are important, and in die and mold making. Due to their superior wear and thermal resistance, M42 bars have wide applications across aerospace, automobile, metalworking, and precision engineering industries, ensuring productive and long-lasting tooling performance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
