Isis Metals is a reputable manufacturer and supplier located in Manila, Philippines, with a focus on high-quality Aluminium 5005 Bars and Rods. The company has built a solid reputation for its dedication to precision and durability, ensuring that their aluminum products meet international standards. Aluminium 5005 is a non-heat-treatable alloy celebrated for its outstanding corrosion resistance, good workability, and appealing surface finish. At Isis Metals, advanced manufacturing techniques and strict quality control measures are employed to create bars and rods that are perfect for architectural, marine, and general engineering applications, where both aesthetics and resilience against harsh environments are key.
Aluminium 5005 Bars and Rods are primarily made of aluminum, with magnesium content ranging from 0.5% to 1.1%, along with small amounts of iron, silicon, copper, manganese, and zinc. This specific composition boosts corrosion resistance, particularly in atmospheric and marine conditions. The alloy typically shows tensile strength between 170 and 215 MPa and elongation of 12–20%, depending on the temper. It also boasts excellent anodizing properties, good weldability, and moderate strength, making it a great choice for both forming and finishing processes.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |

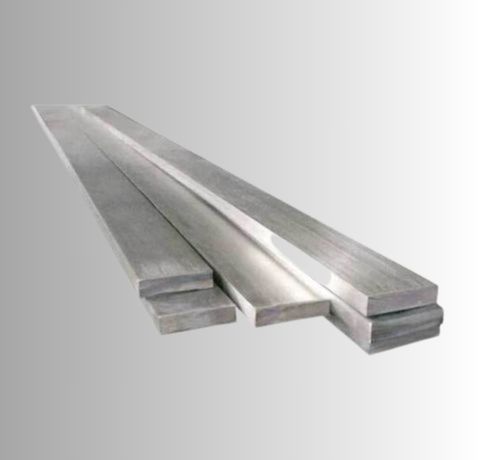

| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |

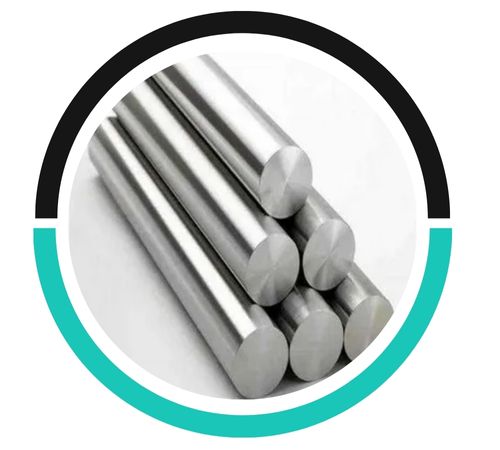

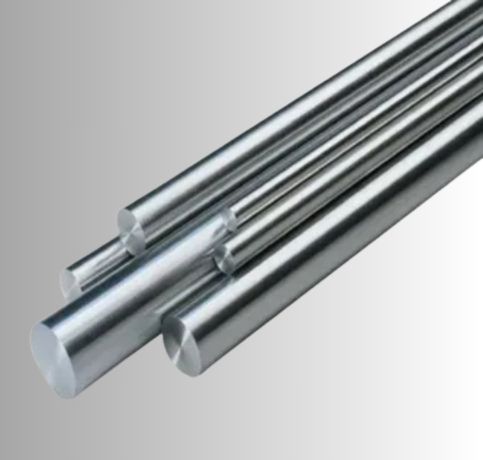

| Aluminium Round Bar Diameter | 0.1-600mm,etc |

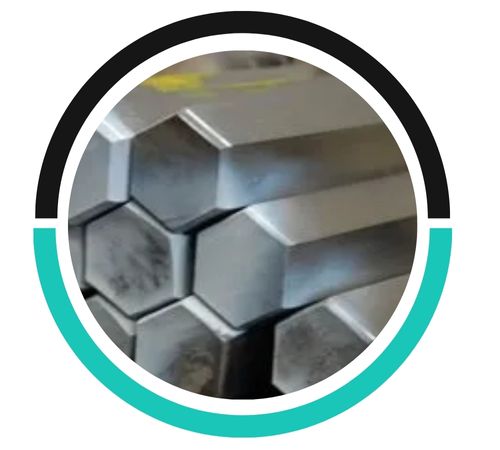

| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |

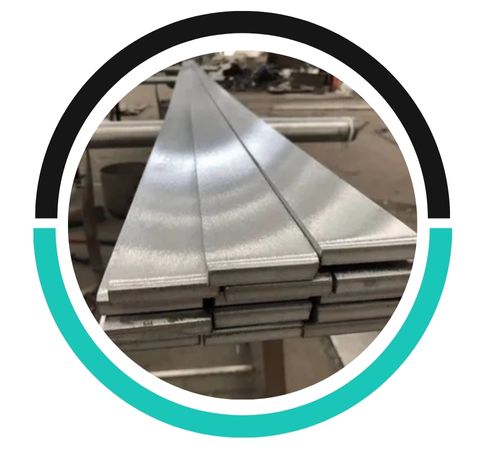

| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| Weight% | Al | Si | Fe | Cu | Mn | Cr | Mg | Zn | Others Each | Others Total |
| 5005 | Bal | 0.30 max | 0.70 max | 0.20 max | 0.20 max | 0.10 max | 0.50 / 1.10 | 0.25 max | 0.05 max | 0.15 max |
| Material | Temper | Tensile Strength (N/mm²) | Yield Strength (N/mm²) | Elongation on 50mm (%) | |||
| 0.5 mm | 0.8 mm | 1.3 mm | 2.6mm | ||||
| 5005 | 0 | 95-145 | – | 18 | 20 | 21 | 22 |
| 5005 | H12 | 125-170 | 80 | 4 | 5 | 6 | 8 |
| 5005 | H14 | 145-185 | 100 | 3 | 3 | 5 | 6 |
| 5005 | H18 | 185 min | 165 | 1 | 2 | 3 | 3 |
| European Standard | GERMANY | UNS | WERKSTOFF NR. |
| B57S | Al-Mg-1 | A95005 | – |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Yes, Aluminium 5005 bars can be welded. It has excellent weldability, especially using TIG (Tungsten Inert Gas) and MIG (Metal Inert Gas) welding processes. Proper cleaning of the surface before welding is essential to prevent contamination and ensure strong welds.
Considerations for installing Aluminium 5005 bars and rods include ensuring proper welding techniques, avoiding galvanic corrosion, considering expansion and contraction due to temperature changes, and ensuring correct surface preparation for durability.
Aluminium 5005 has good corrosion resistance, particularly in atmospheric and marine environments, due to its high magnesium content. However, like all aluminium alloys, it can corrode under certain conditions, such as in highly acidic or alkaline environments. To prevent corrosion, surface treatments like anodizing or applying protective coatings are often used, especially in aggressive environments.
These Aluminium 5005 Bars and Rods are commonly used in architectural projects like roofing, siding, and decorative panels, thanks to their smooth surface and color retention. They also find applications in marine hardware, transport equipment, storage tanks, and electrical enclosures, where corrosion resistance is essential. Furthermore, the alloy is utilized in sheet metal fabrication, signage, and industrial components that require a blend of strength, formability, and an attractive look.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
