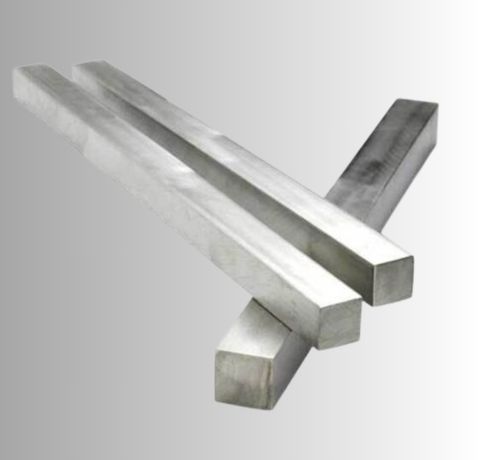

Isis Metals is a reliable manufacturer and supplier of **Aluminium 6101 T6 Bars and Rods** located in Manila, Philippines. They offer top-notch aluminum products that are celebrated for their impressive strength, resistance to corrosion, and excellent electrical conductivity. By utilizing cutting-edge production methods and rigorous quality control, Isis Metals guarantees that each 6101 T6 bar and rod adheres to international standards for precision, durability, and performance. These bars and rods are specifically crafted for applications that demand both high mechanical strength and dependable conductivity. Industries throughout the Philippines and beyond trust Isis Metals for high-performance, long-lasting aluminum solutions.
**Aluminium 6101 T6 Bars and Rods** mainly consist of aluminum, along with alloying elements like silicon (0.8–1.3%), magnesium (0.45–0.7%), copper (0.2–0.4%), and trace amounts of iron and manganese. The T6 temper signifies that the alloy has undergone solution heat treatment and artificial aging, resulting in a tensile strength of around 200–250 MPa, along with impressive hardness, good corrosion resistance, and excellent electrical conductivity. This alloy also boasts high machinability, good formability, and thermal stability, making it perfect for structural and electrical applications.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |
| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| Aluminum, Al | Magnesium, Mg | Silicon, Si |
|---|---|---|
| 98.9 | 0.60 | 0.50 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 97 MPa | 14069 psi |
| Yield strength | 76 MPa | 11023 psi |
| Elastic modulus | 70-80 GPa | 10153-11603 ksi |
| Poisson’s ratio | 0.33 | 0.33 |
| INDIA | U.S.A. | BRITAIN | CANADA | GERMANY | RUSSIA | I.S.O. | FRENCH | NORTH AMERICA | DIN Nos. | |
|---|---|---|---|---|---|---|---|---|---|---|
| New IS | Old IS | (A.A.) | (B.S.) | (DIN) | – | – | – | UNS | DIN | |
| 63401 | 91E | 6101 | 91E | D50S | E.Al.Mg.Si 0.5 | – | – | – | A96101 | 3.2315 |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Yes, Aluminium 6101 T6 bars are recyclable. Aluminium, including alloys like 6101 T6, can be recycled indefinitely without losing its properties, making it an environmentally friendly material for sustainable manufacturing.
Yes, Aluminium 6101 T6 rods can be customized in size and length to meet specific requirements. Manufacturers often offer various diameters, lengths, and finishes, allowing the rods to be tailored for different applications.
To select the right Aluminium 6101 T6 bar or rod, consider factors like strength requirements, electrical conductivity, corrosion resistance, weight, and intended application (e.g., electrical, structural, aerospace, or industrial use).
**Aluminium 6101 T6 Bars and Rods** find extensive use in electrical, construction, transportation, and industrial sectors. They are particularly well-suited for creating electrical conductors, busbars, terminals, and other components that require outstanding conductivity and mechanical strength. In mechanical and structural contexts, they serve as frames, supports, and lightweight components that need to be strong. Additionally, their durability, corrosion resistance, and dimensional stability make them ideal for architectural and precision engineering applications. The blend of conductivity, strength, and versatility makes **Aluminium 6101 T6 Bars and Rods** a top choice for electrical and industrial uses.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
