Isis Metals, based in Manila, Philippines, is a trusted manufacturer and supplier of Carbon Steel AISI 1018 Bars and Rods. They’re well-known for providing high-quality products that meet industry standards. With a strong emphasis on consistent chemical composition, precise dimensions, and dependable performance, the company guarantees that its AISI 1018 material is perfect for all your machining, forming, and fabrication needs. Isis Metals serves a variety of sectors, offering both customized and standard specifications to fit different project requirements. Their dedication to quality control, technical support, and timely delivery makes them a go-to choice for carbon steel bar and rod solutions.
When it comes to Carbon Steel AISI 1018 Bars and Rods, you can expect them to contain about 0.18% carbon, 0.60–0.90% manganese, along with trace amounts of phosphorus and sulfur, with the rest being iron. This low carbon content gives them excellent machinability, weldability, and formability. Mechanically, AISI 1018 boasts good tensile strength, moderate yield strength, and decent elongation, making it reliable in both cold-worked and hot-worked conditions. It also responds well to carburizing processes, which enhances surface hardness while keeping the core ductile and tough—ideal for parts that need both strength and machinability.
| Specifications | AISI 1018, ASME SA1018 |
|---|---|
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |

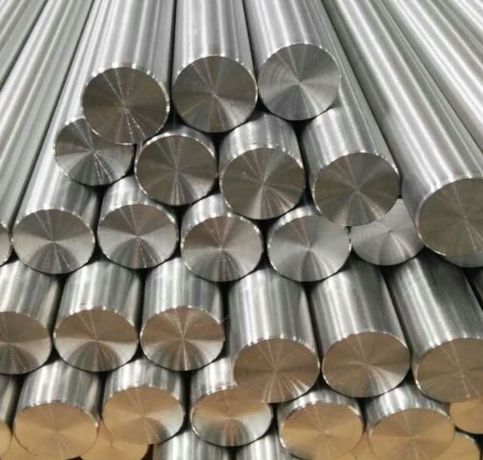

| Carbon Steel AISI 1018 Round Bars | 100mm-1200mm |
| Finish | Bright, Polish & Black |
| Length | 12m |

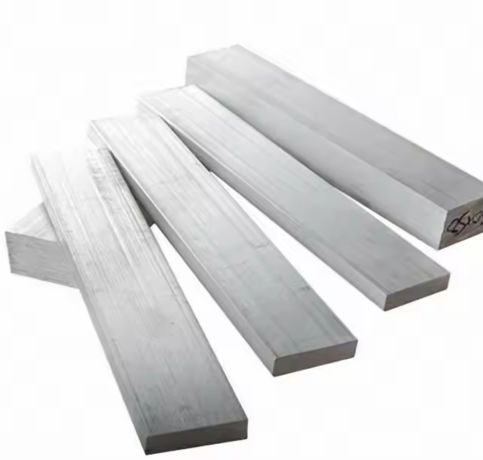

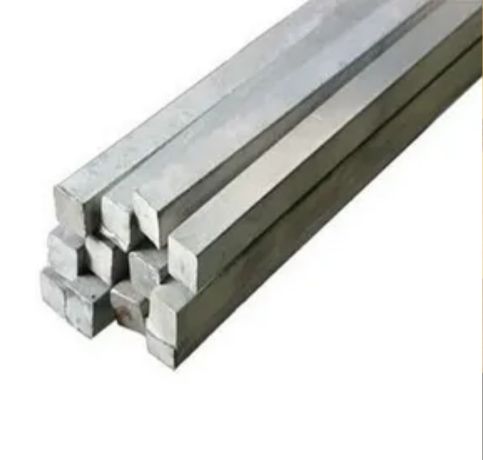

| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Grade | Mn | S | C | P | Si | Cr | Mo |
|---|---|---|---|---|---|---|---|
| AISI 4130 | 0.4-0.8 | 0.04 | 0.28-0.33 | 0.035 | 0.15-0.35 | 0.8-1.1 | 0.15-0.25 |
| >Grade | >Delivery State | >A,% Min | >T.S. N/mm2 Min | >Y.S. N/mm2 Min | >Z,% Min | >Hardness, (annealing or tempering) HB,max | >Forging ratio | >Grain Size (level) | >Nonmetal ratio |
|---|---|---|---|---|---|---|---|---|---|
| AISI 1018 | Hot rolled, forged, or heat treatment | 12 | 930 | 735 | 50 | 229 | ≥ 4:1 | ≥ 6 | ≤ 2.0 |
| Standard | AISI / SAE 1018 |
|---|---|
| UNS | – |
| WERKSTOFF NR. | 25CrMo4, GS-25CrMo4 |
| BS 970 | 708A30, CDS110 |
| UNI | 25CrMo4 (KB), 30CrMo4 |
| JIS | SCM 420, SCM 430, SCCrM1 |
| EN name | – |
| EN # | 1.7218 |
| Diameter | Weight Chart | Dia | Weight Chart |
|---|---|---|---|
| (mm) | per metre (kg) | (in) | per metre (kg) |
| 3mm | 0.06 | 1/8″ | 0.06 |
| 4mm | 0.10 | 3/16″ | 0.14 |
| 5mm | 0.16 | 1/4″ | 0.25 |
| 6mm | 0.22 | 5/16″ | 0.39 |
| 7mm | 0.30 | 3/8″ | 0.56 |
| 8mm | 0.40 | 7/16″ | 0.77 |
| 10mm | 0.62 | 1/2″ | 1.00 |
| 12mm | 0.89 | 9/16″ | 1.22 |
| 14mm | 1.22 | 5/8″ | 1.56 |
| 15mm | 1.40 | 11/16″ | 1.89 |
| 16mm | 1.59 | 3/4″ | 2.25 |
| 18mm | 2.01 | 7/8″ | 3.07 |
| 20mm | 2.48 | 1″ | 4.03 |
| 22mm | 3.00 | ||
| 24mm | 3.57 | ||
| 25mm | 3.88 |
They offer excellent machinability, weldability, and strength, making them ideal for various industrial applications.
They are commonly used in automotive, machinery, construction, and manufacturing industries.
You’ll find Carbon Steel AISI 1018 Bars and Rods widely used in manufacturing, construction, automotive, and industrial machinery sectors. They’re commonly used to create shafts, pins, studs, spindles, machine parts, fasteners, and structural components that require good strength and easy manufacturability. AISI 1018 is often the material of choice for carburized components like gears and wear parts, where a hard exterior and a tough interior are essential. Its weldability and consistent finish also make it a great fit for precision-machined components, jigs, fixtures, and general fabrication tasks in workshops and production facilities.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
