Isis Metals, based in Manila, Philippines, stands out as a trusted manufacturer and supplier of Carbon Steel EN-19 (V 320) Bars, delivering high-performance alloy steel solutions tailored for demanding engineering and industrial needs. The company prides itself on maintaining consistent material quality, precise dimensional accuracy, and a reliable supply that meets client specifications. With robust capabilities in processing, sourcing, and technical support, Isis Metals caters to various sectors, including automotive, machinery, fabrication, and construction. Their EN-19 bars are highly regarded for their exceptional strength, shock resistance, and durability, making Isis Metals a go-to partner for projects that require sturdy and long-lasting steel components.
Typically, Carbon Steel EN-19 (V 320) Bars contain around 0.35–0.45% carbon, 0.60–0.90% manganese, 0.90–1.40% chromium, and 0.15–0.30% molybdenum, with the remainder being iron. This specific alloy composition results in impressive tensile strength, high fatigue resistance, and good hardenability. EN-19 strikes a perfect balance between toughness and wear resistance, performing admirably under shock and dynamic loads. It responds well to heat treatment, which enhances its hardness and overall mechanical performance, making it ideal for components that demand both strength and reliability.
| Grades | EN 8, EN 19, EN 24, EN 31 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |

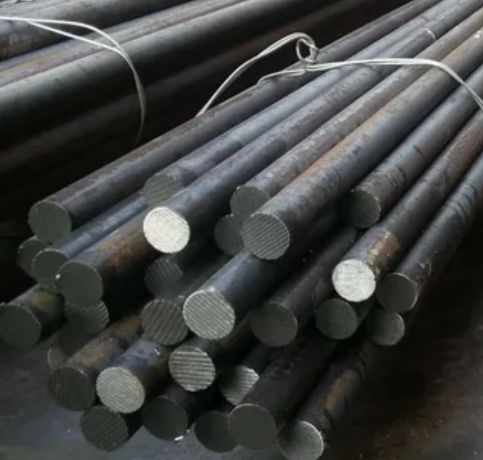

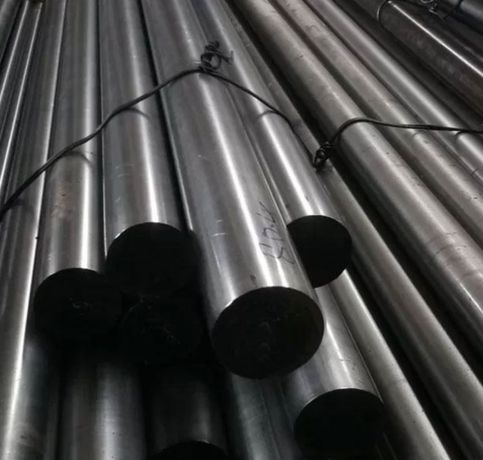

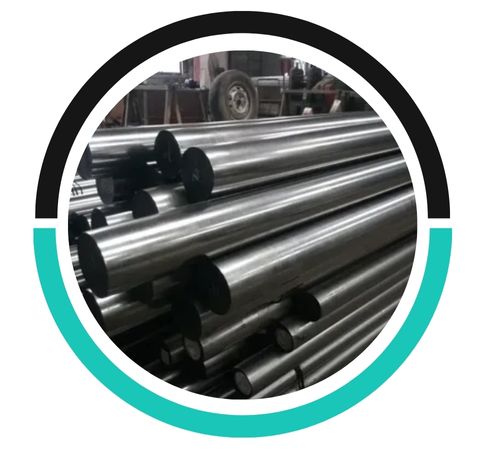

| Carbon Steel EN Series Round Bars | 3.0 – 50.8 mm, Over 50.8 – 300mm |
| Carbon Steel EN Series Rectangular Bars | 6.35 x 12.7mm,6.35 x 25.4mm,12.7 x 25.4mm |

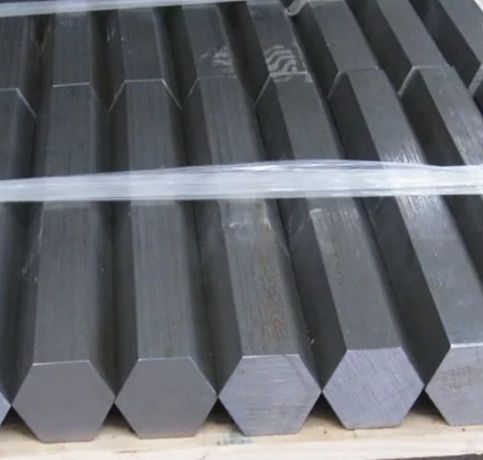

| Carbon Steel EN Series Hex Bars | AF5.8mm–17mm |

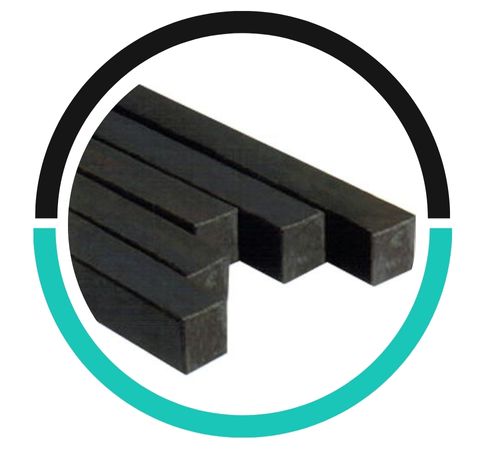

| Carbon Steel EN Series Square Bars | AF2mm – 14mm, AF6.35mm,9.5mm,12.7mm, 15.98mm,19.0mm, 25.4mm |
| Carbon Steel EN Series Flat Bars | 1/2” to 10” in thickness range of 2mm to 150mm |
| Length | 1 to 6 Meters, Custom Cut Lengths |

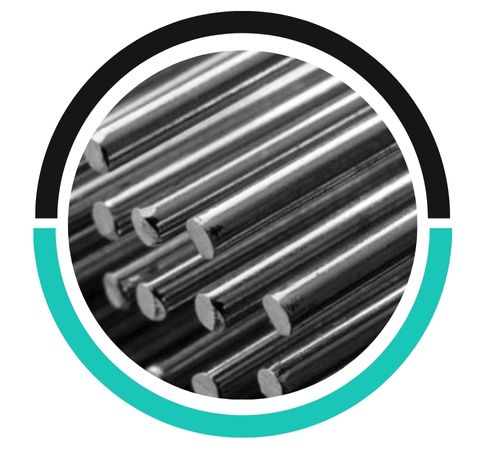

| Finish | Bright, Polish & Black |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Grade | ||||||
| C% | Si% | Mn% | Cr% | Mo% | W% | |
| EN-1A | 0.007 TO 0.15 | 0.10 | 0.80 TO 1.00 | S | P | – |
| 0.20 TO 0.30 | 0.70 MAX | |||||
| EN-8 | 0.35 TO 0.45 | 0.05 TO 0.30 | 0.60 TO 1.00 | S | P | – |
| 0.06 MAX | 0.06 MAX | |||||
| EN-9 | 0.50 TO 0.60 | 0.05 TO 0.30 | 0.5 TO 0.80 | – | – | – |
| EN-19(V 320) | 0.35 TO 0.45 | 0.10 TO 0.30 | 0.5 TO 0.80 | 0.90 TO 1.40 | 0.20 TO 0.40 | |
| EN-24(V 130) | 0.35 TO 0.45 | 0.10 TO 0.35 | 0.45 TO 0.70 | 0.90 TO 1.40 | 0.20 TO 0.35 | NI |
| 1.3 TO 1.8 | ||||||
| EN-31 R-100 | 0.90 TO 1.20 | 0.10 TO 0.35 | 0.30 TO 0.75 | 1.00 TO 1.60 | – | – |
| EN-36C E-200 | 0.12 TO 0.18 | 0.10 TO 0.35 | 0.30 TO 0.60 | 0.60 TO 1.10 | – | NI |
| 3.0 TO 3.75 | ||||||
| EN-42 | 0.70 TO 0.85 | 0.10 TO 0.40 | 0.55 TO 0.75 | – | – | – |
| EN-44 | 0.90 TO 1.20 | 0.30 | 0.45 TO 0.70 | – | – | – |
| EN-45 F-110 | 50 TO 0.60 | 1.5 TO 2.0 | 0.70 TO 1.00 | – | – | – |
| EN-351 | 0.10 TO 0.20 | 0.35 | 0.60 TO 1.00 | 0.40 to 0.80 | 0.08 to 0.10 | NI |
| 0.60 TO 1.00 | ||||||
| EN-353 | 0.10 TO 0.20 | 0.35 | 0.50 TO 1.00 | 0.75 TO 1.25 | 0.08 to o.15 | NI |
| 1.00 TO 1.50 |
| Annealed | R | S | T | U | V | W | Y | |
|---|---|---|---|---|---|---|---|---|
| Ruling Section (mm) | 150 | 150 | 100 | 65 | 65 | 30 | 30 | 25 |
| Tensile Strength (MPa) | 680/720 | 690/850 | 770/930 | 850/1000 | 930/1080 | 1000/1160 | 1080/1240 | 1280 |
| Yield Stress (MPa) | 440/480 | 480 | 570 | 665 | 740 | 835 | 895 | 1050 |
| Elongation (% Min) | 22 | 15 | 15 | 13 | 12 | 12 | 10 | 10 |
| ISO V Impact (Joule) | 30 | 30 | 30 | 30 | 25 | 25 | 22 | 7 |
| Hardness (Brinell) | 190/210 | 201/255 | 223/277 | 248/302 | 269/321 | 293/341 | 311/375 | 363/415 |
| Proof Stress (0.2%) if required (MPa, Min) | 495 | 550 | 630 | 710 | 770 | 850 | 985 |
| Standard | CS EN-19 |
| UNS | – |
| WERKSTOFF NR. | 42Cr4Mo2 |
| BS | 709M40 |
| IS | 40Cr4Mo3 |
| JIS | – |
| EN | EN19 |
| SAE/AISI | 4140,4142 |
They offer high tensile strength, toughness, and excellent wear resistance, making them ideal for demanding applications.
Commonly used in automotive, aerospace, and engineering sectors for parts like crankshafts, gears, and heavy-duty machinery components.
Carbon Steel EN-19 (V 320) Bars find extensive use in automotive and mechanical engineering applications where high strength and resistance to wear and shock are crucial. Common uses include gears, shafts, axles, spindles, crankshafts, bolts, couplings, and high-strength fasteners. They are also essential in heavy machinery components, hydraulic parts, and tools that need to endure repeated stress and impact. Thanks to its heat-treating capabilities, EN-19 is often selected for parts that require a hardened surface combined with a strong and tough core, making it perfect for critical high-load and high-performance environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
