Isis Metals, based in Manila, Philippines, has built a solid reputation as a reliable manufacturer and supplier of Carbon Steel E-200 Bars. They provide top-notch material solutions tailored for industrial, mechanical, and fabrication needs. The company prides itself on precision processing, maintaining consistent quality standards, and ensuring timely delivery to support clients in the automotive, machinery, construction, and general engineering sectors. With the ability to offer E-200 bars in both standard and custom sizes, Isis Metals guarantees dependable performance and durability for even the most demanding applications. Their dedication to customer satisfaction, technical know-how, and rigorous quality control makes them a go-to source for robust and long-lasting carbon steel bar solutions.
Carbon Steel E-200 Bars typically feature a medium carbon content (around 0.40–0.50%), along with manganese, silicon, and trace elements that enhance strength and hardness. This material strikes a great balance between tensile strength, good machinability, and moderate wear resistance. E-200 bars respond well to heat treatment, which boosts hardness and mechanical performance when needed. They also maintain good toughness and stability under load, making them reliable for components that face stress and mechanical impact, while still being suitable for machining and shaping tasks.
| Specifications | : | ASTM A105, ASME SA105 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |

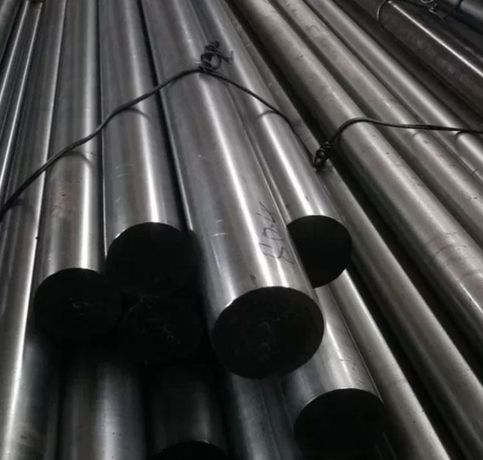

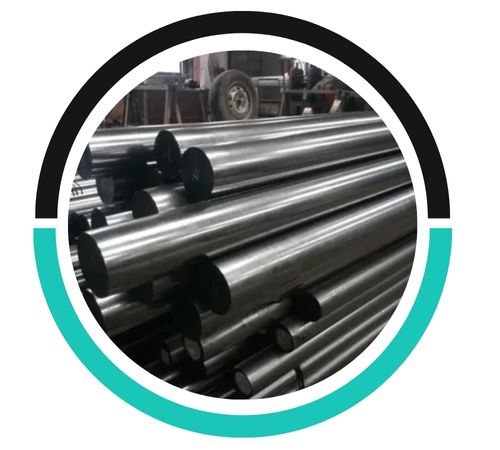

| Carbon Steel EN Series Round Bars | : | 3.0 – 50.8 mm, Over 50.8 – 300mm |
| Carbon Steel EN Series Rectangular Bars | : | 6.35 x 12.7mm,6.35 x 25.4mm,12.7 x 25.4mm |

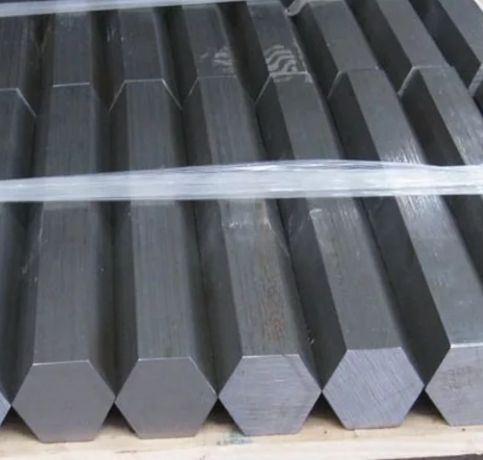

| Carbon Steel EN Series Hex Bars | : | AF5.8mm–17mm |

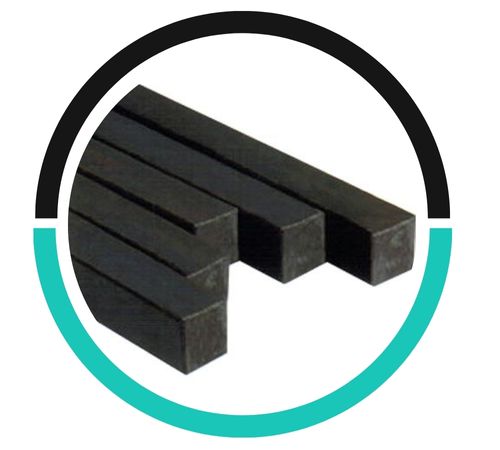

| Carbon Steel EN Series Square Bars | : | AF2mm – 14mm, AF6.35mm,9.5mm,12.7mm, 15.98mm,19.0mm, 25.4mm |
| Carbon Steel EN Series Flat Bars | : | 1/2” to 10” in thickness range of 2mm to 150mm, |
| Finish | : | Bright, Polish & Black |
| Length | : | 1 to 6 Meters, Custom Cut Lengths |
| Form | : | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Grade | ||||||
| C% | Si% | Mn% | Cr% | Mo% | W% | |
| EN-1A | 0.007 TO 0.15 | 0.10 | 0.80 TO 1.00 | S | P | – |
| 0.20 TO 0.30 | 0.70 MAX | |||||
| EN-8 | 0.35 TO 0.45 | 0.05 TO 0.30 | 0.60 TO 1.00 | S | P | – |
| 0.06 MAX | 0.06 MAX | |||||
| EN-9 | 0.50 TO 0.60 | 0.05 TO 0.30 | 0.5 TO 0.80 | – | – | – |
| EN-19(V 320) | 0.35 TO 0.45 | 0.10 TO 0.30 | 0.5 TO 0.80 | 0.90 TO 1.40 | 0.20 TO 0.40 | |
| EN-24(V 130) | 0.35 TO 0.45 | 0.10 TO 0.35 | 0.45 TO 0.70 | 0.90 TO 1.40 | 0.20 TO 0.35 | NI |
| 1.3 TO 1.8 | ||||||
| EN-31 R-100 | 0.90 TO 1.20 | 0.10 TO 0.35 | 0.30 TO 0.75 | 1.00 TO 1.60 | – | – |
| EN-36C E-200 | 0.12 TO 0.18 | 0.10 TO 0.35 | 0.30 TO 0.60 | 0.60 TO 1.10 | – | NI |
| 3.0 TO 3.75 | ||||||
| EN-42 | 0.70 TO 0.85 | 0.10 TO 0.40 | 0.55 TO 0.75 | – | – | – |
| EN-44 | 0.90 TO 1.20 | 0.30 | 0.45 TO 0.70 | – | – | – |
| EN-45 F-110 | 50 TO 0.60 | 1.5 TO 2.0 | 0.70 TO 1.00 | – | – | – |
| EN-351 | 0.10 TO 0.20 | 0.35 | 0.60 TO 1.00 | 0.40 to 0.80 | 0.08 to 0.10 | NI |
| 0.60 TO 1.00 | ||||||
| EN-353 | 0.10 TO 0.20 | 0.35 | 0.50 TO 1.00 | 0.75 TO 1.25 | 0.08 to o.15 | NI |
| 1.00 TO 1.50 |
| Grade | HEAT TREATMENT | CORRESPONDING SPECIFICATION | |||||
| Hardening Temperature | Quenching Medium | Tempering Temperature | Brinell Rock well hardness | JAPAN JIS | AISI | POLDI THREAD | |
| EN-1A | – | – | – | – | – | – | – |
| EN-8 | 750-900 | OIL | 150-200 | ||||
| EN-9 | 850-900 | OIL | 200-250 | 55-60 | |||
| EN-19 (V 320) | 900-950 | OIL | 200-225 | 45-55 | SCM 4 | 4140 | |
| EN-24 (V 130) | 830-860 | OIL | 540-680 | 45-55 | SNCM 8 | 4340 | |
| EN-31 R-100 | 820-860 | OIL | 180-225 | 59-65 | |||
| EN-36C E-200 | 780-860 | OIL | 170-210 | 61-63 | SNC 22 | 3415 | |
| EN-42 | 600-700 | DIRECT HARDENING | 40-45 | ||||
| EN-44 | 650-750 | OIL | 150 | 45-50 | |||
| EN-45 | 830-860 | OIL | 470-520 | 50-55 | 9255 | ||
| EN-351 | 850-860 | OIL | 175-200 | 62-64 | |||
| EN-353 | 840-870 | OIL | 150-200 | 62-64 | |||
Common finishes for Carbon Steel E-200 Bar include hot rolled, cold rolled, polished, pickled, galvanized, and painted, each providing varying levels of surface smoothness, corrosion resistance, and appearance.
Yes, Carbon Steel E-200 Bar is available in various lengths. Suppliers typically offer customizable options, ranging from standard sizes to specific lengths according to customer requirements.
Carbon Steel E-200 Bar is commonly used in structural applications, manufacturing of automotive parts, machinery, tools, and general fabrication due to its strength, durability, and resistance to wear and corrosion.
These Carbon Steel E-200 Bars are commonly used in applications that demand strength, durability, and reliable structural performance. You’ll find them in the manufacturing of shafts, axles, gears, fasteners, couplings, machine components, brackets, and various structural parts in mechanical and industrial equipment. This material is perfect for parts that experience moderate loading, dynamic motion, or wear conditions. Its ability to be heat-treated makes it ideal for components that need a hardened surface paired with a strong core. E-200 bars are widely utilized in automotive workshops, fabrication units, maintenance facilities, and general engineering industries where dependable and long-lasting steel parts are crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
