Isis Metals is a well-respected manufacturer and supplier of **Carbon Steel EN-45 Bars** located in Manila, Philippines. They offer top-notch alloy steel products that are celebrated for their impressive strength, toughness, and resilience. Thanks to their state-of-the-art manufacturing facilities and rigorous quality assurance processes, Isis Metals guarantees that every EN-45 bar adheres to international standards for mechanical performance and reliability. This particular grade of spring steel is highly regarded for its ability to endure heavy shocks and vibrations, making it perfect for dynamic load-bearing applications. Industries across the Philippines and around the globe trust Isis Metals for their durable and precision-engineered carbon steel solutions.
**Carbon Steel EN-45 Bars** mainly consist of carbon (0.50–0.60%), silicon (1.50–2.00%), manganese (0.70–1.00%), along with trace amounts of chromium and vanadium, with iron making up the rest. This blend results in a fantastic mix of hardness, ductility, and wear resistance. EN-45 steel boasts a tensile strength of about 700–850 MPa and can be oil-hardened and tempered to achieve outstanding spring properties. It also provides good machinability and heat-treating characteristics, making it suitable for applications that require both elasticity and high fatigue strength.
| Grade | EN45 |
|---|---|
| Specification | BS970 1.0904 55Si7 55S6 55Si2Mn ASTM 9255 |

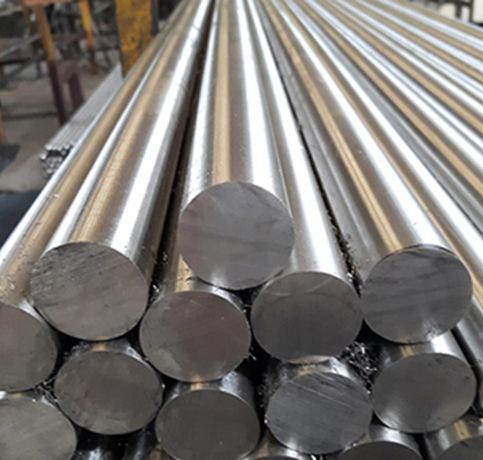

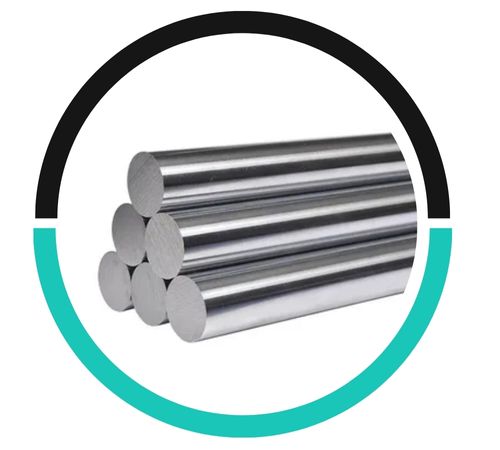

| Round bar size | Diameter: 3-~800mm |

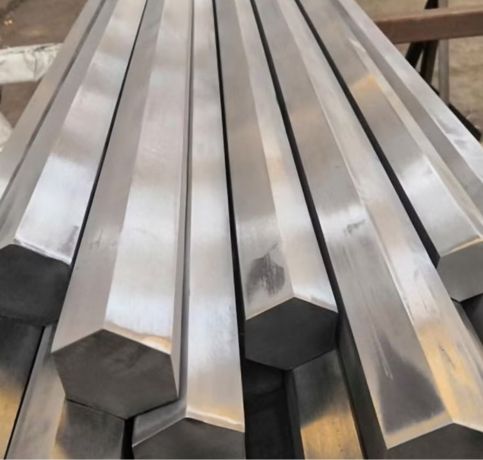

| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

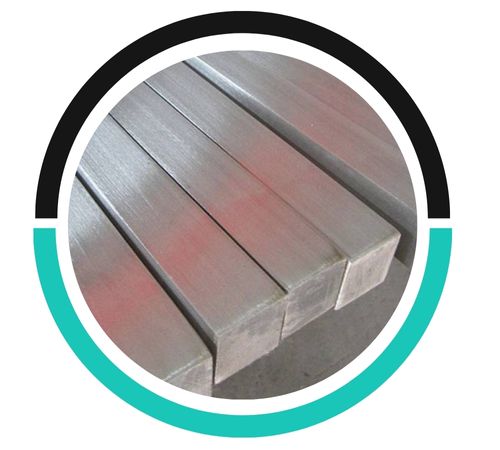

| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Finish | Cold (bright) drawn, centreless ground,smooth turned, peeled, slit rolled edge, hot rolled, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |
| Technique | EN45 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |
| Form | EN45 Welding Rod, Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Our EN45 round bar conforms to NACE MR0175/ISO 15156 | |
| Element | En42J |
| C | 0.75 – 0.90% |
| Mn | 0.50 – 0.90% |
| Si | 0/1 – 0.35 |
| S | 0.04% Max |
| P | 0.04% Max |
|
ULTIMATE TENSILE STRENGTH, S. (MPA) |
621 |
|---|---|
|
Modulus of elasticity, E (Gpa) |
204 |
|
Fatigue strength coefficient, of (Mpa) |
948 |
|
Fatigue strength exponent, b |
-0.092 |
|
Fatigue ductility coeffient ,ef |
0.26 |
|
Fatigue ductility exponent,c |
-0.445 |
|
Type |
SIZES (mm) |
SIZES (Inches) |
ISO Tolerance |
|---|---|---|---|
|
Cold Drawn and Polish |
3.00 – 75.00 |
1/8″ – 3.00″ |
h8-h9-h10-h11 |
|
Cold Drawn and Ground |
10.00 – 75.00 |
5/6″ – 2.50″ |
h8-h9-h10-h11 |
|
Peeled and Polished |
40.00 – 150.00 |
1.50″ – 6.00″ |
h11, h11-DIN 1013 |
|
Peeled and Ground |
20.00 – 50.00 |
3/4″ – 2.00″ |
h9-h10-h11 |
EN-45 Bars and Rods are primarily used in automotive components like springs, shafts, and crankshafts, as well as in engineering tools and machinery parts requiring high strength and wear resistance.
EN-45 Bars and Rods offer excellent tensile strength (700-900 MPa), yield strength (450-600 MPa), and toughness, making them ideal for high-stress applications.
**Carbon Steel EN-45 Bars** find extensive use in industries that require high strength, shock resistance, and durability. They are perfect for crafting automotive leaf springs, coil springs, blades, and heavy-duty tools. In the mechanical and engineering fields, EN-45 is utilized for shafts, connecting rods, and other components that face repeated stress and impact. Its unique combination of toughness, flexibility, and wear resistance makes Carbon Steel EN-45 Bars a go-to choice for suspension systems, agricultural equipment, and industrial machinery that operate under dynamic loads.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
