Isis Metals is a well-respected manufacturer and supplier of Inconel 617 Bars and Rods based in Manila, Philippines. They specialize in high-performance nickel-chromium-cobalt-molybdenum alloys that are engineered for exceptional strength and oxidation resistance, even at high temperatures. Inconel 617 is celebrated for its remarkable mechanical properties, outstanding metallurgical stability, and its ability to resist carburization and corrosion in harsh environments. Isis Metals ensures that their precisely crafted bars and rods meet the needs of demanding sectors like aerospace, petrochemical, power generation, and heat treatment, all while adhering to strict quality control standards for reliability and performance in extreme conditions.
Inconel 617 Bars and Rods are made up of Nickel (44–62%), Chromium (20–24%), Cobalt (10–15%), and Molybdenum (8–10%), with small amounts of Aluminum and Titanium that boost oxidation resistance and strength. This alloy showcases impressive tensile strength (up to 850 MPa) and yield strength (around 350 MPa), maintaining its mechanical stability even at temperatures reaching 1100°C. It offers excellent resistance to oxidation, carburization, and thermal fatigue, while also boasting high creep-rupture strength. Its well-balanced composition guarantees durability and toughness, making it perfect for applications that face significant thermal and mechanical stresses.
| Standards | ASTM B166, ASME SB 166, AMS 5887 |
|---|---|
| Specifications | DIN, EN, ASTM, JIS, ASME, BS, AISI |

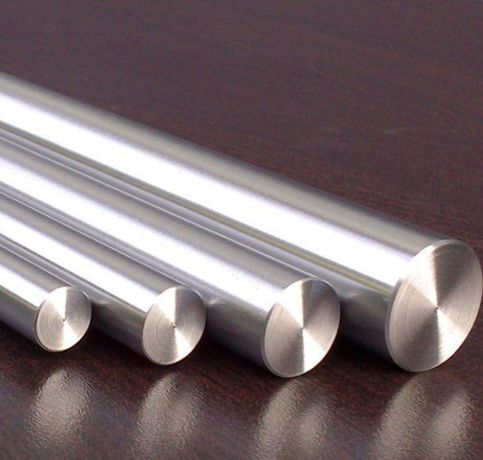

| 617 Inconel Round Bars size | Diameter: 3-~800mm |

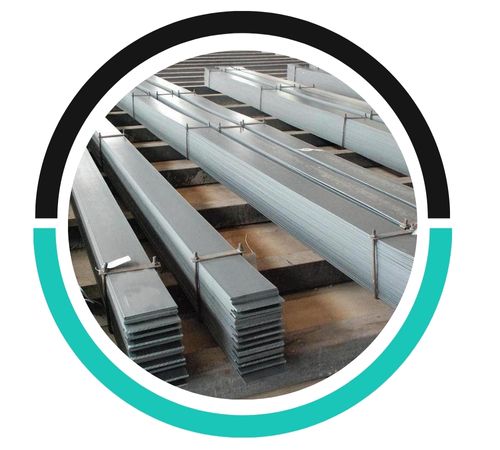

| Inconel 617 Flat Bars size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Inconel 617 Angle Bars size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Inconel 617 Channel Bars | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Alloy 617 Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Inconel 617 Billet Size | 1/2 to 495mm Diameter |

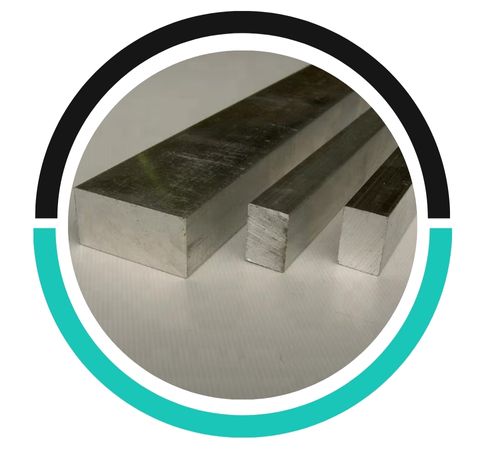

| Inconel 617 Rectangle Bar Size | 33 x 30mm to 295 x 1066mm |

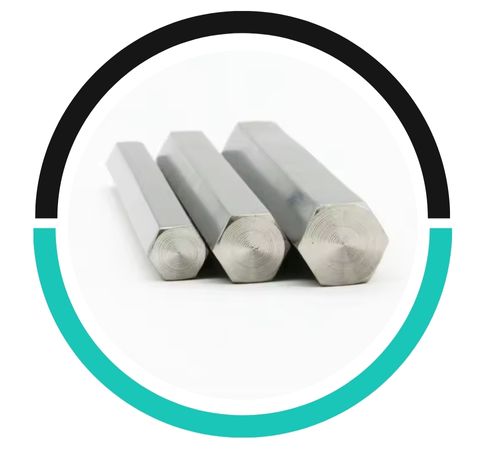

| Inconel 617 Hex Bar size | 2-100mm A/F |
| Inconel 617 Hollow Bars | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Diameter | 20mm, 30mm, 50mm, 80mm, 100mm, 150mm, 200mm, 500mm |
| Length | 1m-12m or as required |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

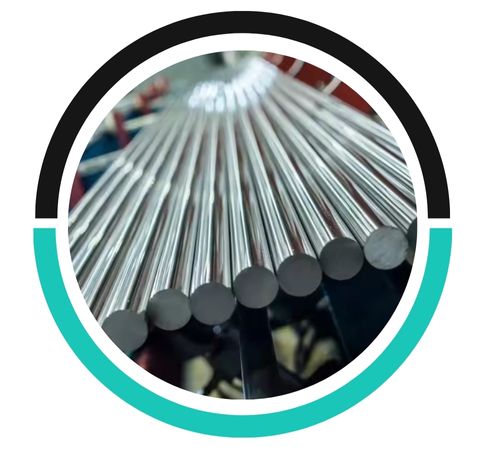

| Finish | hot rolled annealed, peeled, Bright, hot-worked and cold-worked rod and bar, centreless ground, Centreless Ground and Black, Polish, Cold Rolled (CR), hot rolled ( R), smooth turned, Cold (bright) drawn, Grinding, slit rolled edge, Rough Turned. |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bars, Cold Rolled, Rod |
| Processing | Bars cutting to 650mm |

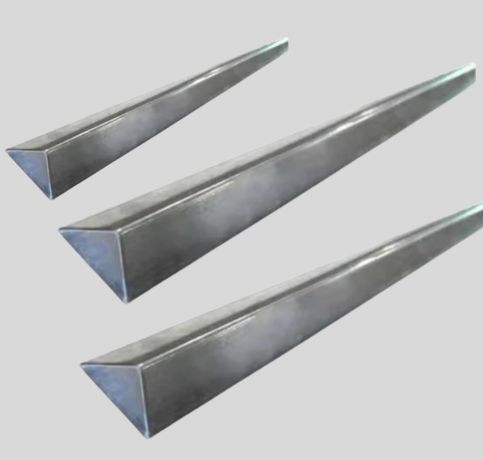

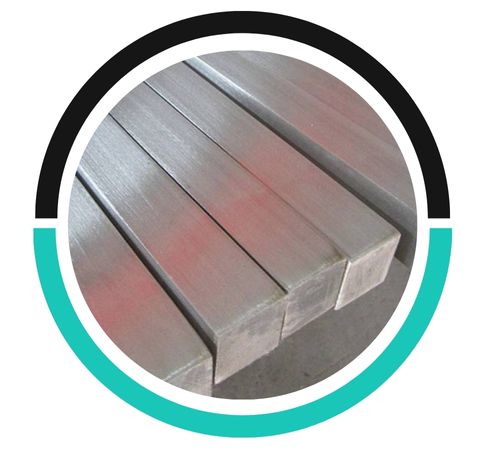

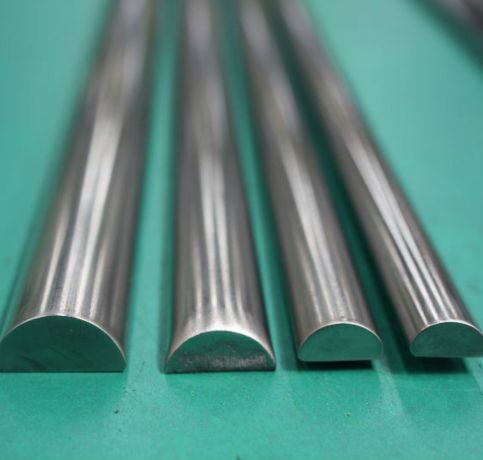

| Form | Rod, Round, Channel Bars, T-Bars, Flat Bars, Precision Ground Bars, Blocks, Square, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bars, Ingot, Billet, I/H Bars, Forging etc. |
| STANDARD | WERKSTOFF NR. | UNS |
| Inconel 617 | 2.4663 | N06617 |
| Grade | Ni | Cr | Fe | C | Mn | S | Mo | Si | Co |
| Inconel 617 | 48.85 – 62 | 20 – 24.0 | Balance | ≤ 0.15 | ≤ 1 | – | 8 – 10 | ≤ 1 | 10-15 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.3g/cm³ | 1363°C | ≥ 485 MPa | ≥ 275 MPa | 25 % |
Yes, Inconel 617 Bars/Rods are designed to perform exceptionally well in high-temperature environments up to 980°C.
Yes, they can be tailored in terms of size, dimensions, and specifications to meet specific industrial requirements.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@isismetals.com
Inconel 617 Bars and Rods find extensive use in the aerospace, petrochemical, and power generation industries, thanks to their ability to endure extreme temperatures and corrosive environments. They are particularly suited for components in gas turbines, heat exchangers, combustor cans, ducting, and furnace parts. In the realm of chemical processing, these bars and rods are utilized in reactors, piping, and catalytic converters that are exposed to oxidizing and carburizing conditions. The alloy’s impressive strength and stability also make it a great fit for industrial furnaces and thermal power plants.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Isis Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Manila, Philippines
