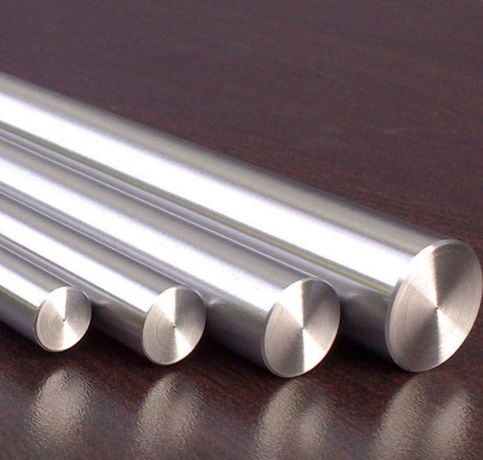

Isis Metals stands out as a reliable manufacturer and supplier of Inconel 686 Bars and Rods right in Manila, Philippines. They specialize in high-quality nickel-based alloys that are crafted for exceptional corrosion and oxidation resistance. Inconel 686 is a solid-solution strengthened alloy that not only boasts impressive mechanical strength but also offers remarkable resistance to harsh chemical environments. At Isis Metals, precision manufacturing and strict adherence to international quality standards are top priorities, ensuring they meet the demands of various industries. These Inconel 686 Bars and Rods find their place in chemical processing, marine applications, power generation, and pollution control systems, where durability and performance in extreme conditions are absolutely crucial.
Inconel 686 Bars and Rods are primarily made up of Nickel, Chromium, and Molybdenum, with a touch of Tungsten and Iron to boost resistance against localized corrosion, pitting, and crevice attack. This alloy showcases a tensile strength of up to 750 MPa and a yield strength around 400 MPa, all while maintaining ductility and toughness even in the harshest environments. It excels in resisting both oxidizing and reducing agents, including strong acids and chlorides. Plus, Inconel 686 holds onto its strength and stability even at elevated temperatures, making it a perfect fit for tough industrial and marine applications.
| Element | Content (%) |
|---|---|
| Nickel, Ni | 59 |
| Chromium, Cr | 19-23 |
| Molybdenum, Mo | 15-17 |
| Iron, Fe | ≤ 5 |
| Tungsten, W | 3.0-4.40 |
| Manganese, Mn | ≤ 0.75 |
| Phosphorous, P | ≤ 0.040 |
| Sulfur, S | ≤ 0.020 |
| Titanium, Ti | 0.020-0.25 |
| Carbon, C | ≤ 0.010 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 721.9 MPa | 104700 psi |
| Yield strength (@strain 0.200%) | 364 MPa | 52800 psi |
| Elastic modulus | 207 GPa | 30000 ksi |
| Shear modulus | 77 GPa | 11200 ksi |
| Poisson’s ratio | 0.34 | 0.34 |
| Elongation at break | 71% | 71% |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 721.9 MPa | 104700 psi |
| Yield strength (@strain 0.200%) | 364 MPa | 52800 psi |
| Elastic modulus | 207 GPa | 30000 ksi |
| Shear modulus | 77 GPa | 11200 ksi |
| Poisson’s ratio | 0.34 | 0.34 |
| Elongation at break | 71% | 71% |
| Properties | Metric | Imperial |
|---|---|---|
| Thermal expansion co-efficient (@21-100°C/69.8-212°F) | 11.97 µm/m°C | 6.650 µin/in°F |
Yes, Inconel 686 Bars/Rods are designed to perform exceptionally well in high-temperature environments up to 980°C.
Yes, Inconel 686 bars/rods are weldable using standard techniques, but preheating and specialized filler materials are recommended to ensure strong, corrosion-resistant welds.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@isismetals.com
Inconel 686 Bars and Rods are widely utilized in the chemical and petrochemical sectors for heat exchangers, pressure vessels, agitators, and reactor components that come into contact with highly corrosive media. They also play a vital role in marine, power generation, and pollution control equipment, where resistance to both oxidizing and reducing environments is key. Thanks to their superior strength and corrosion resistance, these alloys are ideal for desalination plants, flue gas scrubbers, and offshore oil and gas systems. Inconel 686 is particularly prized for applications that demand long-term performance in acidic and chloride-rich conditions, ensuring reliability when it matters most.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
