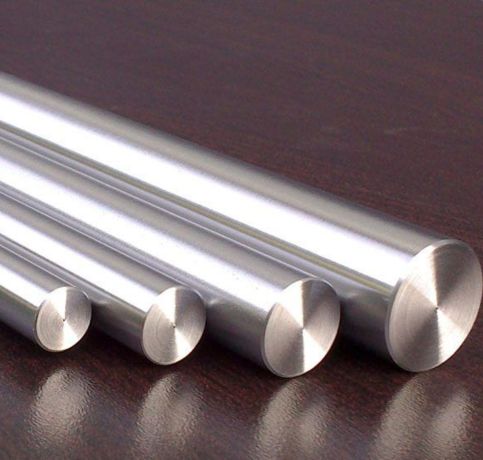

Isis Metals stands out as a top manufacturer and supplier of Inconel X-750 Bars and Rods, proudly based in Manila, Philippines. The company focuses on crafting high-performance nickel-chromium superalloys that are built to deliver outstanding strength, corrosion resistance, and stability even at high temperatures. Using cutting-edge metallurgical techniques and top-notch raw materials, their Inconel X-750 Bars and Rods are designed to meet international standards for precision, durability, and performance. Isis Metals offers these bars and rods in a variety of sizes and finishes, catering to industries like aerospace, power generation, chemical processing, and high-temperature engineering, where dependable performance in extreme conditions is a must.
The composition of Inconel X-750 Bars and Rods includes approximately 70% nickel, 14–17% chromium, up to 7% iron, and 2.75–3.25% niobium plus tantalum, along with trace amounts of titanium, aluminum, and cobalt. This unique blend gives them impressive tensile strength of up to 1,300 MPa, excellent creep resistance, and remarkable oxidation and corrosion resistance at temperatures reaching 700°C–750°C. The alloy also maintains its mechanical stability during thermal cycling, ensuring long-lasting reliability in tough high-temperature settings.
Specification : ASTM B 637 / ASME SB 637, AMS 5669, AMS 5698, AMS 5699
Dimensions : ASTM, ASME and API
Size : 5 mm To 500 mm
Diameter : 0.1 mm to 100 mm
Length : 100 mm To 3000 mm Long & Above
Finish : Bright, Polish & Black
Grade : Inconel X-750 – UNS N07750

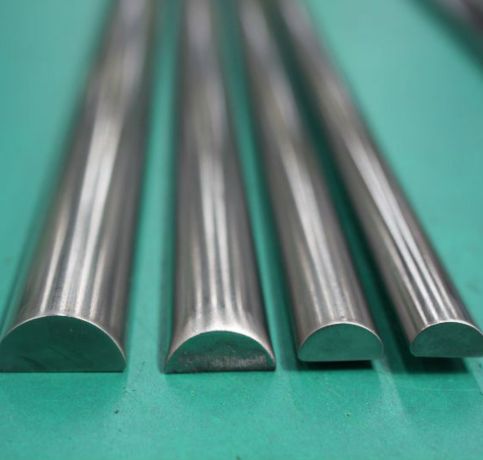

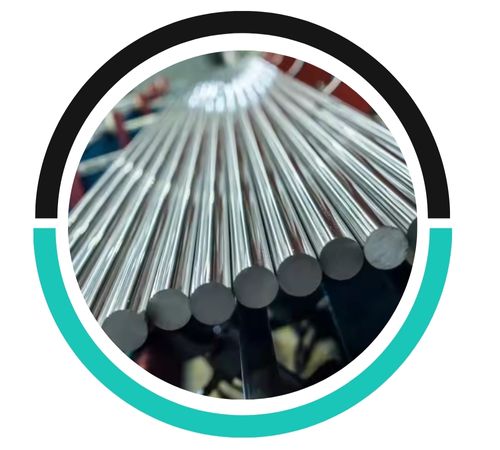

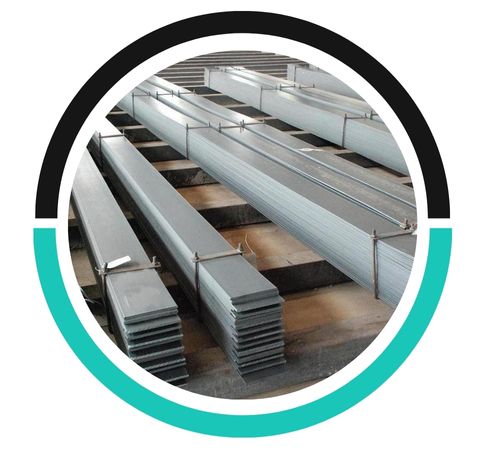

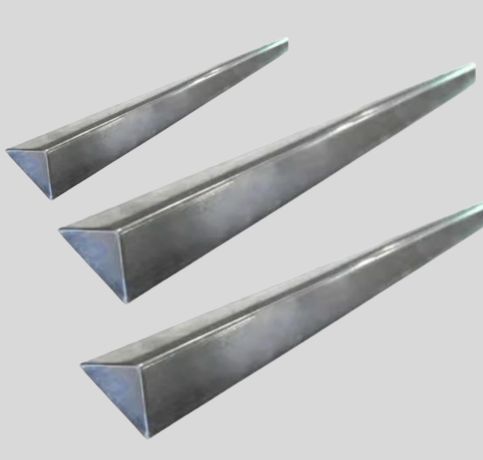

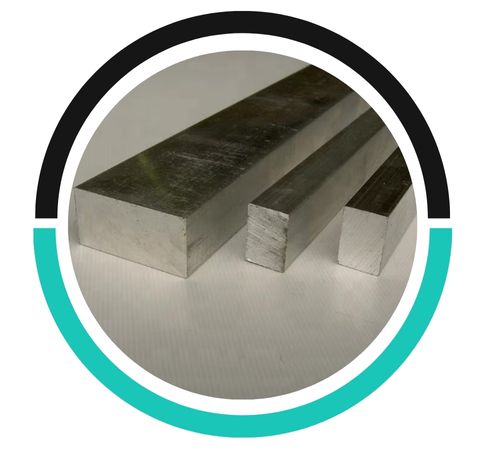

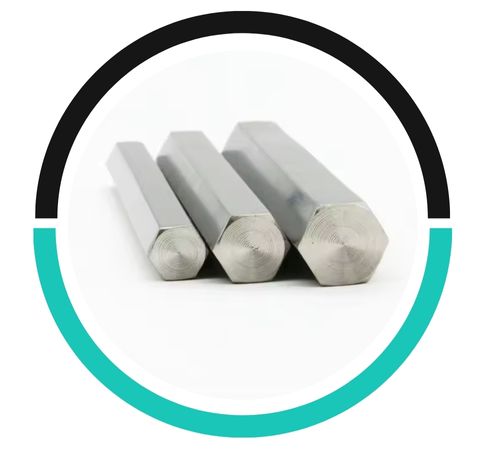

Form : Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
Our Inconel X-750 Round Bars conforms to NACE MR0175/ISO 15156
| Grade | Ni | Cr | Al | C | Mn | Ti | Cu | Si | S |
| Inconel X-750 | 70.0 min | 14.0 – 17.0 | 0.40 – 1.0 | .08 max | 1.00 max | 2.25 – 2.75 | 0.50 max | .50 max | .01 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.28 g/cm3 | 1430°C | 1267 MPa | 868 MPa | 25 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Inconel X750 | 2.4669 | N07750 |
| Temperature, °F | Mean Linear Expansion, in./in./°F x 10-6 from 70° F to Temperature Shown | Thermal Conductivity, Btu/in./hr/sq ft/°F | Specific Heat Btu/lb/°F | Diffusivity, sq ft/hr | Electrical Resistivity, ohm/circ mil/ft |
|---|---|---|---|---|---|
| -100 | 6.7 | 74 | 0.090 | 0.135 | – |
| 70 | – | 83 | 0.103 | 0.132 | 731 |
| -250 | 6.5 | 67 | 0.073 | 0.150 | – |
| -200 | 6.6 | 70 | 0.080 | 0.143 | – |
| 600 | 7.5 | 109 | 0.120 | 0.148 | 761 |
| 800 | 7.8 | 120 | 0.125 | 0.158 | 771 |
| 200 | 7.0 | 89 | 0.109 | 0.133 | 739 |
| 400 | 7.2 | 98 | 0.116 | 0.140 | 746 |
| 1000 | 8.1 | 131 | 0.130 | 0.169 | 783 |
| 1600 | 9.3 | 164 | 0.171 | 0.164 | 761 |
| 1800 | 9.8 | – | – | – | – |
| 1200 | 8.4 | 143 | 0.137 | 0.173 | 786 |
| 1400 | 8.8 | 154 | 0.151 | 0.172 | 775 |
Inconel X750 bars/rods are widely used in chemical processing, pollution control, and marine industries due to their superior corrosion resistance and durability in aggressive environments.
Yes, Inconel X750 bars/rods offer excellent resistance to strong acids like sulfuric, hydrochloric, and phosphoric acids, making them ideal for highly corrosive applications.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@isismetals.com
Inconel X-750 Bars and Rods find extensive applications in aerospace turbine components, nuclear reactors, gas turbines, heat exchangers, fasteners, springs, and high-temperature chemical processing equipment. Their exceptional strength at high temperatures, along with their corrosion resistance and thermal stability, makes them perfect for critical engineering tasks. These bars and rods promise a long service life, reliability, and consistent performance, making them essential for industries that demand high-strength, heat-resistant, and corrosion-resistant nickel-chromium alloys.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Isis Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Manila, Philippines
