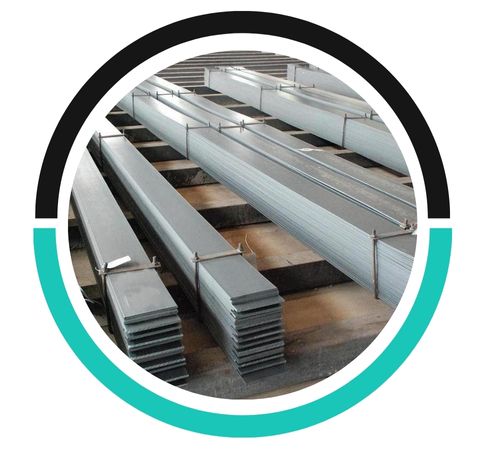

Isis Metals stands out as a top-notch manufacturer and supplier of Inconel Flat Bars, proudly based in Manila, Philippines. They specialize in high-quality nickel-chromium alloy products that are built to offer remarkable strength, corrosion resistance, and durability. These Inconel Flat Bars are crafted with precision to ensure they perform reliably even in the most extreme temperatures and corrosive environments, making them perfect for critical industrial applications. Isis Metals is committed to quality, ensuring that every flat bar adheres to strict international standards, resulting in dimensionally accurate, long-lasting, and high-performance materials. You’ll find these flat bars widely utilized in industries like aerospace, chemical processing, power generation, and marine, where they deliver dependable performance, outstanding mechanical strength, and impressive resistance to oxidation and corrosion.
The composition of Inconel Flat Bars is primarily nickel (about 70%) and chromium (15–20%), along with trace amounts of iron, molybdenum, and other alloying elements that boost their strength, corrosion resistance, and thermal stability. Mechanically, these flat bars showcase a tensile strength ranging from 800 to 1,000 MPa, along with excellent ductility, toughness, and superior resistance to high-temperature oxidation and corrosion. This unique blend of mechanical strength, corrosion resistance, and thermal stability makes Inconel Flat Bars a go-to choice for demanding applications in harsh, high-temperature settings.
| Size range | 12 mm – 46 mm (1/2 inch- 1 ¾ inch) |
| Flat Bar Size Range | Thickness: 2 -100mm / Width: 10 to 500mm |
| Manufacturing Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged |
| Crack Test | Magnetic Particle Inspection (MPI) |
| Length | 2 meters to 7.5 meters ( 8 feet to 24 feet), or Custom Length as per Requirement |
| Size Tolerances | h10 and h11 |
| Chamfering | Available in 30°, 45° & 60° through fully automatic, both-end chamfering machine |
| Surface Finish | Cold (bright) drawn, hot rolled, centreless ground, peeled, Rough Turned, hot rolled annealed, smooth turned, Bright, slit rolled edge, Polish, Grinding, Centreless Ground & Black |
| Heat Treatment | Annealed, Solution Annealed |
| Tolerance | H8, H10, H9, H11, H12, K10, H13K9, K12 K11 or as per clients’ requirements |
| Ni | Cr | Fe | Mo | Nb+Ta | C | Mn | Si | Ph | S | Al | Ti | Co | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | Bal | 20 | – | 8 | 3.15 | – | – | – | – | – | – | – | – |
| Max | – | 23 | 5 | 10 | 4.15 | 0.10 | 0.50 | 0.50 | 0.015 | 0.015 | 0.40 | 0.40 | 1.0 |
| 0.2% Proof Stress | Tensile Strength | Elongation | Reduction of area | Hardness |
|---|---|---|---|---|
| MPA | MPA | % | % | HRB |
| Min | Min | Min | Min | Min |
| 414 | 827 | 30 | 40 | 145 |
| Flat Size | KG’s per Metre | Standard Length (m) |
|---|---|---|
| 10 x 3 | 0.24 | 6.0 |
| 13 x 3 | 0.31 | 6.0 |
| 13 x 5 | 0.46 | 6.0 |
| 16 x 3 | 0.38 | 6.0 |
| 16 x 5 | 0.64 | 6.0 |
| 16 x 8 | 1.03 | 6.0 |
| 20 x 3 | 0.48 | 6.0 |
| 20 x 5 | 0.81 | 6.0 |
| 20 x 6 | 0.97 | 6.0 |
| 20 x 10 | 1.61 | 6.0 |
| 25 x 3 | 0.60 | 6.0 |
| 25 x 5 | 1.01 | 6.0 |
| 25 x 6 | 1.21 | 6.0 |
| 25 x 8 | 1.61 | 6.0 |
| 25 x 10 | 2.01 | 6.0 |
| 25 x 12 | 2.41 | 6.0 |
| 32 x 3 | 0.77 | 6.0 |
| 32 x 5 | 1.29 | 6.0 |
| 32 x 6 | 1.55 | 6.0 |
| 32 x 8 | 2.06 | 6.0 |
| 32 x 10 | 2.58 | 6.0 |
| 32 x 12 | 3.09 | 6.0 |
| 40 x 3 | 0.97 | 6.0 |
| 40 x 5 | 1.61 | 6.0 |
| 40 x 6 | 1.93 | 6.0 |
| 40 x 8 | 2.58 | 6.0 |
| 40 x 10 | 3.22 | 6.0 |
| 40 x 12 | 3.86 | 6.0 |
| 40 x 16 | 5.15 | 6.0 |
| 40 x 20 | 6.14 | 6.0 |
| 50 x 3 | 1.21 | 6.0 |
| 50 x 5 | 2.01 | 6.0 |
| 50 x 6 | 2.41 | 6.0 |
| 50 x 8 | 3.22 | 6.0 |
| 50 x 10 | 4.02 | 6.0 |
| 50 x 12 | 4.83 | 6.0 |
| 50 x 16 | 6.44 | 6.0 |
| 50 x 20 | 8.05 | 6.0 |
| 50 x 25 | 10.1 | 6.0 |
| 65 x 3 | 1.57 | 6.0 |
| 65 x 5 | 2.62 | 6.0 |
| 65 x 6 | 3.14 | 6.0 |
| 65 x 8 | 4.18 | 6.0 |
| 65 x 10 | 5.23 | 6.0 |
| 65 x 12 | 6.28 | 6.0 |
| 65 x 16 | 8.37 | 6.0 |
| 65 x 20 | 10.5 | 6.0 |
| 65 x 25 | 13.1 | 6.0 |
| 75 x 5 | 3.02 | 6.0 |
| 75 x 6 | 3.62 | 6.0 |
| 75 x 8 | 4.83 | 6.0 |
| 75 x 10 | 6.04 | 6.0 |
| 75 x 12 | 7.24 | 6.0 |
| 75 x 16 | 9.66 | 6.0 |
| 75 x 20 | 12.1 | 6.0 |
| 75 x 25 | 15.1 | 6.0 |
| 75 x 40 | 24.1 | 6.0 |
| 90 x 5 | 3.62 | 6.0 |
| 90 x 6 | 4.35 | 6.0 |
| 90 x 8 | 5.79 | 6.0 |
| 90 x 10 | 7.24 | 6.0 |
| 90 x 12 | 8.69 | 6.0 |
| 100 x 5 | 4.02 | 6.0 |
| 100 x 6 | 4.83 | 6.0 |
| 100 x 8 | 6.44 | 6.0 |
| 100 x 10 | 8.05 | 6.0 |
| 100 x 12 | 9.66 | 6.0 |
| 100 x 16 | 12.9 | 6.0 |
| 100 x 20 | 16.1 | 6.0 |
| 100 x 25 | 20.1 | 6.0 |
| 100 x 50 | 40.2 | 6.0 |
| 110 x 6 | 5.31 | 6.0 |
| 110 x 8 | 7.08 | 6.0 |
| 110 x 10 | 8.85 | 6.0 |
| 110 x 12 | 10.6 | 6.0 |
| 130 x 5 | 5.23 | 6.0 |
| 130 x 6 | 6.28 | 6.0 |
| 130 x 8 | 8.37 | 6.0 |
| 130 x 10 | 10.5 | 6.0 |
| 130 x 12 | 12.6 | 6.0 |
| 130 x 16 | 16.7 | 6.0 |
| 130 x 20 | 20.9 | 6.0 |
| 130 x 25 | 26.2 | 6.0 |
| 150 x 5 | 6.04 | 6.0 |
| 150 x 6 | 7.24 | 6.0 |
| 150 x 8 | 9.66 | 6.0 |
| 150 x 10 | 12.1 | 6.0 |
| 150 x 12 | 14.5 | 6.0 |
| 150 x 16 | 19.3 | 6.0 |
| 150 x 20 | 24.1 | 6.0 |
| 150 x 25 | 30.1 | 6.0 |
| 150 x 50 | 60.4 | 6.0 |
| 180 x 5 | 7.24 | 6.0 |
| 180 x 6 | 8.69 | 6.0 |
| 180 x 10 | 14.5 | 6.0 |
| 180 x 12 | 17.4 | 6.0 |
| 180 x 16 | 23.2 | 6.0 |
| 180 x 20 | 29.0 | 6.0 |
| 180 x 25 | 36.2 | 6.0 |
| 200 x 6 | 9.66 | 6.0 |
| 200 x 8 | 12.9 | 6.0 |
| 200 x 10 | 16.1 | 6.0 |
| 200 x 12 | 19.3 | 6.0 |
| 200 x 16 | 25.7 | 6.0 |
| 200 x 20 | 32.2 | 6.0 |
| 200 x 25 | 40.3 | 6.0 |
| 250 x 6 | 12.1 | 6.0 |
| 250 x 8 | 16.1 | 6.0 |
| 250 x 10 | 20.1 | 6.0 |
| 250 x 12 | 24.1 | 6.0 |
| 250 x 16 | 32.2 | 6.0 |
| 250 x 20 | 40.2 | 6.0 |
| 250 x 25 | 50.3 | 6.0 |
| 300 x 6 | 14.5 | 6.0 |
| 300 x 8 | 19.3 | 6.0 |
| 300 x 10 | 24.1 | 6.0 |
| 300 x 12 | 29.0 | 6.0 |
| 300 x 16 | 38.6 | 6.0 |
| 300 x 20 | 48.3 | 6.0 |
| 300 x 25 | 60.4 | 6.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@isismetals.com
To maintain Inconel Flat Bars, ensure proper storage in dry, cool environments to prevent oxidation. Regularly inspect for wear or damage, and clean with non-abrasive methods to preserve surface integrity.
Inconel Flat Bars find extensive use in industries that demand materials with high strength, corrosion resistance, and heat resistance. You’ll commonly see them in heat exchangers, turbine components, chemical processing equipment, exhaust systems, marine hardware, and aerospace structural parts. They’re also essential in power generation, petrochemical plants, and high-temperature furnace equipment, thanks to their ability to maintain mechanical integrity and performance under extreme conditions. Isis Metals delivers Inconel Flat Bars that promise a long service life, reliable performance, and consistent quality for critical industrial, engineering, and high-tech applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
