Isis Metals is a reliable manufacturer and supplier in Manila, Philippines, which offers premium-quality stainless steel products. Stainless Steel 317 Square Bars and Rods are some of the best-selling products among our long list, known for their excellent corrosion resistance, strength, and durability. Made with precision, these products are perfect for harsh environments where reliability and performance are vital. We, at Isis Metals, pride ourselves on supplying material of international standards to industries including construction, automotive, and manufacturing. Excellence in quality, timely supply, and customer satisfaction has made us the partner of choice for high-quality stainless steel solutions for diversified industrial applications.
Stainless Steel 317 Square Bars and Rods consist mainly of iron along with 18–20% chromium, 11–14% nickel, and 3–4% molybdenum. Due to their exclusive composition of alloy, they have better resistance to corrosion under acidic and chloride-containing conditions. They have tensile strength of 515–700 MPa, yield strength of 205 MPa, and elongation of approximately 40%. These bars and rods also possess good resistance against pitting, crevice corrosion, and stress cracking. Together with higher weldability and formability, they work well in corrosive and high-temperature industrial uses.

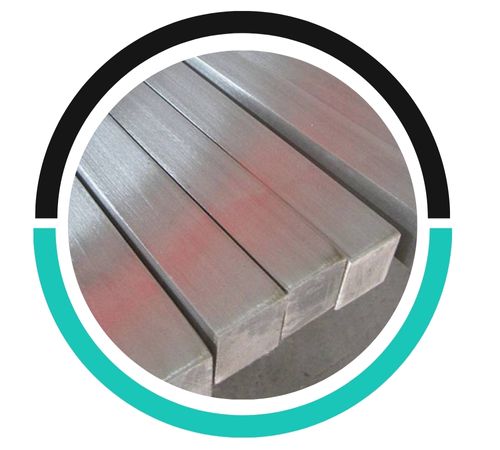

Stainless Steel 317 Square Bars Specification :
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 317 | 0.08 max. | 18.0 – 20.0 | 2.00 max. | 11.0 – 14.0 | 0.045 max. | 0.03 max. | 1.00 max. |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi ” 75000, MPa ” 515 | Psi ” 30000, MPa ” 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 317 | 1.4449 | S31700 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Yes, Stainless Steel 317 square bars can be welded using conventional welding methods. However, pre-heating and post-weld heat treatment may be required to avoid cracking.
Yes, Stainless Steel 317 square rods can be heat-treated, typically through solution annealing. However, they are not hardenable by heat treatment like some other stainless steels.
Stainless Steel 317 Square Bars offer excellent corrosion resistance, particularly against chlorides and acids, along with high strength and durability. They are widely used in chemical, petrochemical, and food processing industries.
Stainless Steel 317 Square Bars and Rods find extensive applications in industries that need perfect corrosion and heat resistance. These are used in chemical processing plants, pharma manufacturing, and food processing machinery for withstanding heavy chemicals and acids such as phosphoric and sulfuric acid. They can also be used for marine exposures, heat exchangers, pumps, valves, and pressure vessels. Moreover, these bars are applied in petrochemical, aerospace, and construction sectors for structure components that experience higher temperatures. These bars have high strength, toughness, and corrosion resistance, which confirms effective performance for longer durations in the most challenging industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
