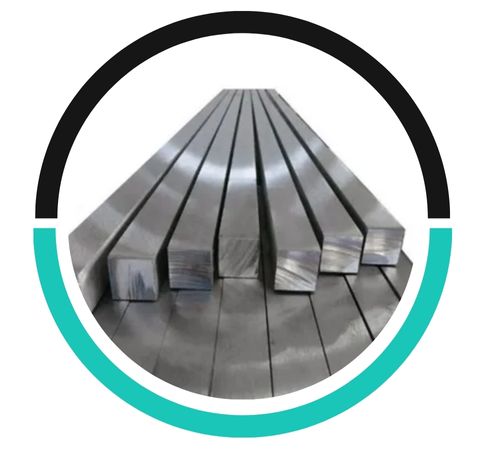

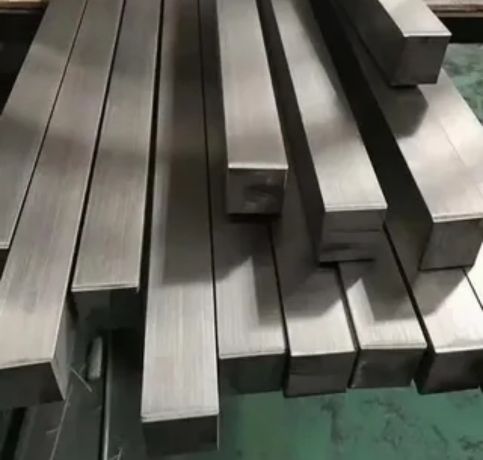

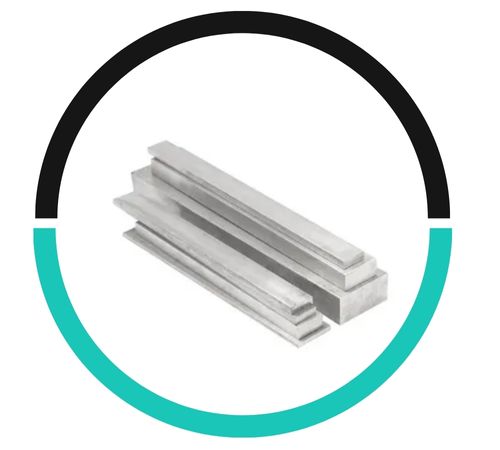

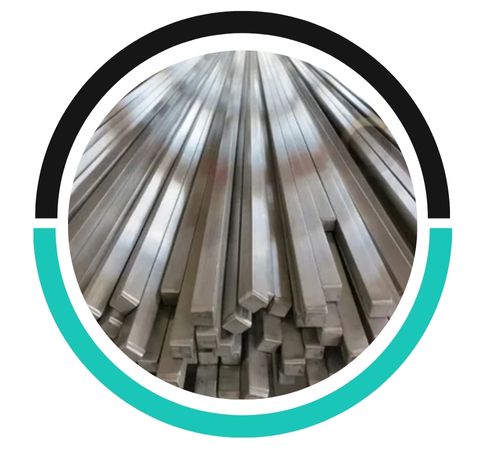

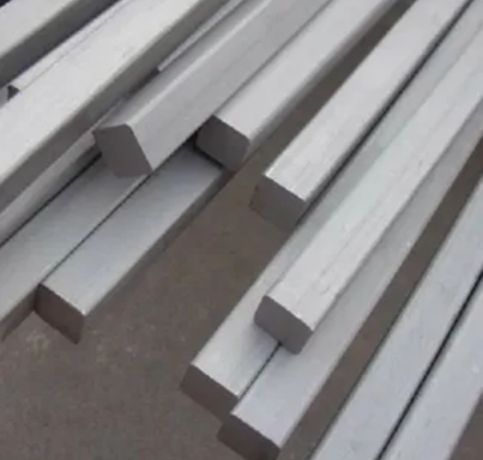

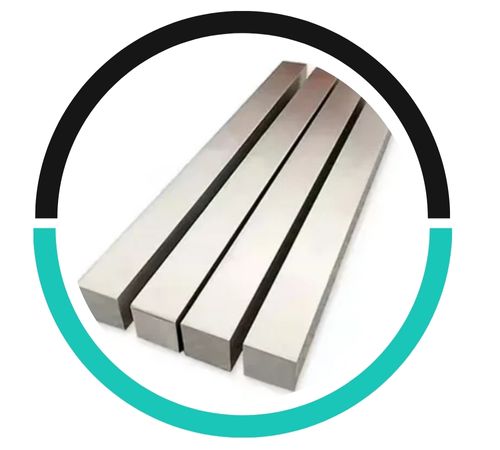

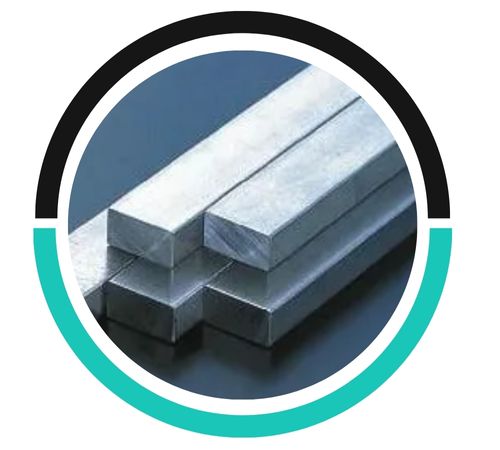

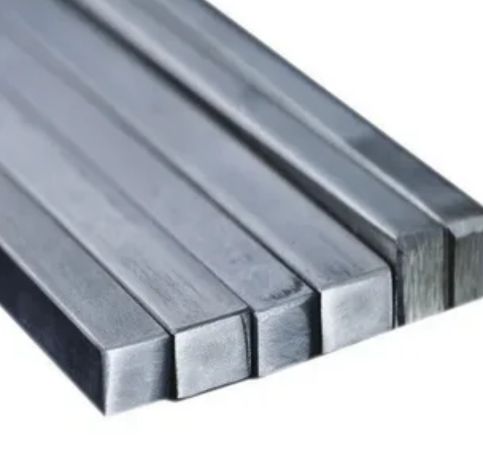

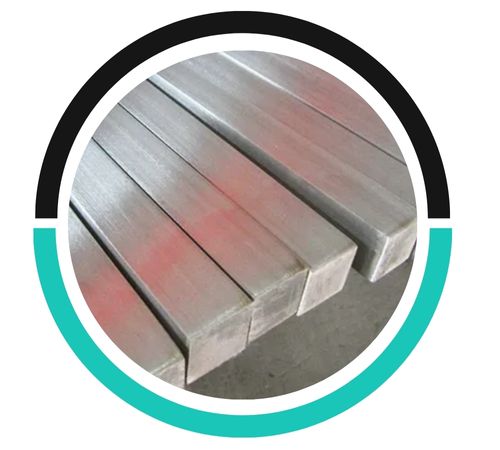

Isis Metals stands out as a top manufacturer and supplier of Stainless Steel 347H Square Bars and Rods right in Manila, Philippines. They offer high-quality products designed to excel in tough, high-temperature, and corrosive settings. Renowned for their exceptional strength, heat resistance, and durability, these bars and rods are perfect for demanding industrial tasks. With cutting-edge technology and strict quality control in their manufacturing process, Isis Metals guarantees reliable performance and precise dimensions. Committed to customer satisfaction, they provide Stainless Steel 347H materials to various sectors, including petrochemical, oil and gas, power generation, and chemical processing throughout the Philippines.
Stainless Steel 347H Square Bars and Rods are a type of stabilized austenitic stainless steel, featuring chromium (17–19%), nickel (9–13%), and niobium, which boosts their resistance to intergranular corrosion. The “H” designation signifies a higher carbon content (0.04–0.10%), enhancing their strength at elevated temperatures. These bars showcase impressive tensile strength of around 515 MPa and yield strength of about 205 MPa, along with good ductility and oxidation resistance up to 900°C. Their robust mechanical properties and stability under thermal stress make them ideal for extended exposure to high temperatures and corrosive conditions.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 347H | 0.04 – 0.10 | 17.0 – 19.0 | 2.00 max. | 9.0-12.0 | 0.045 max. | 0.03 max. | 0.75 max. |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 347H | 7.96 | 1450 ℃ | 515 | 205 | 40 | 201 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 347H | 1.4550 | S34709 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 347H Square Bars offer excellent high-temperature strength, resistance to intergranular corrosion, and superior weldability. They are ideal for applications in extreme environments, such as chemical processing and heat exchangers.
Yes, Stainless Steel 347H Square Bars are fully recyclable and retain their properties after recycling. This makes them an environmentally sustainable choice for various applications.
No, Stainless Steel 347H Square Bars are generally non-magnetic in their annealed condition. However, slight magnetism may develop after cold working.
Stainless Steel 347H Square Bars and Rods find extensive use in high-temperature and high-pressure scenarios where corrosion and oxidation resistance are crucial. They are commonly utilized in furnace components, boiler tubes, heat exchangers, exhaust manifolds, and pressure vessels. Additionally, these materials are vital in the aerospace, petrochemical, and power generation sectors for parts that face continuous heating and thermal cycling. Their remarkable mechanical stability and resistance to sensitization make them excellent choices for welding and fabrication processes.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
