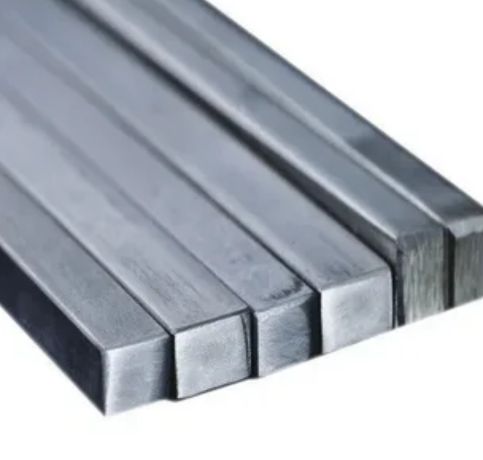

Isis Metals, a reliable manufacturer and supplier located in Manila, Philippines, focuses on delivering top-notch Stainless Steel 416 Square Bars and Rods that blend strength, machinability, and durability. Crafted with precision from high-quality stainless steel, these bars and rods are perfect for industries that need components to perform consistently in both mechanical and corrosive environments. Stainless Steel 416 is a free-machining martensitic stainless steel recognized for its outstanding cutting performance and smooth surface finish. Isis Metals guarantees consistency, precise dimensions, and compliance with international standards, providing products that meet the demands of industrial and engineering applications.
Stainless Steel 416 Square Bars and Rods are martensitic stainless steels mainly made up of chromium (12–14%), carbon (0.15%), manganese (1.25%), silicon (1%), and sulfur (0.15%). The inclusion of sulfur boosts machinability while still offering decent corrosion and oxidation resistance. These bars showcase impressive tensile strength (approximately 550–700 MPa) and good hardness post-heat treatment. SS 416 is known for its excellent machinability, moderate resistance to corrosion, and magnetic properties across all conditions. It’s particularly suited for parts that need intricate machining and reliable mechanical performance in moderately stressful environments.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 416 | 0.15 | 14.0 – 12.0 | 1.25 | – | 0.06 | 0.15 | 1 |
| Element | Density, lb/in3 | Melting Point | Electrical Resistivity |
| SS 416 | 0.282 lbs/in3 7 .80 g/cm3 | 2700 – 2790 °F (1488 – 1530 °C) | At 70 °F (21 °C): 343.0 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 416 | 1.4005 | S41600 | SUS 416 | 416S21 | – | – | X12CrS13 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Yes, Stainless Steel 416 square bars are susceptible to galvanic corrosion when in contact with more noble metals, such as copper or brass, in the presence of an electrolyte. Proper insulation and material selection can help mitigate this risk.
Yes, we provide 416 Stainless Steel Square Bars and Rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@isismetals.com
Stainless Steel 416 square rods are available in various sizes, typically ranging from 1/4" to 6" in width. They come in finishes like cold-finished, hot-rolled, or polished, depending on the application requirements.
Stainless Steel 416 Square Bars and Rods find extensive use in applications that demand great machinability and moderate corrosion resistance. They are frequently utilized in making gears, shafts, valve components, pump parts, fasteners, and motor shafts. The alloy’s capability to achieve a fine surface finish makes it ideal for precision instruments and automotive components. Additionally, SS 416 Square Bars/Rods are employed in machine parts, bolts, and fittings that require high strength and precise dimensions. Their versatility and cost-effectiveness make them a popular choice in various industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
