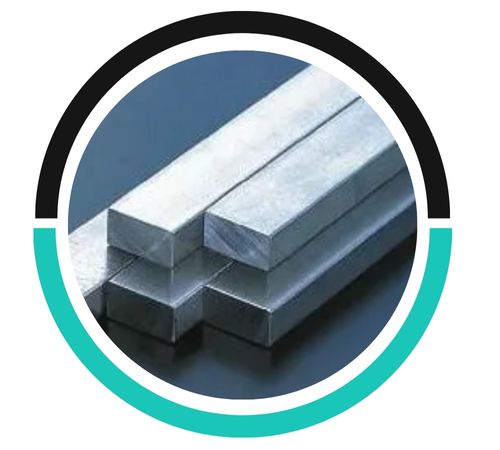

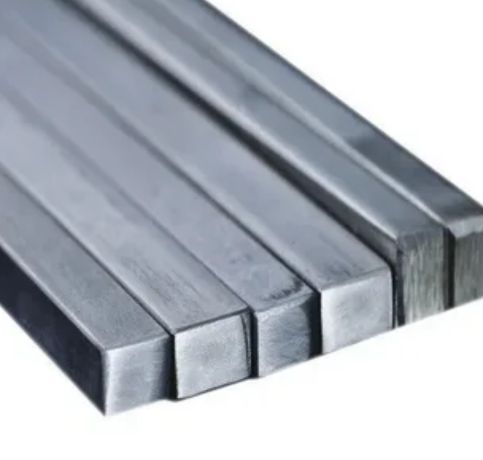

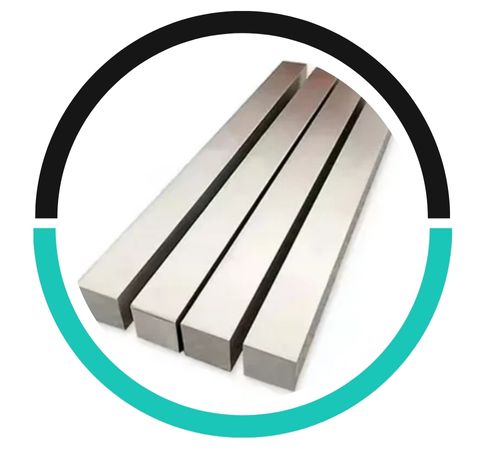

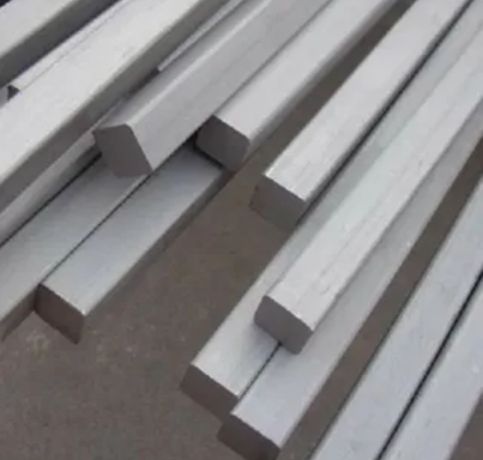

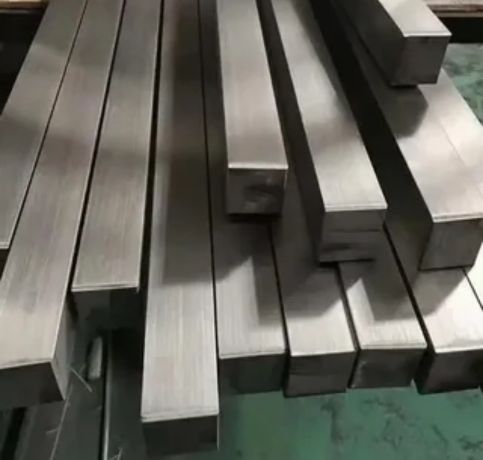

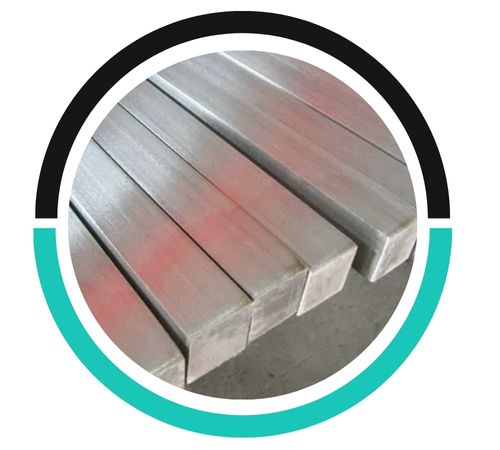

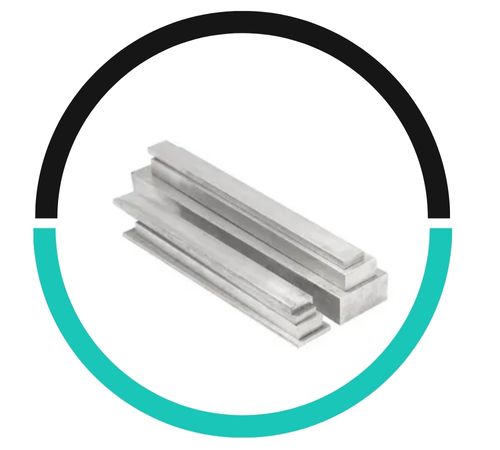

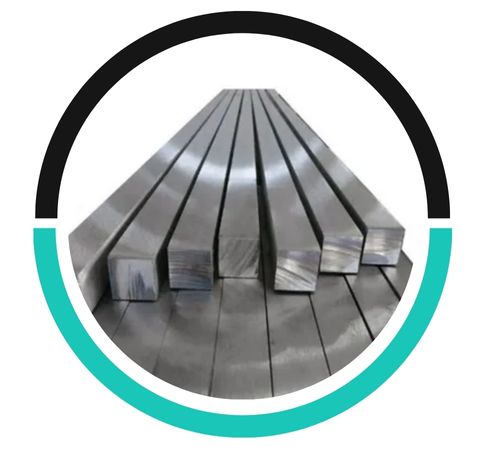

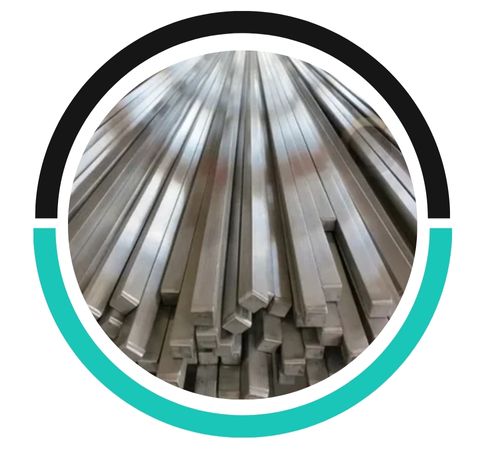

Isis Metals, located in Manila, Philippines, is a reliable manufacturer and supplier known for its top-notch Stainless Steel 410 Square Bars and Rods. These products are crafted for outstanding strength, hardness, and durability. Made from martensitic stainless steel, they boast impressive mechanical properties and decent corrosion resistance. The beauty of Stainless Steel 410 lies in its ability to be hardened and tempered, providing excellent wear and impact resistance—perfect for tough industrial and engineering tasks. At Isis Metals, we adhere to strict manufacturing standards, ensuring our products deliver reliability and high performance for construction, tooling, and mechanical equipment sectors.
Stainless Steel 410 Square Bars and Rods are made up of 11.5–13.5% chromium, 0.08–0.15% carbon, along with trace amounts of manganese, silicon, phosphorus, and sulfur. This unique blend strikes a great balance between strength, hardness, and moderate corrosion resistance. The material boasts a tensile strength ranging from 450 to 950 MPa and can reach a Rockwell hardness of up to 45 HRC after heat treatment. Additionally, SS 410 offers good machinability, fair weldability, and can withstand oxidation up to 650°C, making it a solid choice for components that face mechanical stress and mild corrosive environments.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 410 | 0.15 | 11.5-13.5 | 1.00 | 0.75 | 0.040 | 0.030 | 1.00 |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50 mm) | Hardness Brinell (HB) | Impact Charpy V (J) |
|---|---|---|---|---|---|
| Annealed * | 480 min | 275 min | 16 min | – | – |
| 204 | 1475 | 1005 | 11 | 400 | 30 |
| 316 | 1470 | 961 | 18 | 400 | 36 |
| 427 | 1340 | 920 | 18.5 | 405 | # |
| 538 | 985 | 730 | 16 | 321 | # |
| 593 | 870 | 675 | 20 | 255 | 39 |
| 650 | 300 | 270 | 29.5 | 225 | 80 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 410 | 1.4006 | S41000 | SUS 410 | 410S21 | – | – | 56A |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Yes, Stainless Steel 410 square bars can be welded, but preheating and post-weld heat treatment are often recommended to avoid cracking. Proper welding techniques ensure strong, durable joints.
To ensure the quality of Stainless Steel 410 square bars, source them from reputable suppliers and conduct material testing, such as tensile strength and hardness tests. Additionally, check for proper surface finish and dimensional accuracy.
Yes, we provide 410 Stainless Steel Square Bars and Rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@isismetals.com
Stainless Steel 410 Square Bars and Rods find their place in various industries that demand high mechanical strength and moderate corrosion resistance. Common uses include the production of pump shafts, valve components, fasteners, cutlery, turbine blades, and surgical instruments. In the automotive and petrochemical fields, SS 410 is favored for parts that endure wear, friction, and heat. The square shape enhances rigidity and simplifies machining, making it perfect for structural and precision-engineered applications. Its durability, heat resistance, and ability to retain hardness after tempering make SS 410 a versatile option for mechanical needs.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
