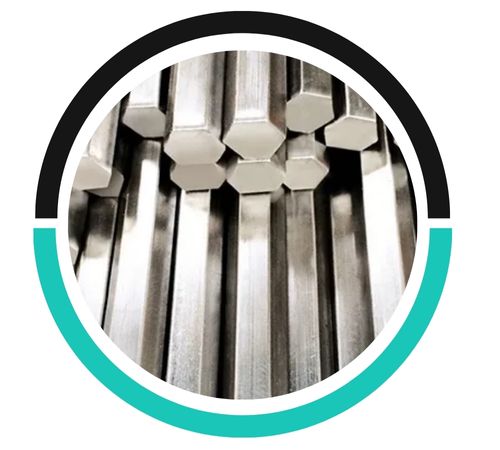

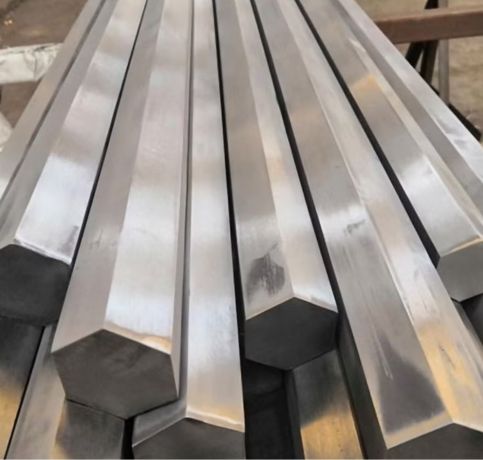

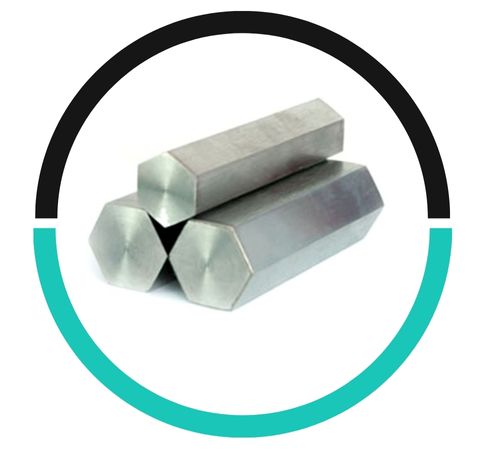

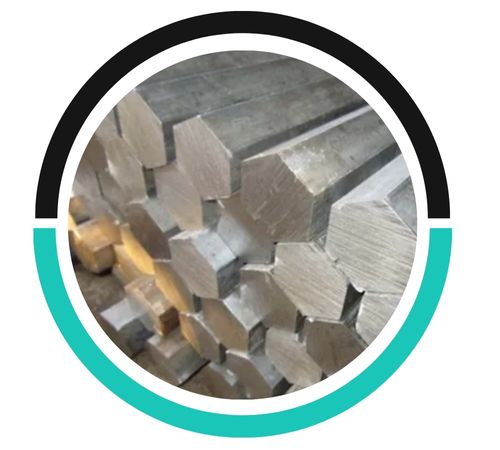

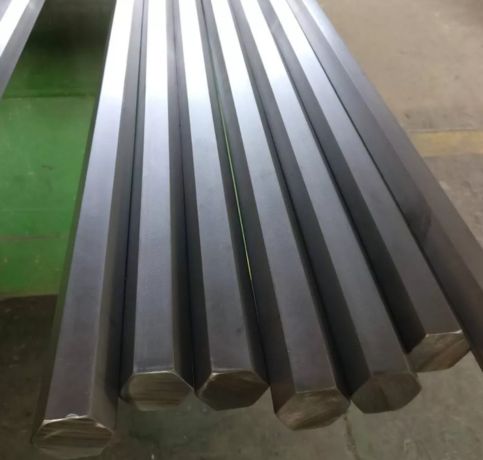

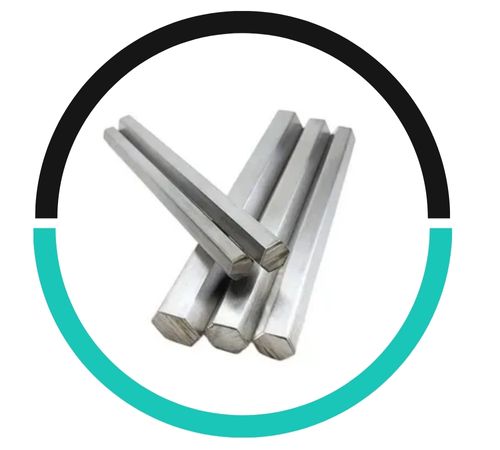

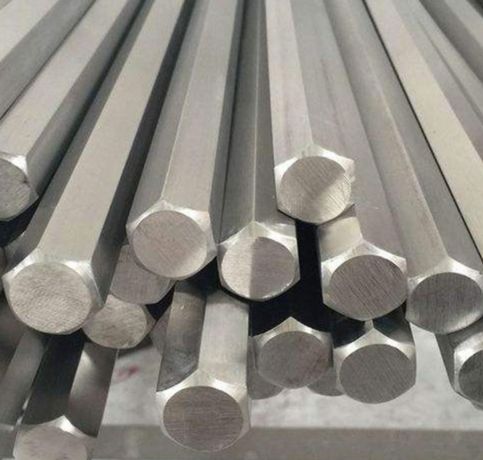

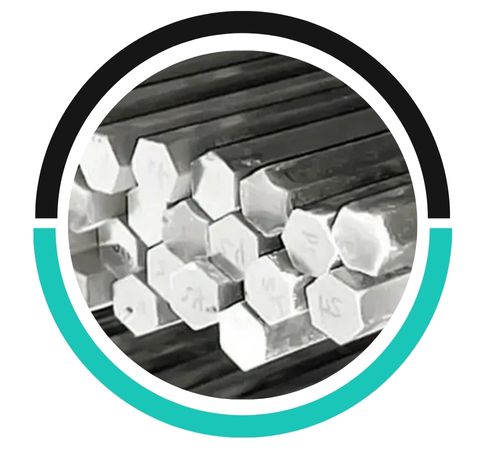

Isis Metals, Manila, Philippines-based, is a premier producer and supplier of high-grade stainless steel products crafted to suit diverse industrial demands. Guided by a firm commitment towards precision, quality, and performance, the company excels at high-strength stainless steel alloys that are custom-made as per customers’ specifications. Among its major products, Stainless Steel 17-7 PH Hex Bars and Rods are renowned for their excellent corrosion resistance, fatigue strength, and reliability. These bars find applications in aerospace, automotive, military, and chemical industries, where dependable performance under extreme stress and harsh environments is critical.
Stainless Steel 17-7 PH Hex Bar and Rod has about 17% chromium, 7% nickel, and small quantities of aluminum, carbon, manganese, silicon, and phosphorus. The alloy has excellent mechanical properties, such as tensile strength of 1240–1380 MPa and yield strength of about 1100 MPa in full hard condition. It has good fatigue and stress rupture resistance, as well as corrosion resistance in mild chemical environments. The alloy can be heat-treated to get the desired mechanical properties, rendering it extremely versatile for harsh industrial and structural applications.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 17-7 PH | .09 | – | 16.0 – 18.0 | – | Bal | 1.0 | 6.50 – 7.75 | .04 | 0.04 | 1.0 max |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 17-7 PH | 170000 psi | 140000 psi | 6% | 38 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-7 PH | – | S17700 |
| HEXAGONS | ||
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Common challenges with Stainless Steel 17-7 PH Hex Bar include difficulty in machining due to its hardness, sensitivity to stress corrosion cracking, and the need for precise heat treatment to achieve optimal properties.
Stainless Steel 17-4 PH Hex Bar and Rod should be stored in a dry, clean environment, away from moisture and corrosive substances. Ensure proper ventilation and avoid direct contact with chemicals or humidity.
Yes, Stainless Steel 17-7 PH Hex Bar and Rod are fully recyclable. Stainless steel can be melted down and reused, making it an environmentally friendly material for sustainable manufacturing processes.
Stainless Steel 17-7 PH Hex Bars and Rods are used extensively in high-strength, corrosion-resistant, and fatigue-efficient applications in industries that demand the same. Applications include aerospace components like springs, landing gear components, and fasteners, as well as automotive and military hardware. They are further used in chemical processing, food businesses, and structural use requiring strength at high stress. The alloy’s capacity for maintaining strength even after heat treatment and also resistance to oxidation and wear gives it a good use in valves, shafts, pressure housings, and precision mechanical components in industrial as well as commercial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
