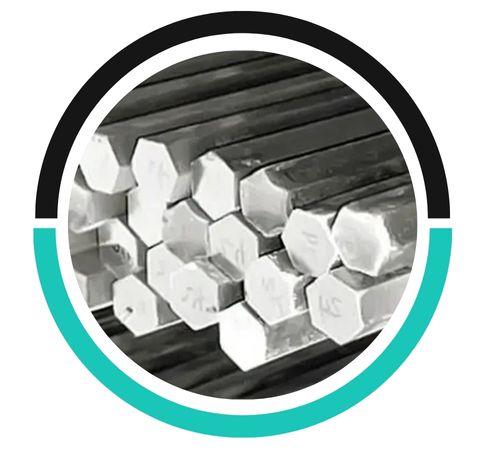

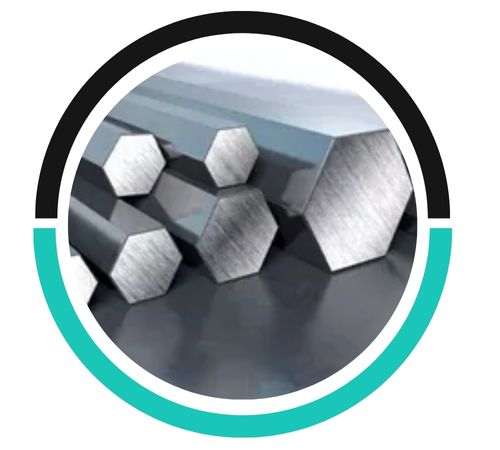

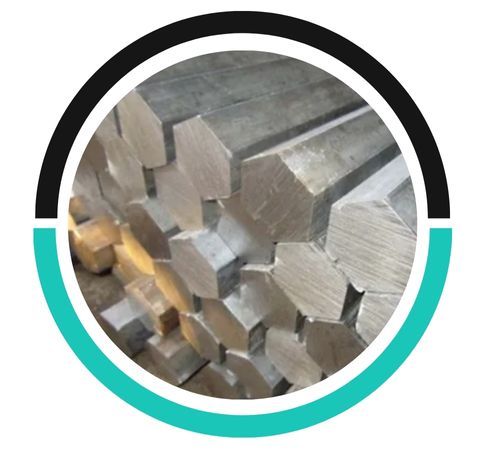

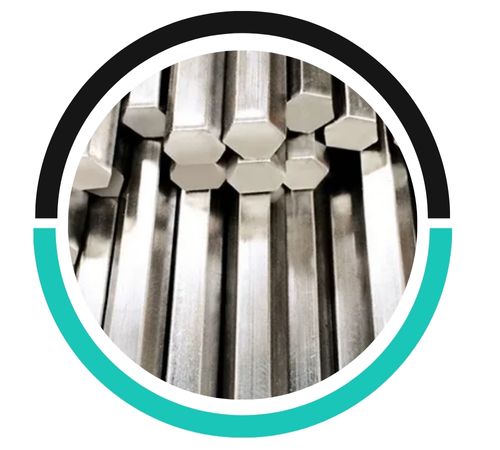

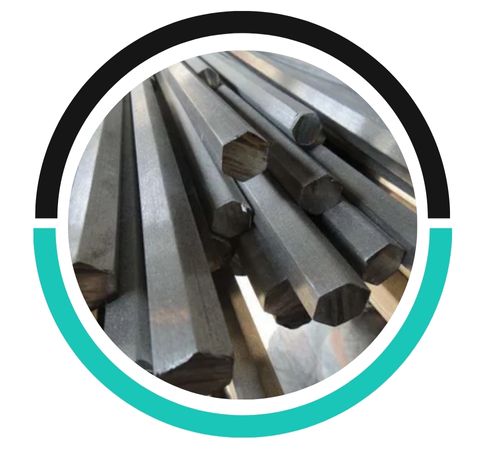

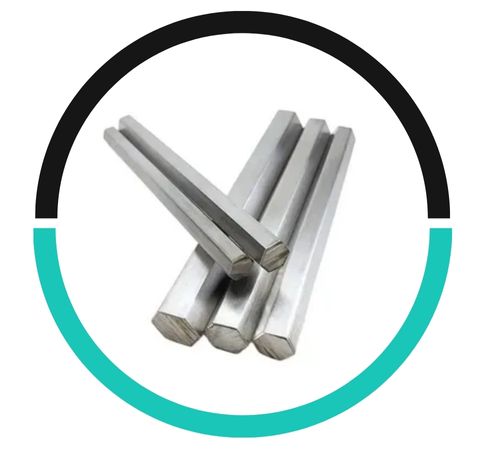

Isis Metals stands out as a premier manufacturer and supplier of Stainless Steel 410 Hex Bars, proudly based in Manila, Philippines. We’re recognized for delivering top-notch stainless steel products that are built for strength, precision, and durability. Our Stainless Steel 410 Hex Bars are crafted using cutting-edge manufacturing techniques and high-quality raw materials, ensuring exceptional mechanical performance and resistance to corrosion. With impressive hardness and precise dimensions, these hex bars are perfect for a variety of industrial and structural applications. At Isis Metals, we’re committed to providing reliable Stainless Steel 410 Hex Bars that meet international standards and cater to diverse engineering and fabrication needs.
Stainless Steel 410 Hex Bars are a type of martensitic stainless steel, primarily made up of chromium (11.5–13.5%), carbon (up to 0.15%), manganese (up to 1.00%), silicon (up to 1.00%), along with trace amounts of sulfur and phosphorus. These bars boast a tensile strength ranging from 480 to 680 MPa, a yield strength of about 275 MPa, and an elongation of roughly 20%. They offer good corrosion resistance, high hardness, and excellent resistance to wear and heat. The material is magnetic in all conditions and can be hardened through heat treatment, ensuring it remains strong, durable, and performs well in demanding situations.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 410 | 0.15 | 11.5-13.5 | 1.00 | 0.75 | 0.040 | 0.030 | 1.00 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
SS 410 Hex Bar has moderate corrosion resistance compared to other stainless steels like 304 or 316. It is susceptible to corrosion in chloride-rich environments and high-temperature conditions, making it less suitable for highly corrosive or marine applications.
SS 410 Hex Bar's hardness requires careful machining, as it can be challenging to cut and grind. High cutting speeds, proper tooling, and coolant usage are essential to prevent work hardening, ensure smooth surfaces, and extend tool life during processing.
Stainless Steel 410 Hex Bars find their place in various industries that require materials that are strong, heat-resistant, and wear-resistant. They’re perfect for making fasteners, bolts, nuts, pump shafts, valve components, and machine parts. These hex bars are widely utilized in the automotive, marine, petrochemical, and aerospace sectors due to their outstanding mechanical strength and moderate corrosion resistance. They’re also suitable for cutlery, surgical tools, and turbine blades, where durability and dimensional stability are essential. The excellent machinability and hardenability of Stainless Steel 410 Hex Bars make them a go-to choice for many applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
