Isis Metals is a well-respected manufacturer and supplier of Titanium Grade 3 Bars and Rods, proudly based in Manila, Philippines. They’re known for delivering top-notch titanium products that stand out for their strength, corrosion resistance, and reliability. Thanks to cutting-edge production technology and rigorous quality standards, Isis Metals guarantees that their products meet global specifications and performance benchmarks. Titanium Grade 3 strikes a fantastic balance between strength and formability, making it a go-to choice for demanding engineering and industrial applications. Isis Metals serves a variety of sectors, including aerospace, marine, chemical, and medical industries, offering durable and efficient titanium solutions that drive modern innovation.
Titanium Grade 3 Bars and Rods are primarily made up of titanium (Ti ≥ 99.2%), with minor additions of iron (Fe ≤ 0.30%), oxygen (O ≤ 0.35%), carbon (C ≤ 0.08%), and nitrogen (N ≤ 0.05%). This grade boasts a tensile strength of around 620 MPa and a yield strength of 480 MPa, providing an excellent strength-to-weight ratio along with impressive corrosion resistance. It offers moderate ductility and good weldability, ensuring stability and performance in oxidizing and mildly reducing environments, making it perfect for lightweight yet robust structural applications.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

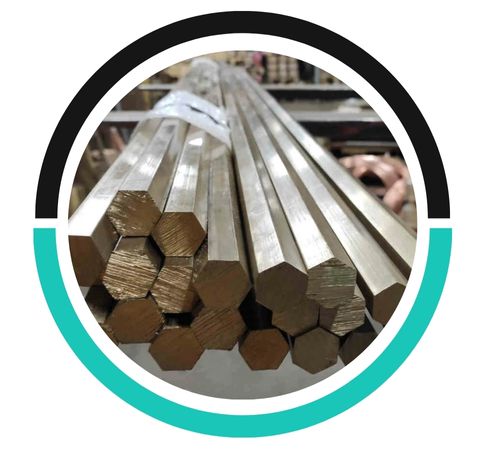

| Hex Bar size : | 2-100mm A/F |

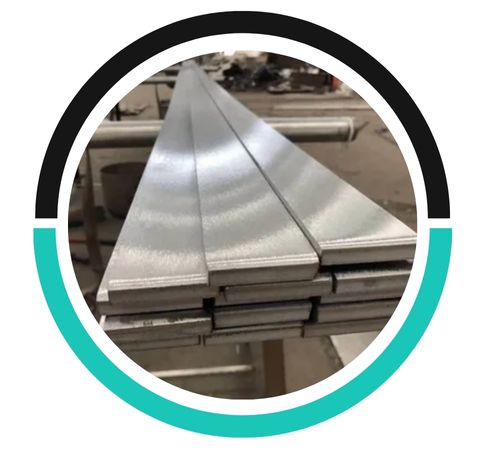

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

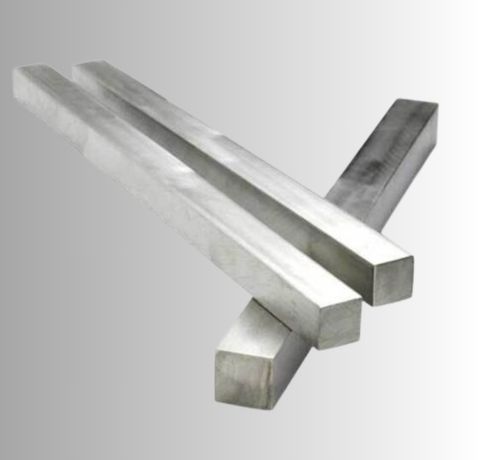

| Square bar size : | 4 to 100mm |

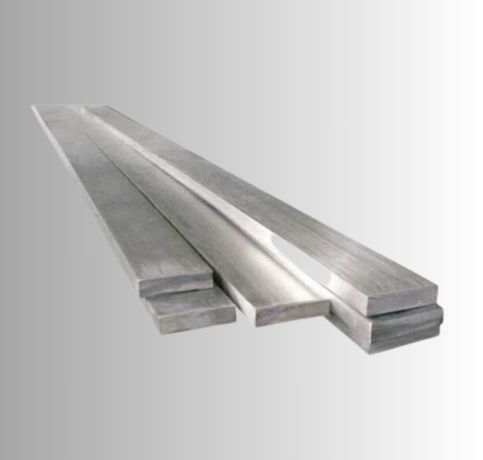

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 3 | 3.7055 | R50550 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 3 | 0..08 max | 0.05 max | 0.35 max | 0.015 max | Bal | 0.30 max |
| Tensile Strength | Reduction of area | Elongation | Hardness |
| 450 | 30 | 18 % | 90 |
| Density | 0.163 lbs/in³ ,(4.51 g/cm³) |
| Mean Coefficient of Thermal Expansion | in/in/°F (mm/m/°C): 70- 212°F (20- 100°C) 4.78 x 10-6(8.6) |
| Thermal Conductivity | BTU-in/h-ft-°F (W/m-°K): At 70°F (21°C): 138 (19.9) |
| Modulus of Elasticity, ksi (MPa) | 15.2 x 10³ (105 x 10³) in tension |
| Melting Point | 3020°F (1660°C) |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |

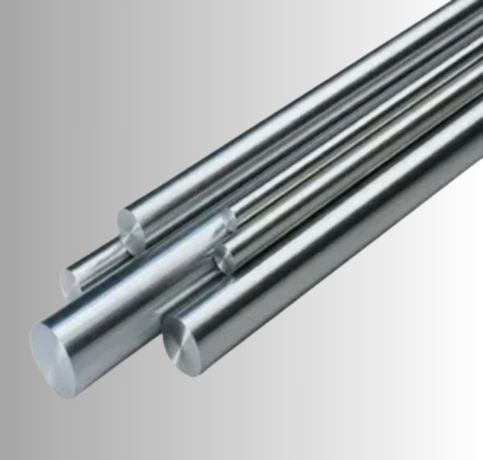

Titanium Grade 3 Round Bars Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, Titanium Grade 3 has excellent corrosion resistance in aggressive environments like seawater, chemicals, and high-temperature settings, making it ideal for marine and chemical processing industries.
Yes, Titanium Grade 3 has good weldability, making it suitable for various applications where welding is required.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@isismetals.com
Titanium Grade 3 Bars and Rods find their way into various industries that demand exceptional strength and corrosion resistance. In aerospace, they’re used in airframe components, fasteners, and engine parts. The chemical processing industry relies on them for heat exchangers, reactor vessels, and piping systems due to their resistance to chlorides and acids. In the marine sector, they’re ideal for offshore and underwater components. Additionally, they’re utilized in medical implants, power generation, and desalination plants, where long-lasting durability, biocompatibility, and reliability under extreme conditions are crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
