Isis Metals stands out as a top-notch manufacturer and supplier located in Manila, Philippines, focusing on high-quality Titanium Grade 8 Bars and Rods tailored for demanding industrial applications. Known for our precision engineering and unwavering commitment to quality, we deliver titanium products that adhere to international standards for strength, corrosion resistance, and durability. Our Titanium Grade 8 Bars and Rods are trusted by various sectors, including aerospace, chemical processing, marine, and medical industries. With cutting-edge manufacturing capabilities and rigorous quality control, Isis Metals guarantees a reliable supply, outstanding performance, and great value for customers both in the Philippines and around the globe.
Titanium Grade 8 Bars and Rods are made up of about 99.2% titanium, with small additions of aluminum (3%) and tin (1.5%) to boost strength and thermal stability. They showcase remarkable corrosion resistance, impressive tensile strength ranging from 690–860 MPa, and a melting point of roughly 1660°C. Weighing in at a density of 4.5 g/cm³, these bars strike a perfect balance between lightness and toughness, making them perfect for challenging environments. Titanium Grade 8 also boasts excellent weldability, formability, and fatigue resistance, ensuring top-notch performance even under high stress and extreme temperatures.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

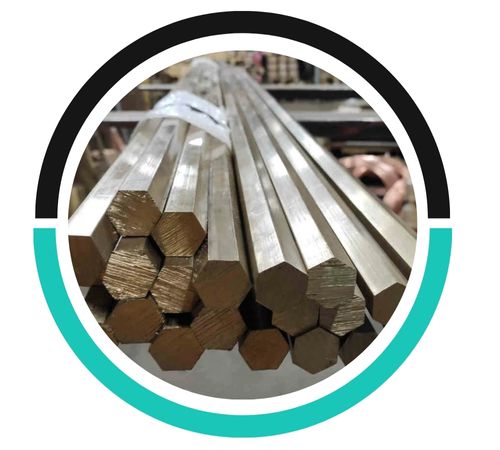

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 8 | – | R54810 |
| Grade | O | N | C | H | Fe | Al | Mo | V |
| 8Al 1Mo 1V | 0.15 | 0.05 | 0.08 | 0.0125 | 0.3 | 7.5-8.5 | 0.75-1.25 | 0.75-1.25 |
| Grade | Tensile strength (MPa) | Yield strength (MPa) | Elongation in 4D (%) | Reduction of area (%) | Hardness (HV) |
| 8Al 1Mo 1V | 1020 | 930 | 10 | 40 | 350 |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@isismetals.com
Titanium Grade 8 Bars and Rods offer high strength, excellent corrosion resistance, and superior performance in high-temperature environments, making them ideal for aerospace and marine applications.
Titanium Grade 8 combines 90% titanium, 6% aluminum, and 4% vanadium, offering enhanced strength and heat resistance compared to other grades, making it suitable for demanding industrial applications.
Titanium Grade 8 Bars and Rods find extensive use in industries that demand strength, lightweight materials, and corrosion resistance. In aerospace, they’re utilized for aircraft frames, landing gear, and fasteners. The marine industry depends on them for ship components, propeller shafts, and offshore equipment that can withstand seawater corrosion. In chemical processing, they’re perfect for heat exchangers, reactor vessels, and piping systems that handle aggressive chemicals. The medical sector also employs them for surgical instruments and orthopedic implants, thanks to their biocompatibility. Their durability and reliability make them a go-to choice across various applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
