Isis Metals is your go-to source for top-notch titanium products right here in Manila, Philippines. We proudly offer **Titanium Grade 11 Bars and Rods**, designed for the toughest industrial applications. This grade is celebrated for its remarkable corrosion resistance, formability, and weldability, making it a standout choice for challenging chemical and marine environments. Grade 11 titanium is a low-alloyed, commercially pure titanium that’s been enhanced with palladium to boost its resistance to corrosion, particularly in harsh acids and chloride-rich settings. At Isis Metals, we provide these bars and rods in a variety of dimensions and finishes, all adhering to international quality standards. They’re perfect for any application that demands strength, durability, and resistance to corrosion.
When it comes to composition, Titanium Grade 11 is a commercially pure titanium, much like Grade 2, but with an added 0.12% to 0.25% of palladium for improved corrosion resistance. It generally contains 0.08% carbon, 0.18% iron, and trace elements of nitrogen, hydrogen, and oxygen. This grade boasts a tensile strength of about 379 MPa (55,000 psi) and a yield strength of around 241 MPa (35,000 psi), along with impressive elongation (around 24%) and toughness. Grade 11 excels in resisting crevice corrosion and pitting, especially in aggressive environments like acidic and chloride-laden conditions, making it a top choice for chemical processing and marine applications.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

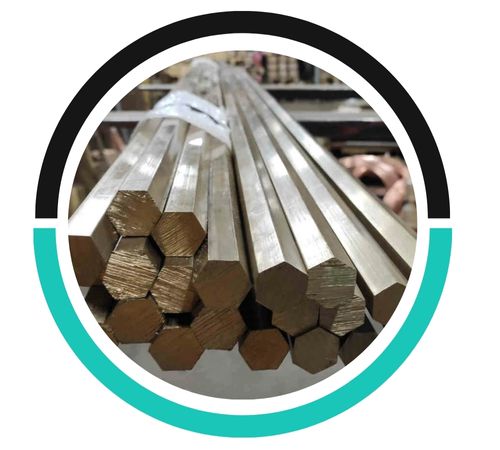

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 11 | 3.7225 | R52250 |
| Grade | C | Fe | N | Ti | H | O |
| Titanium Gr. 11 | 0.08 max | 0.20 max | 0.03 max | Balance | 0.015 max | 0.18 max |
| Density | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.163 lb/in3, (4.51 g/cm3) | 240 | 170 | 24 % |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
|---|---|---|---|---|---|---|---|---|
| Titanium Gr 11 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@isismetals.com
Common titanium grades for bar manufacturing include Grade 1, Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 9, Grade 11, and Grade 12, each offering unique strength and corrosion resistance.
Titanium Grade 11 Bars and Rods find their place in various applications that require both strength and exceptional corrosion resistance in harsh environments. They’re widely utilized in the chemical processing sector for heat exchangers, pressure vessels, and piping systems that deal with acidic or chloride-rich solutions. In marine engineering, Grade 11 is the ideal material for components exposed to challenging conditions, ensuring reliability and longevity.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
