Isis Metals is a well-respected manufacturer and supplier located in Manila, Philippines, focusing on high-performance Titanium Grade 9 Bars and Rods tailored for industrial and engineering needs. Renowned for our precision, quality, and dependability, we offer titanium products that adhere to international standards for strength, corrosion resistance, and durability. Our Titanium Grade 9 Bars and Rods are perfect for demanding sectors like aerospace, marine, chemical processing, and medical industries. With cutting-edge manufacturing techniques and rigorous quality assurance, Isis Metals provides top-notch titanium solutions designed to excel in challenging environments both in the Philippines and around the globe.
Titanium Grade 9 Bars and Rods are made from a titanium alloy that includes 3% aluminum and 2.5% vanadium (Ti-3Al-2.5V), striking a remarkable balance between strength and formability. They boast a tensile strength ranging from 620 to 720 MPa, a density of 4.48 g/cm³, and a melting point of about 1660°C. Grade 9 is known for its exceptional corrosion resistance, particularly in oxidizing and marine settings, along with good weldability and moderate ductility. These characteristics make Titanium Grade 9 a versatile and lightweight choice for high-performance applications that demand both durability and ease of fabrication.
| Grade | GRADE 9 TITANIUM ROUND BAR |
|---|---|

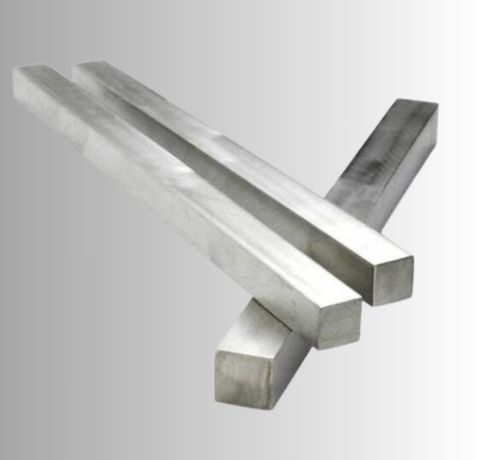

| Grade 9 Titanium Square bar size | 4 to 100mm |
| Titanium Grade 9 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

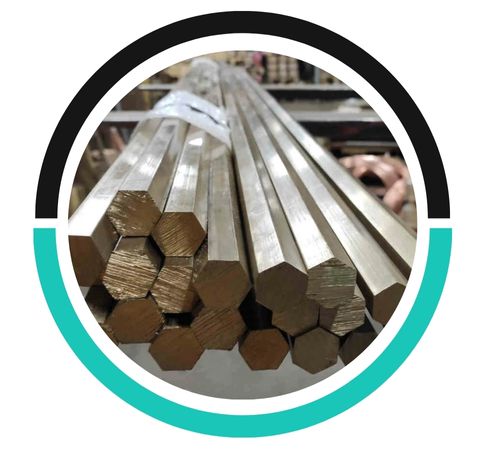

| Grade 9 Titanium Alloy Hex Bar size | 2-100mm A/F |
| Grade 9 Titanium Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

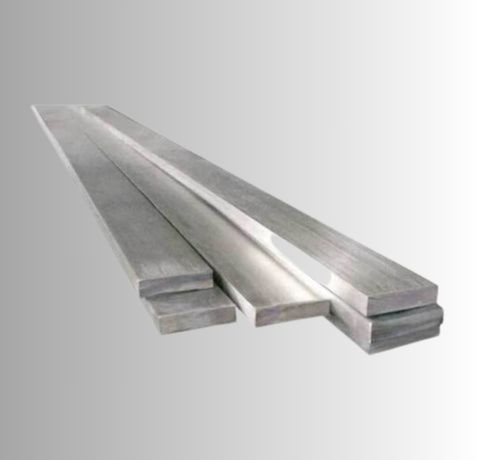

| Titanium Grade 9 Rectangles Size | 33 x 30mm to 295 x 1066mm |

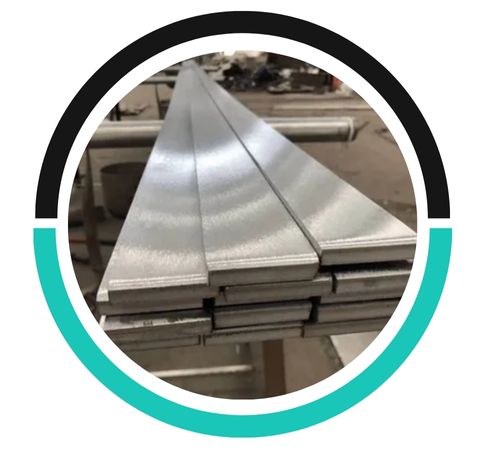

| Grade 9 Titanium Alloy Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Grade 9 Titanium Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Titanium Grade 9 Section | 3.0 to 12.0mm thickness |

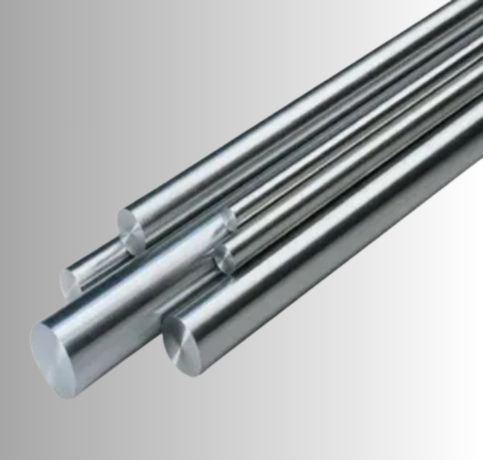

| Grade 9 Titanium Alloy Round bar size | Diameter: 3-~800mm |
| Grade 9 Titanium Billet Size | 1/2″ to 495mm Diameter |
| Titanium Grade 9 Round Bar Standard Dimensions | Diameter / Height: |
| Grade 9 Titanium Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Titanium Grade 9 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Grade 9 Titanium Alloy Technique | Grade 9 Titanium Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Grade 9 Titanium Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |

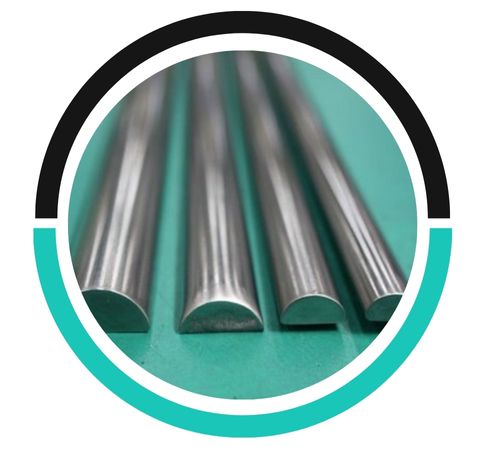

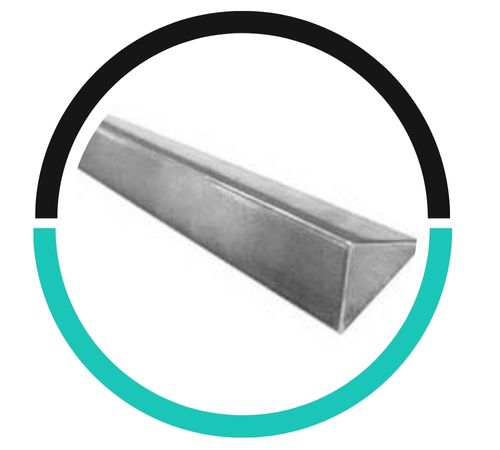

| Form | Grade 9 Titanium Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Grade 9 Titanium Round bar conforms to NACE MR0175/ISO 15156 | |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 9 | 3.7195 | R56320 |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
| Titanium Gr 9 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 620 | 520 | 15 % |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.48 g/cc | 0.162 lb/in³ |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |

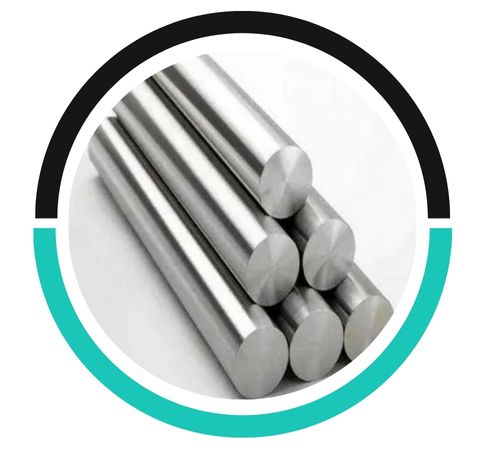

| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Grade 9 Titanium Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@isismetals.com
Yes, Titanium Grade 9 Bars and Rods are suitable for hygienic and sanitary applications due to their excellent corrosion resistance, non-reactivity, and ability to withstand high temperatures, ensuring safety and durability.
Titanium Grade 9 Bars and Rods find extensive use across various industries where strength, corrosion resistance, and weight reduction are crucial. In aerospace, they are employed in hydraulic tubing, aircraft frames, and engine components. The marine industry uses them for propeller shafts, offshore equipment, and seawater systems. In chemical processing, they are perfect for heat exchangers, condensers, and piping that face corrosive conditions. Additionally, they are utilized in medical implants, bicycle frames, and sporting goods due to their biocompatibility and lightweight nature. Their outstanding performance makes them a go-to choice for demanding applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
