Isis Metals, a well-respected name in high-performance materials based in Manila, Philippines, proudly offers top-notch **Titanium Grade 6 Bars and Rods** tailored for rigorous engineering and industrial needs. Known as Ti-5Al-2.5Sn, Grade 6 titanium strikes a remarkable balance between strength, corrosion resistance, and thermal stability. It’s particularly sought after in high-temperature and high-stress settings, making it a go-to choice for the aerospace, marine, and power generation industries. With a variety of sizes and finishes available, Isis Metals guarantees precision and traceability of materials. Their commitment to quality and responsive service makes them a dependable partner for industries in need of robust, lightweight, and heat-resistant titanium solutions.
Titanium Grade 6 (Ti-5Al-2.5Sn) is an alpha alloy that consists of 5% aluminum and 2.5% tin, providing exceptional weldability, high-temperature strength, and corrosion resistance. It boasts a typical tensile strength of 758 MPa (110,000 psi) and a yield strength of around 690 MPa (100,000 psi). Grade 6 maintains its structural integrity at temperatures reaching up to 400°C, making it perfect for high-temperature applications. Additionally, it shows impressive creep resistance, good oxidation resistance, and is easier to weld compared to many other titanium alloys. This unique composition makes it ideal for aerospace and marine applications where durability and heat performance are essential.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

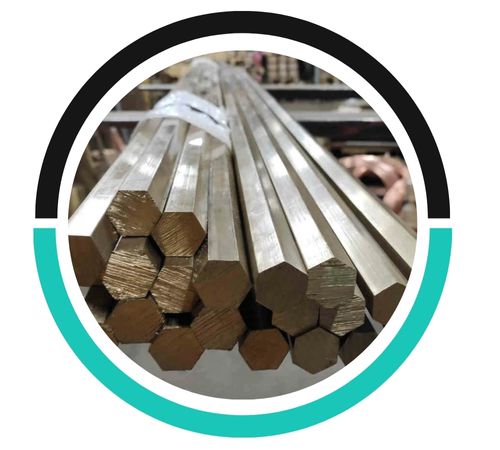

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 6 | 3.7114 | R54520 |
| Grade | C | Fe | N | Ti | H | O | Al | Sn |
| Titanium Gr. 6 | .08 max | 0.50 max | .05 max | Balance | .0175 – .020 | .20 max | 4.0 – 6.0 | 2.0 – 3.0 |
| Element | Min.Tensile(KSI) | Min.Yield(KSI) | Hardness | Tensile Modulus | Poisson’s Ratio |
| Ti Grade 6 | 50 | 40 | 14.9 | 103 GPa | 0.34-0.10 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 6 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@isismetals.com
Titanium Grade 6 Bars and Rods provide excellent strength-to-weight ratio, outstanding corrosion resistance, high-temperature stability, and good formability, making them ideal for high-performance applications.
Titanium Grade 6 Bars and Rods offer superior strength, corrosion resistance, and weldability, along with excellent performance in high-temperature and aggressive environments, making them suitable for critical industrial applications.
Titanium Grade 6 Bars and Rods find extensive use in aerospace and marine sectors that demand high strength and thermal resistance. In aerospace, they are utilized in engine casings, airframe components, and ducting systems that face elevated temperatures. In marine settings, they are employed in high-performance shafts, fasteners, and structural supports.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
